Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

22 part groups · 4 illustrations

Illustrations

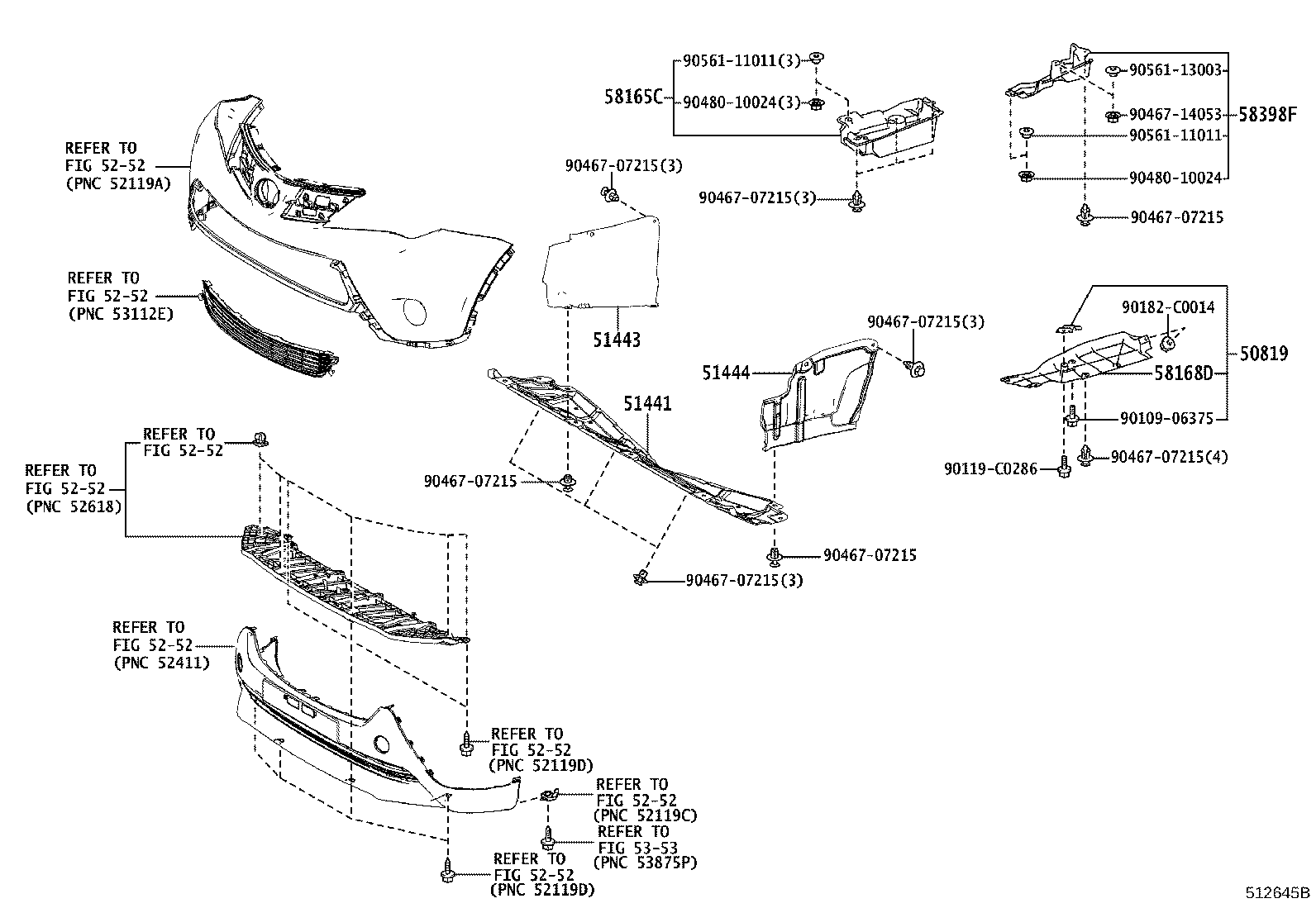

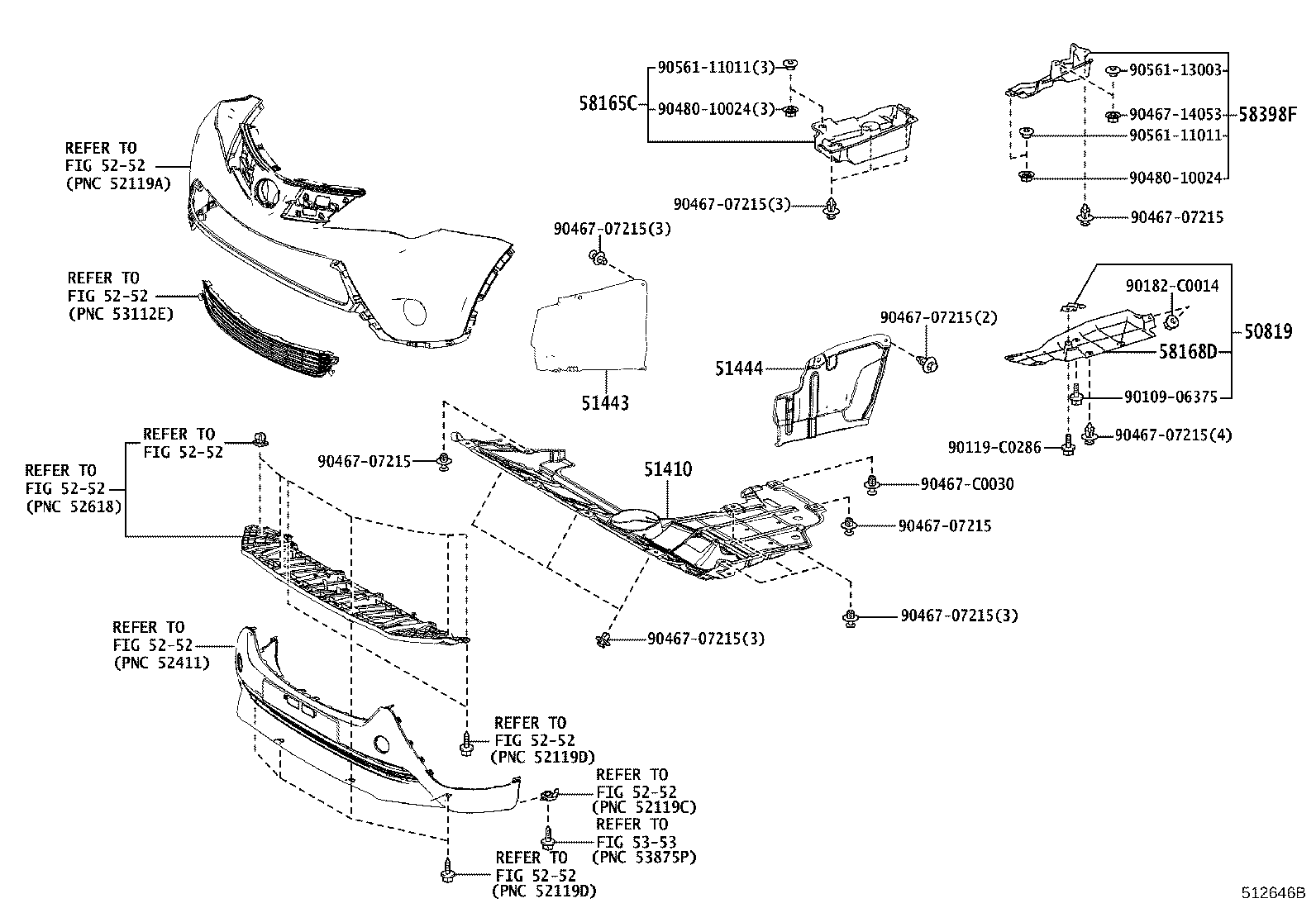

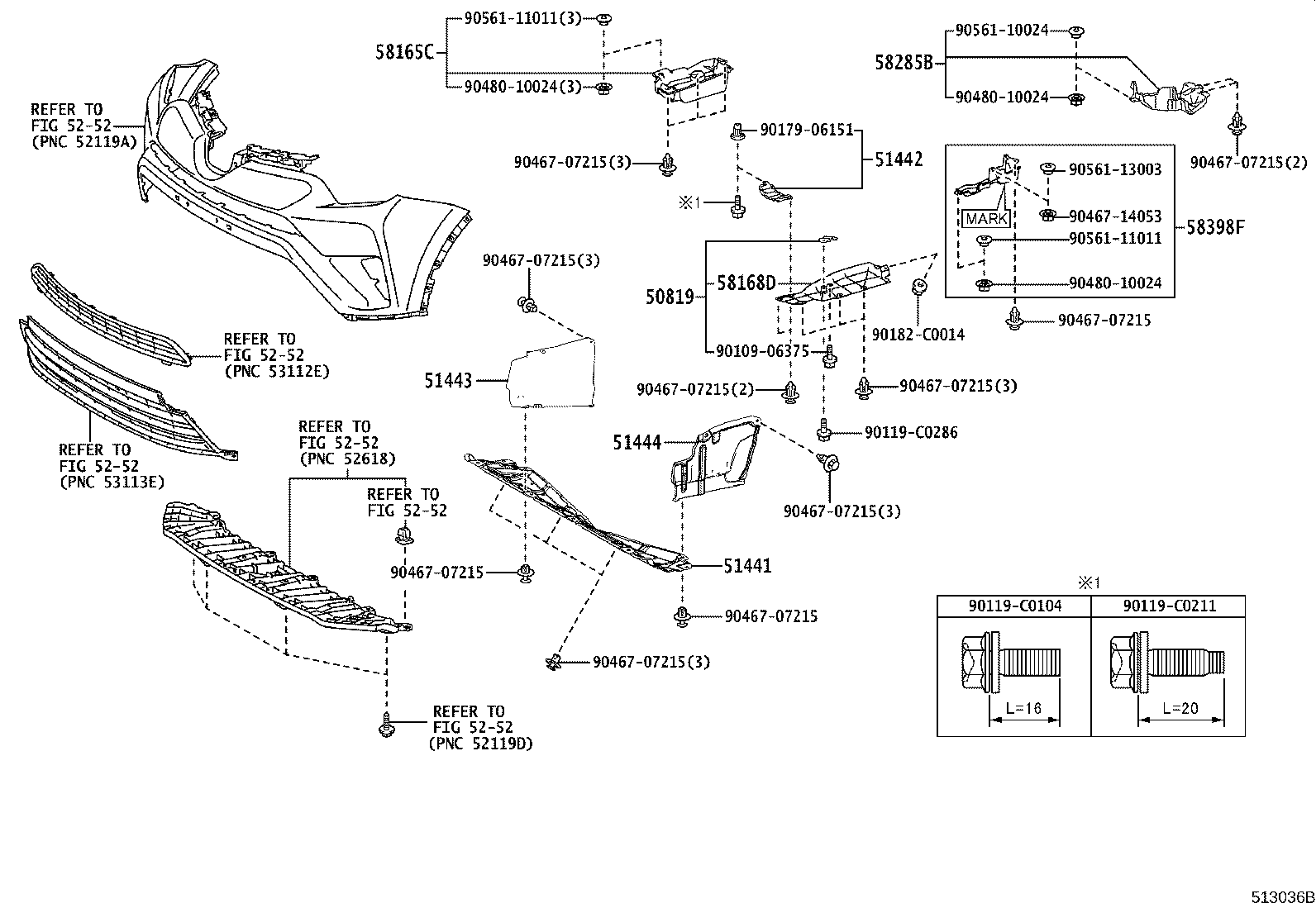

Figure 512644B 512644B 2013-08 → — Figure 512646B 512646B 2013-08 → 2016-07 Figure 512645B 512645B 2013-08 → 2016-07 Figure 513036B 513036B 2016-07 → —

Part groups

PNCDescription
50819 Cover, Front Floor
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51410 Cover Assy, Engine Under, NO.1
51425B Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
52203A Cushion Sub-assy, Body Mounting, Rear Upper
52255A Brace, Front Suspension Member, Front RH
52257A Brace, Front Suspension Member, Rear RH
52258B Brace, Front Suspension Member, Rear LH
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58168D Cover, Front Floor, Center LH
58285B Cover, Center Floor Hole
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
