Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

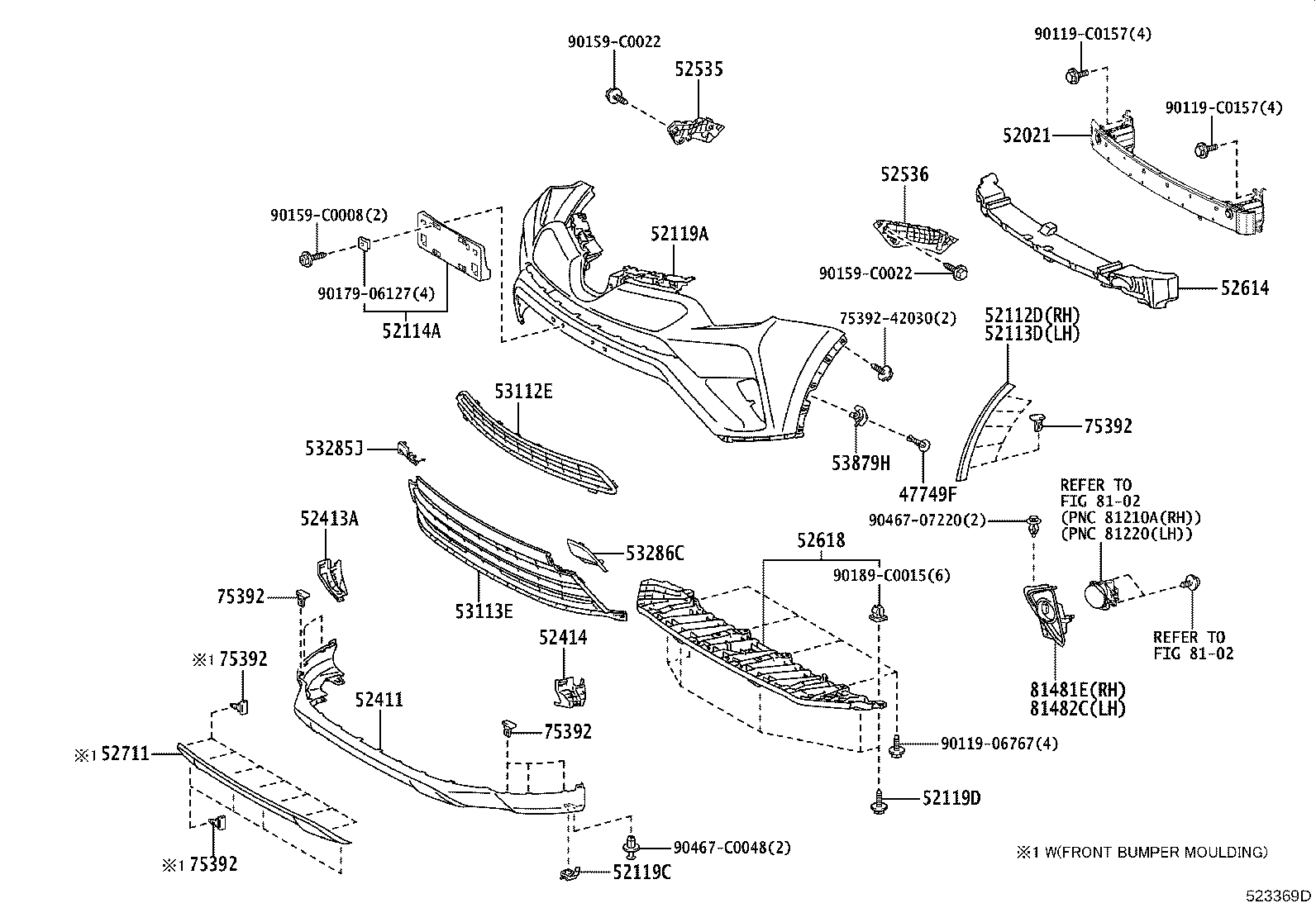

Front Bumper & Bumper Stay
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52119D | Screw, NO.1 |
| 52161T | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52413A | Pad, Front Bumper Guard, RH |
| 52414 | Pad, Front Bumper Guard, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535D | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52614 | Absorber, Front Bumper Energy, NO.2 |
| 52618 | Absorber, Front Bumper, Lower |
| 52711 | Moulding, Front Bumper |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113E | Grille, Radiator, Lower NO.2 |
| 53119E | Protector, Radiator Grille |
| 53127A | Grille, Radiator, Lower RH |
| 53128A | Grille, Radiator, Lower LH |
| 53285J | Cover, Front Bumper Arm Hole, RH |
| 53286C | Cover, Front Bumper Arm Hole, LH |
| 53384C | Cushion, Hood, Center |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
