Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 2 illustrations

Illustrations

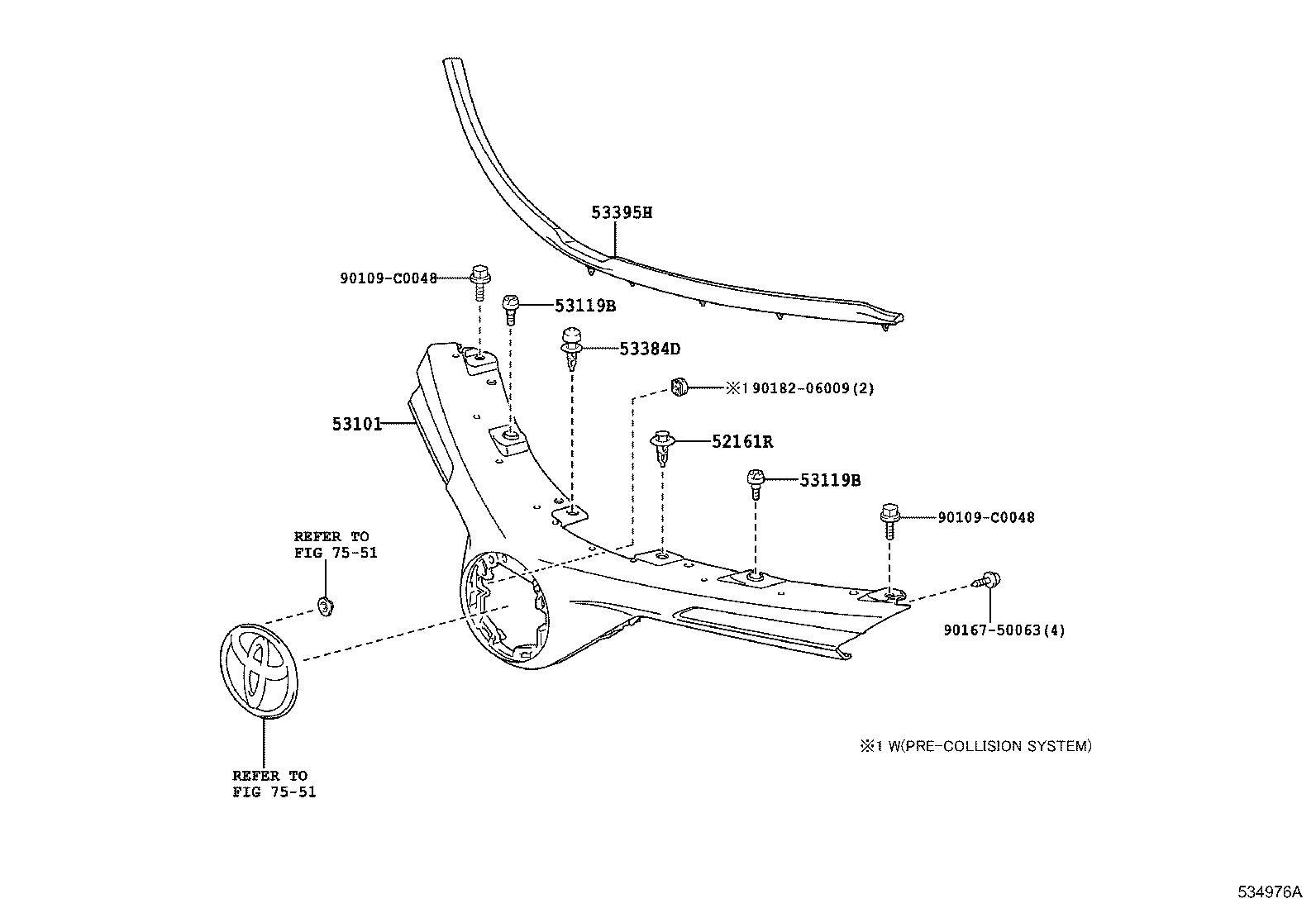

Figure 534048A 534048A 2013-08 → 2016-07 Figure 534976A 534976A 2016-07 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53105A Garnish Sub-assy, Radiator Grille, RH
53106C Garnish Sub-assy, Radiator Grille, LH
53119B Protector, Radiator Grille
53384D Cushion, Hood, Center
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
