Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01

Front Fender Apron & Dash Panel

41 part groups · 4 illustrations

PNC	Description

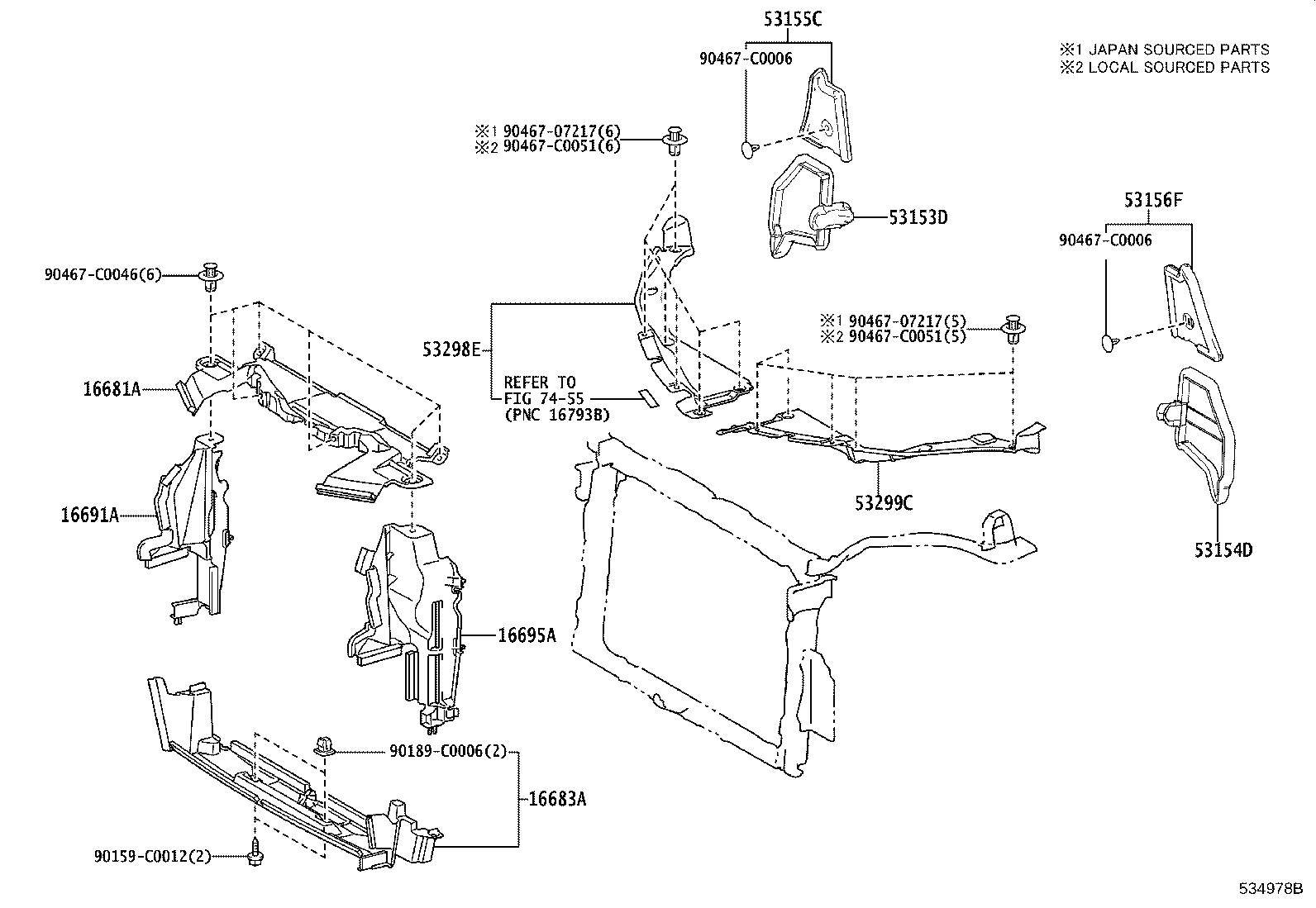

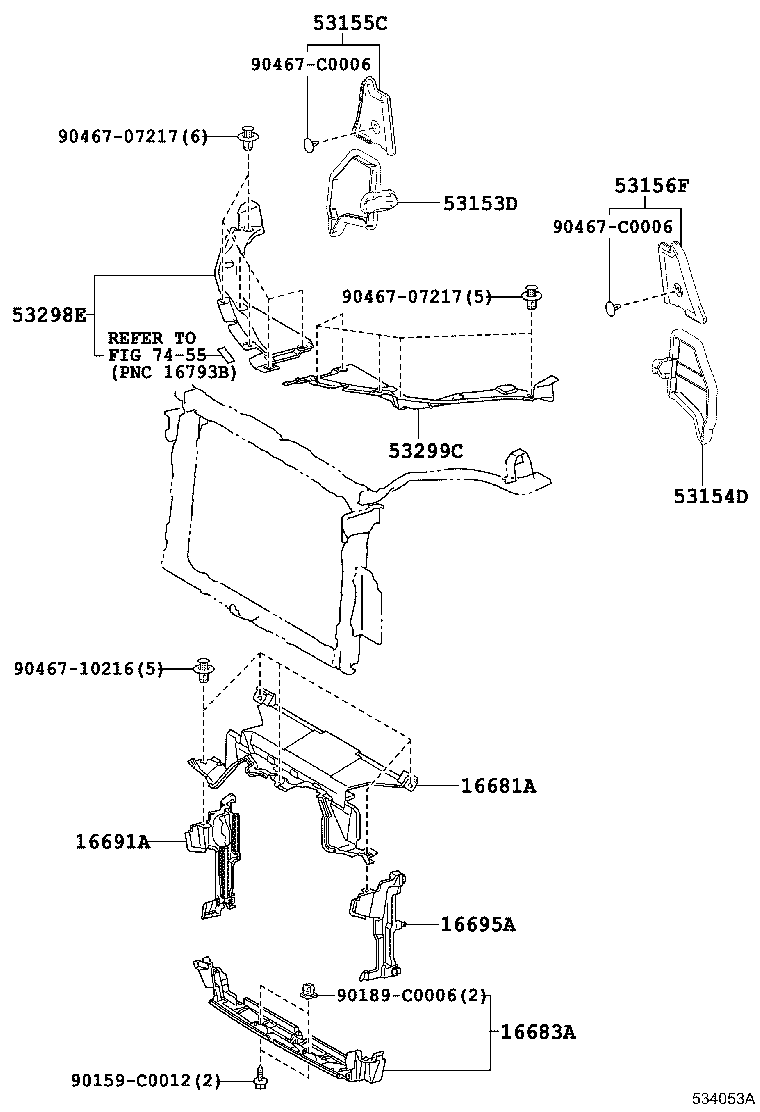

16681A	Plate, Radiator Upper Air Guide
16683A	Plate, Radiator Lower Air Guide
16691A	Plate, Radiator Side Air Guide, Front RH
16695A	Plate, Radiator Side Air Guide, Front LH
52021B	Reinforcement Sub-assy, Front Bumper
52129C	Arm, Front Bumper, Upper NO.2 RH
52139C	Arm, Front Bumper, Upper NO.2 LH
52144J	Stay, Front Bumper, Center
53028A	Support Sub-assy, Radiator, Lower RH
53029A	Support Sub-assy, Radiator, Lower LH
53153D	Guide, Radiator Grille Side Air, RH
53154D	Guide, Radiator Grille Side Air, LH
53155C	Seal, Radiator Grille, NO.1
53156F	Seal, Radiator Grille, NO.2
53187A	Stay, Radiator Support, RH
53188B	Stay, Radiator Support, LH
53202	Support Sub-assy, Radiator, RH
53203	Support Sub-assy, Radiator, LH
53208A	Support Sub-assy, Hood Lock
53209B	Brace Sub-assy, Hood Lock Support
53211C	Support, Radiator, RH
53212C	Support, Radiator, LH
53298E	Seal, Radiator Side, RH
53299C	Seal, Radiator Side, LH

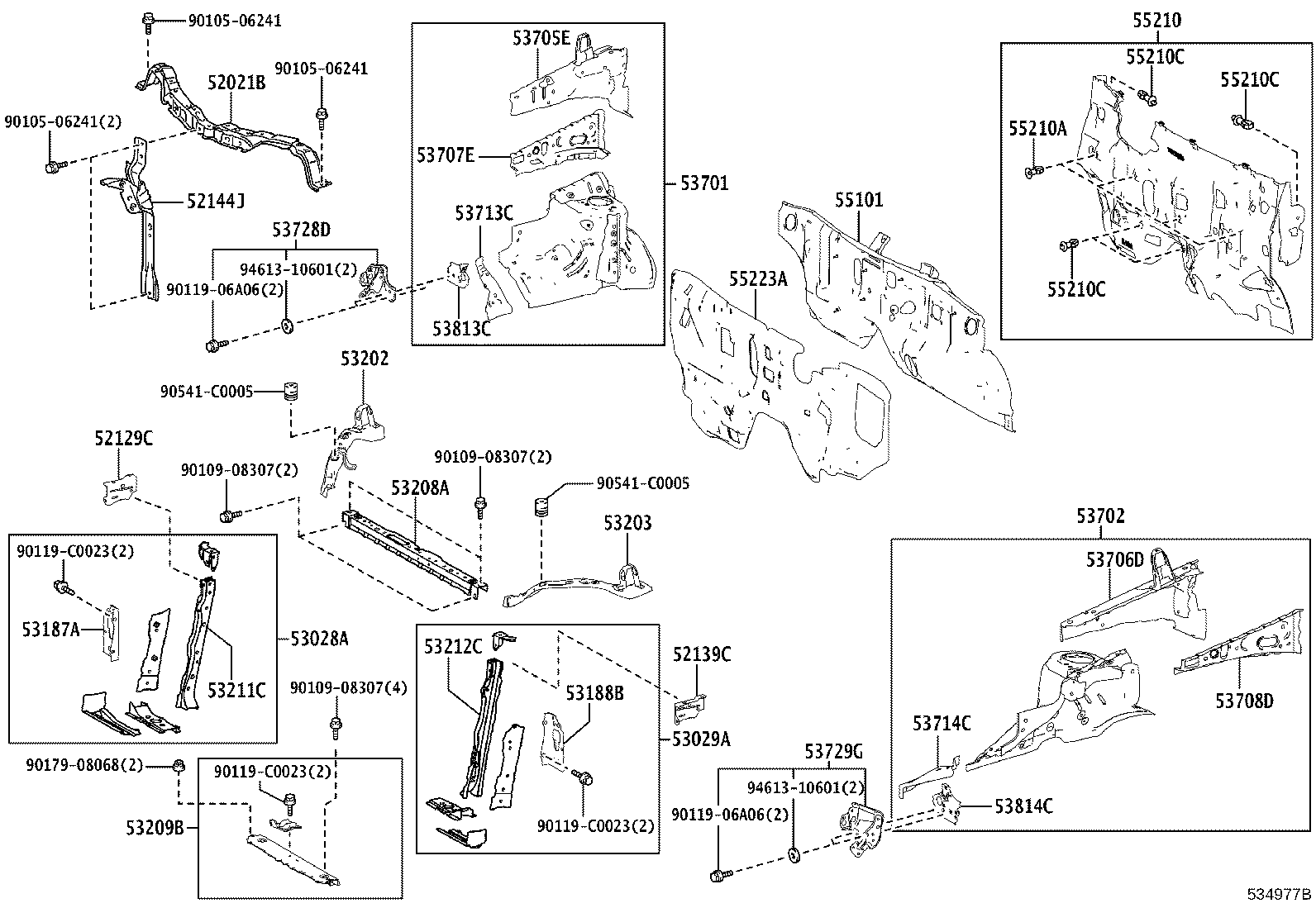

53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53705E	Member Sub-assy, Front Apron TO Cowl Side, RH
53706D	Member Sub-assy, Front Apron TO Cowl Side, LH
53707E	Apron Sub-assy, Fender Side, RH
53708D	Apron Sub-assy, Fender Side, LH
53713C	Extension, Front Fender Apron, Front RH
53714C	Extension, Front Fender Apron, Front LH
53728D	Bracket, Fender Apron, RH
53729G	Bracket, Fender Apron, LH
53813C	Extension, Front Fender, RH
53814C	Extension, Front Fender, LH
55101	Panel Sub-assy, Dash
55210	Insulator Assy, Dash Panel
55210A	Clip
55210C	Clip
55223A	Insulator, Dash Panel, Outer
