Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 2 illustrations

Illustrations

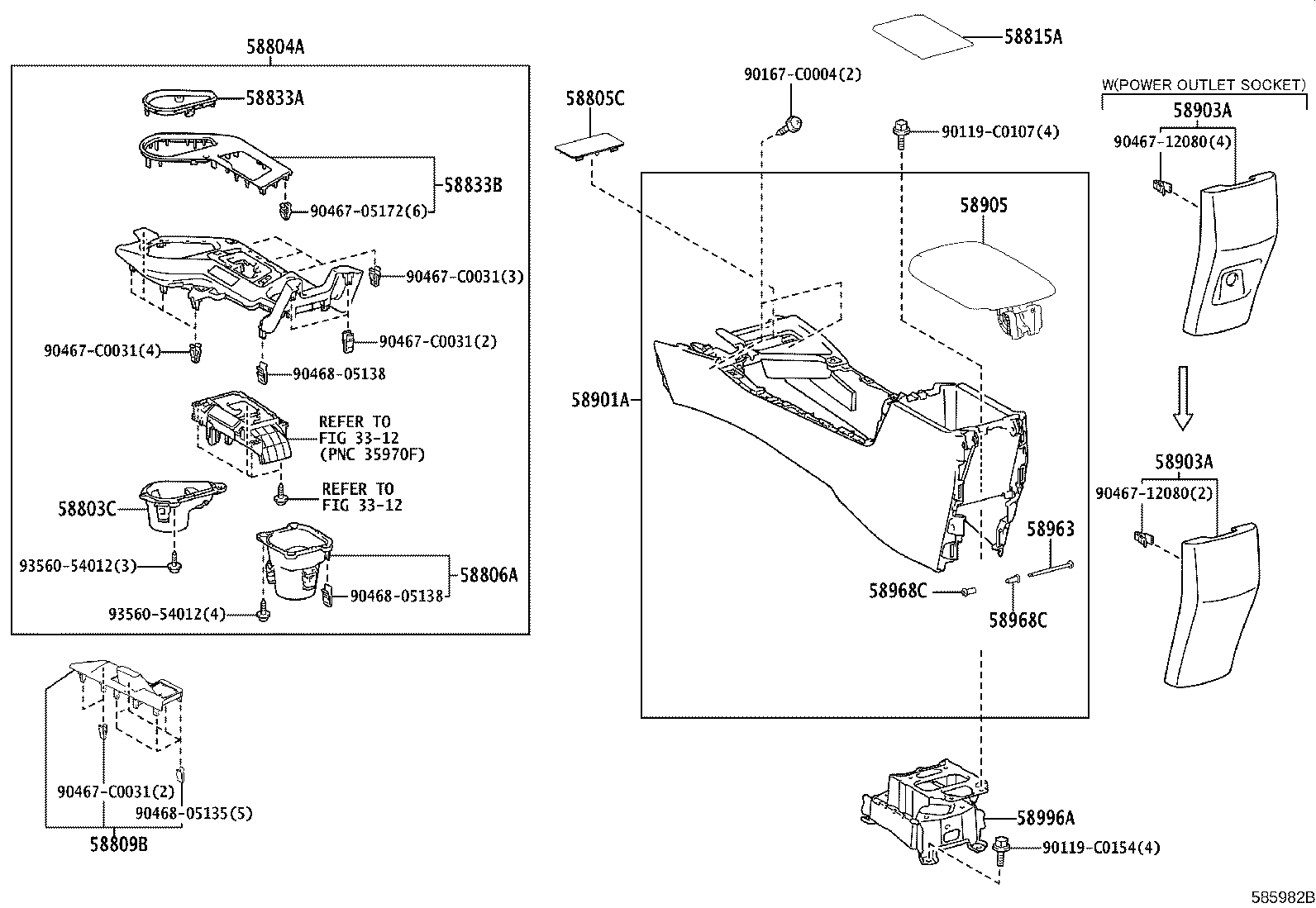

Figure 584934B 584934B 2013-08 → 2016-07 Figure 585982B 585982B 2016-07 → —

Part groups

PNCDescription
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58806A Pocket Sub-assy, Console Box
58808 Cover Sub-assy, Shifting Hole
58809B Cover Sub-assy, Parking Brake Hole
58815A Carpet, Console Box
58833A Cover, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58963 Shaft, Console Compartment Door Hinge
58968C Shim, Console Compartment Door Stopper
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
