Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01
Rear Door Panel & Glass
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003A | Plug, Hole(FOR REAR DOOR PANEL) |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |

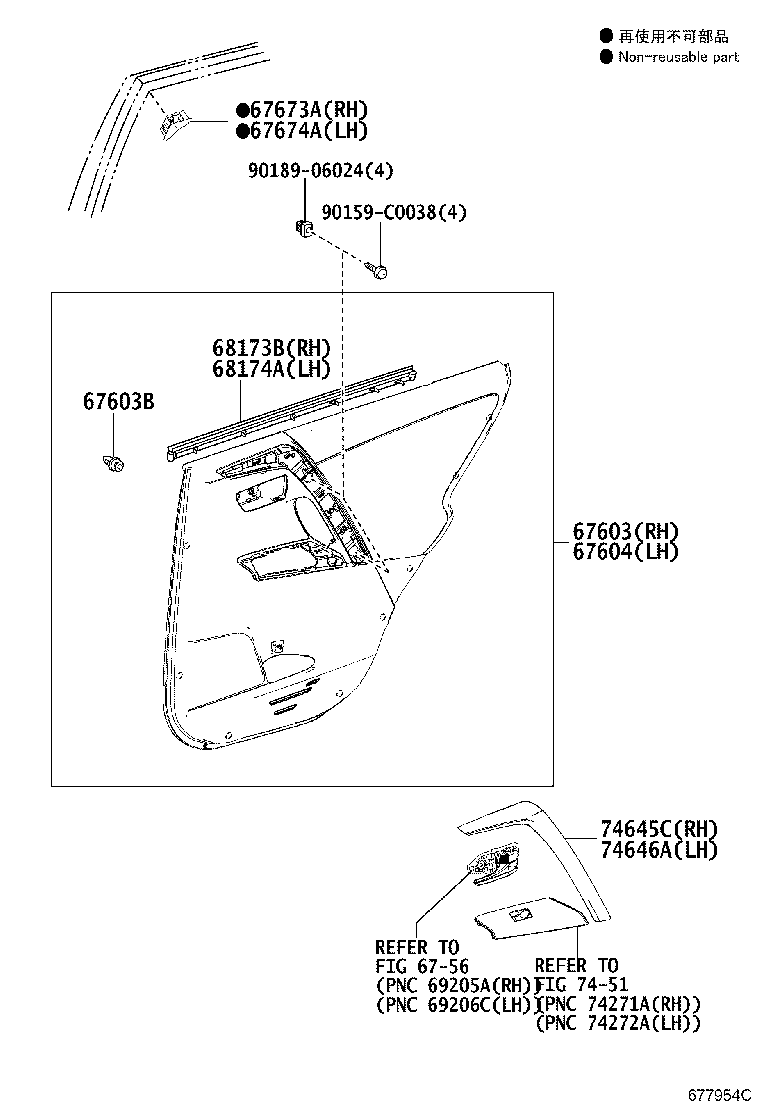

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124C | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630 | Check Assy, Rear Door |
| 74645C | Cover, Door Assist Grip, RH |
| 74646A | Cover, Door Assist Grip, LH |
| 75977H | Stripe, Rear Door Outside, Lower RH |
| 75978H | Stripe, Rear Door Outside, Lower LH |
| 75987F | Stripe, Rear Door, Outside, RH |
| 75988E | Stripe, Rear Door, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
