Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

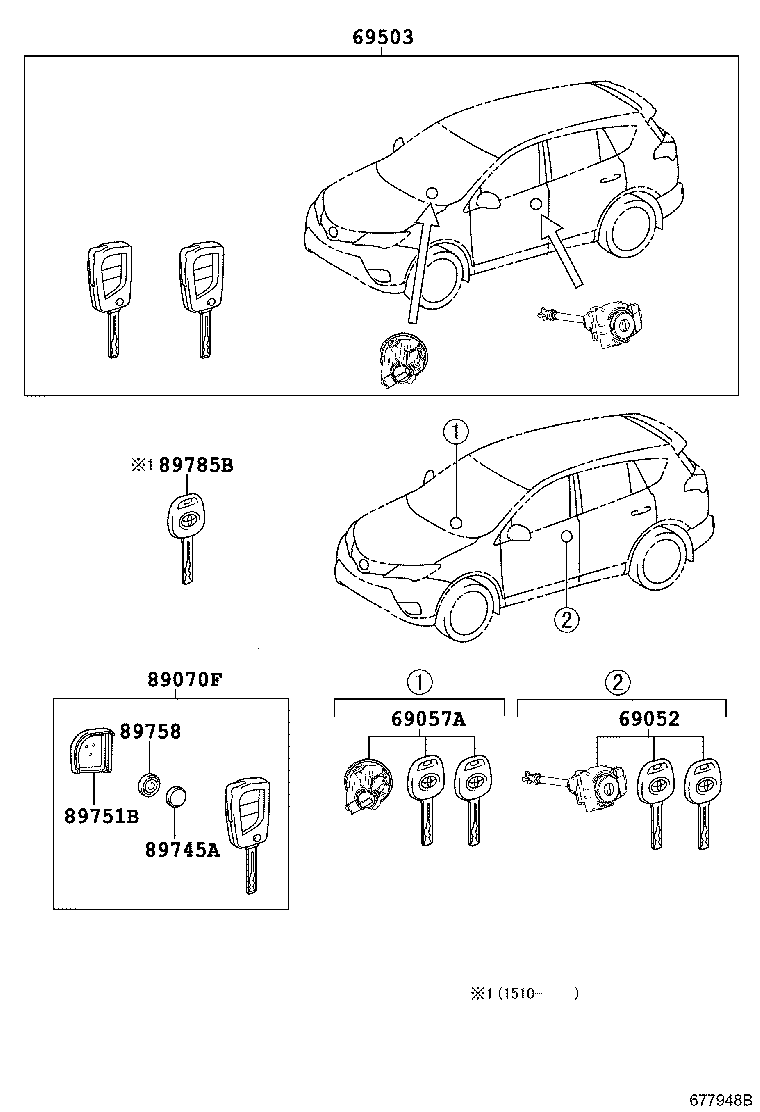

Lock Cylinder Set
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89072A | Housing Set, Door Control Transmitter |
| 89745A | Battery, Transmitter |
| 89745C | Battery, Transmitter |
| 89751B | Cover, Transmitter Housing |
| 89758 | Packing, Door Control Transmitter |
| 89785B | Transmitter, Transponder Key Master |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
