Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01
Seat & Seat Track
86 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71650B | Spring Assy, Rear Seat Cushion, RH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71660B | Spring Assy, Rear Seat Cushion, LH |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71692A | Cover, Rear NO.3 Seat Lock, LH |
| 71693 | Cover, Rear Seat Cushion Hinge, Lower RH |
| 71694 | Cover, Rear Seat Cushion Hinge, Lower LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71825B | Moulding, Rear Seat Cushion, RH |
| 71826B | Moulding, Rear Seat Cushion, LH |
| 71828B | Moulding, Rear Seat Cushion, Rear RH |
| 71829B | Moulding, Rear Seat Cushion, Rear LH |
| 71845D | Cap, Rear Seat Cover, RH |
| 71846B | Cap, Rear Seatback Board, NO.1 |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71849A | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |

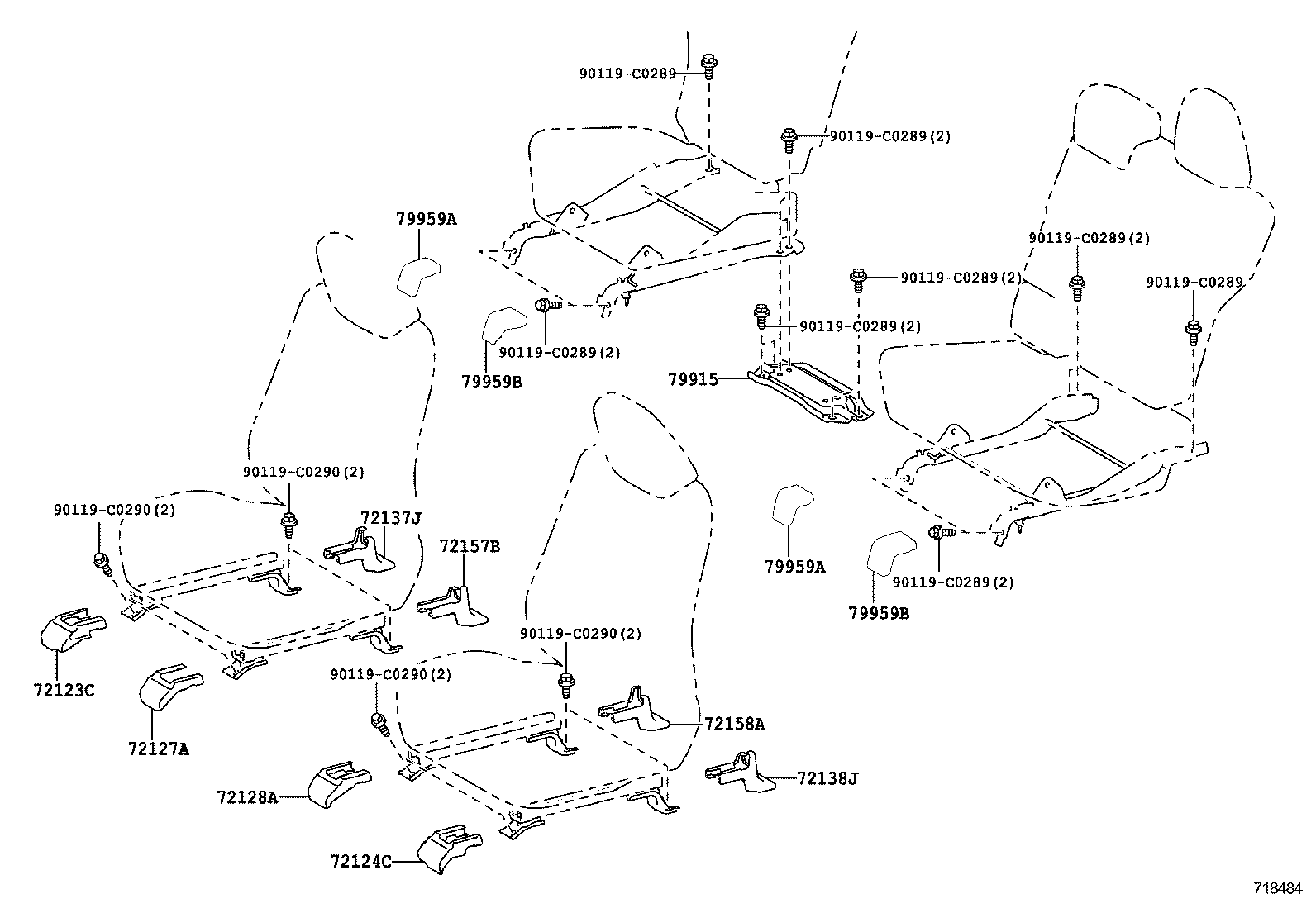

| 72123C | Cover, Seat Track Bracket, Outer Front RH |
| 72124C | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157B | Cover, Rear Seat Track Bracket, Inner RH |
| 72158A | Cover, Rear Seat Track Bracket, Inner LH |
| 72380 | Cable Assy, Seat Adjuster Control, NO.2 |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72526E | Handle, Reclining Adjuster Release, LH |
| 72551A | Cover, Reclining Hinge |
| 72552 | Cover, Reclining Hinge, NO.2 |
| 72552E | Cover, Reclining Hinge, LH |
| 72573 | Lever, Reclining Control, RH |
| 72574 | Lever, Reclining Control, LH |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72869 | Cover, Center Armrest Hinge, LH |
| 72995B | Cover, NO.1 Seat Cushion, RH |
| 72996 | Cover, Rear Seatback, RH |
| 72997 | Cover, Rear Seatback, LH |
| 72998B | Cover, Rear Seat Cushion, LH |
| 73905 | Airbag Sub-assy, Front Seat, RH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 79131A | Leg, NO.1 Seat, Front RH |
| 79132B | Leg, NO.1 Seat, Front LH |
| 79915 | Bracket, Seat Leg |
| 79959A | Cover, Rear Seat Leg, RH |
| 79959B | Cover, Rear Seat Leg, LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
