Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 2 illustrations

Illustrations

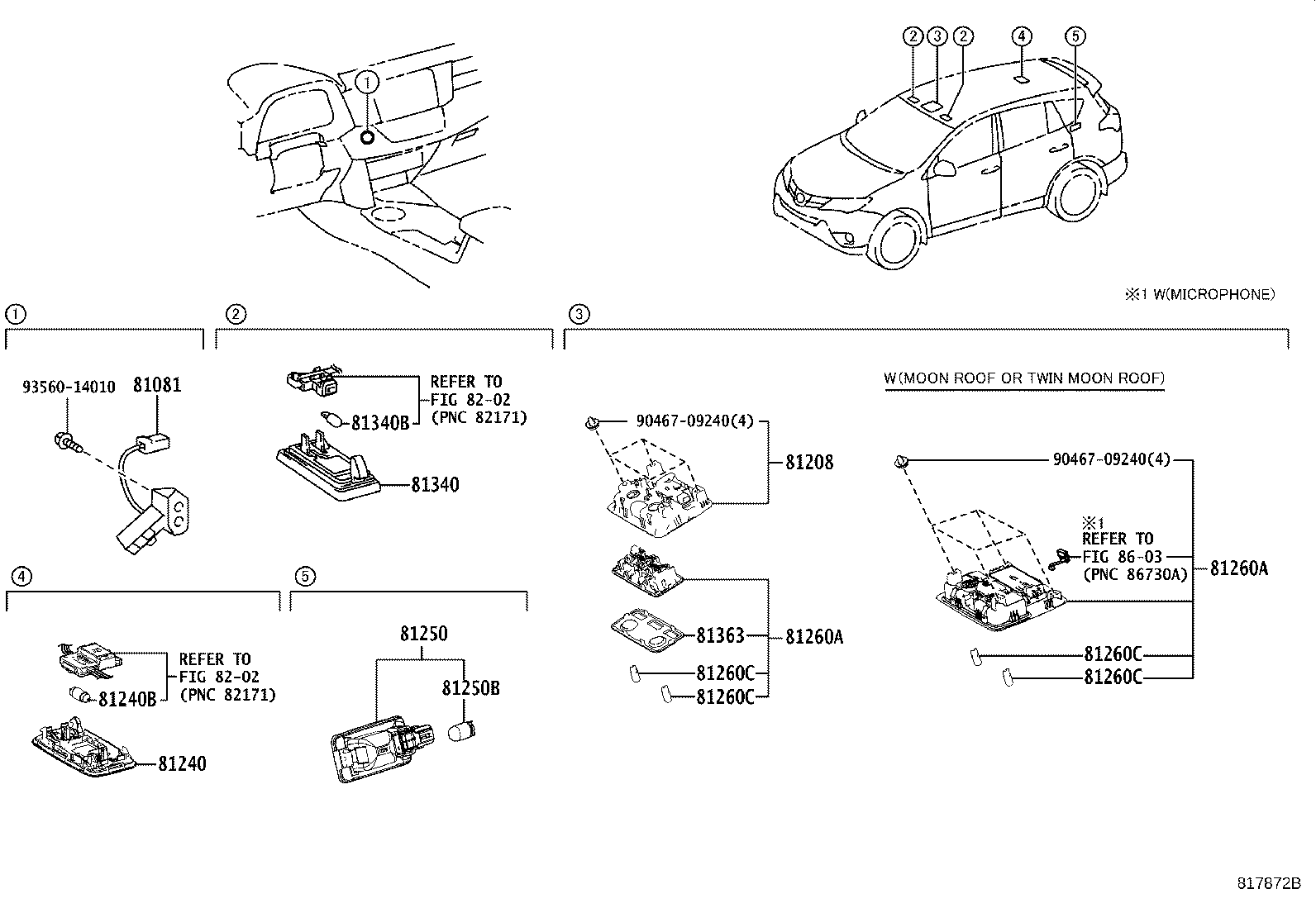

Figure 816655B 816655B 2013-08 → 2016-07 Figure 817872B 817872B 2016-07 → —

Part groups

PNCDescription
81080K Lamp Assy, Console Box Illumination
81081 Lamp Sub-assy, Interior Illumination
81208 Lamp Sub-assy, Map
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81363 Lens, Room Lamp, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
