Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

63 part groups · 13 illustrations

Illustrations

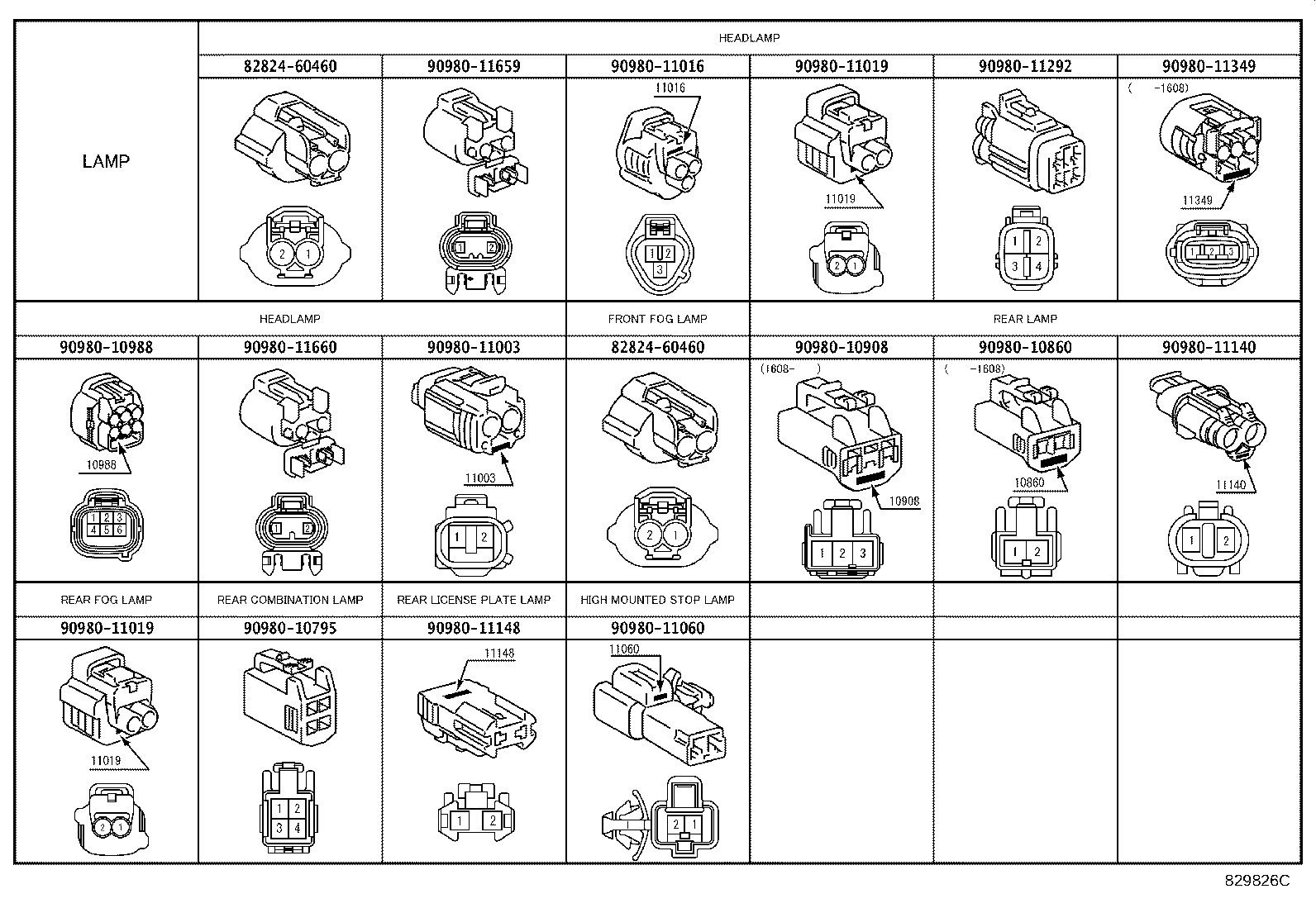

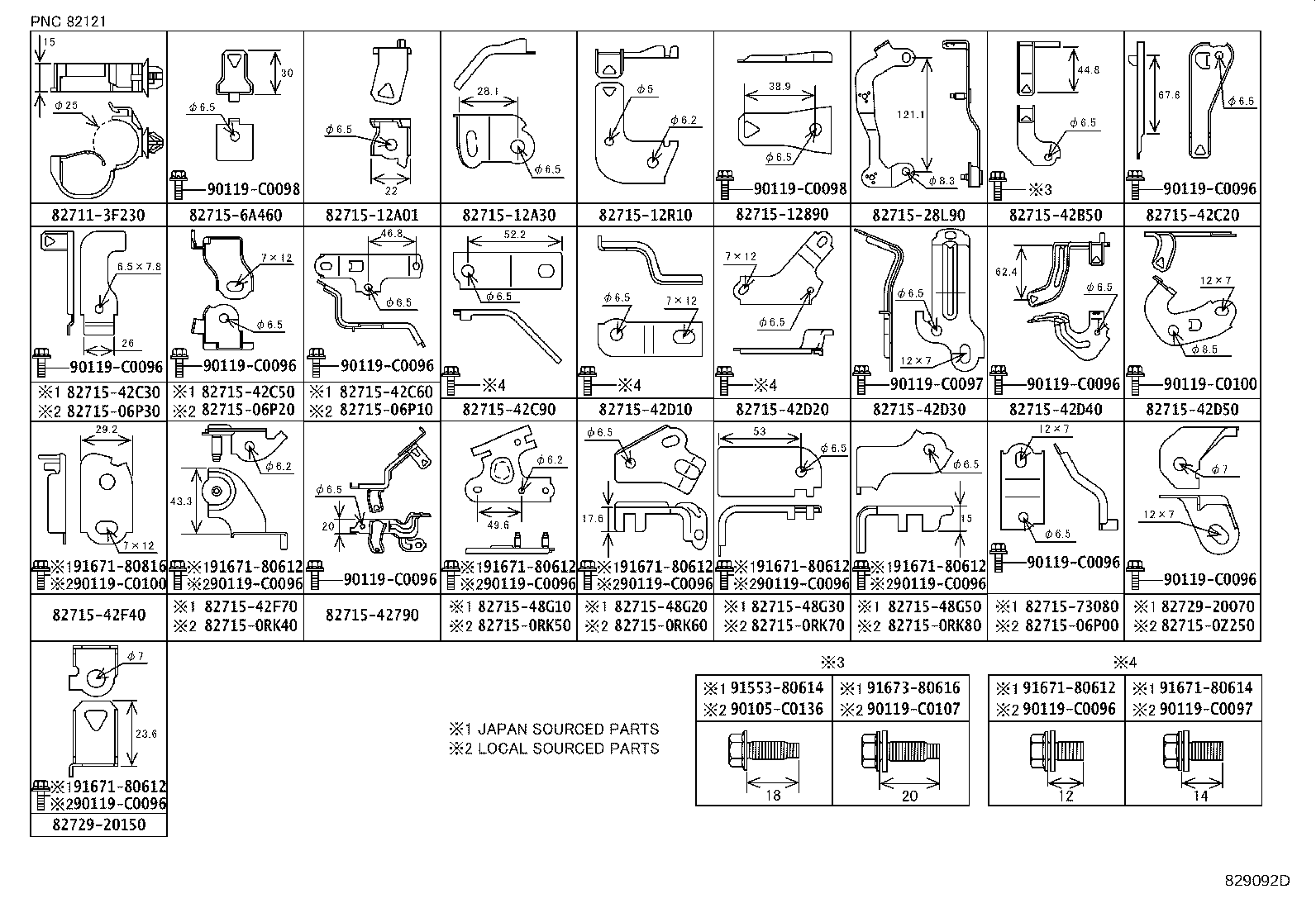

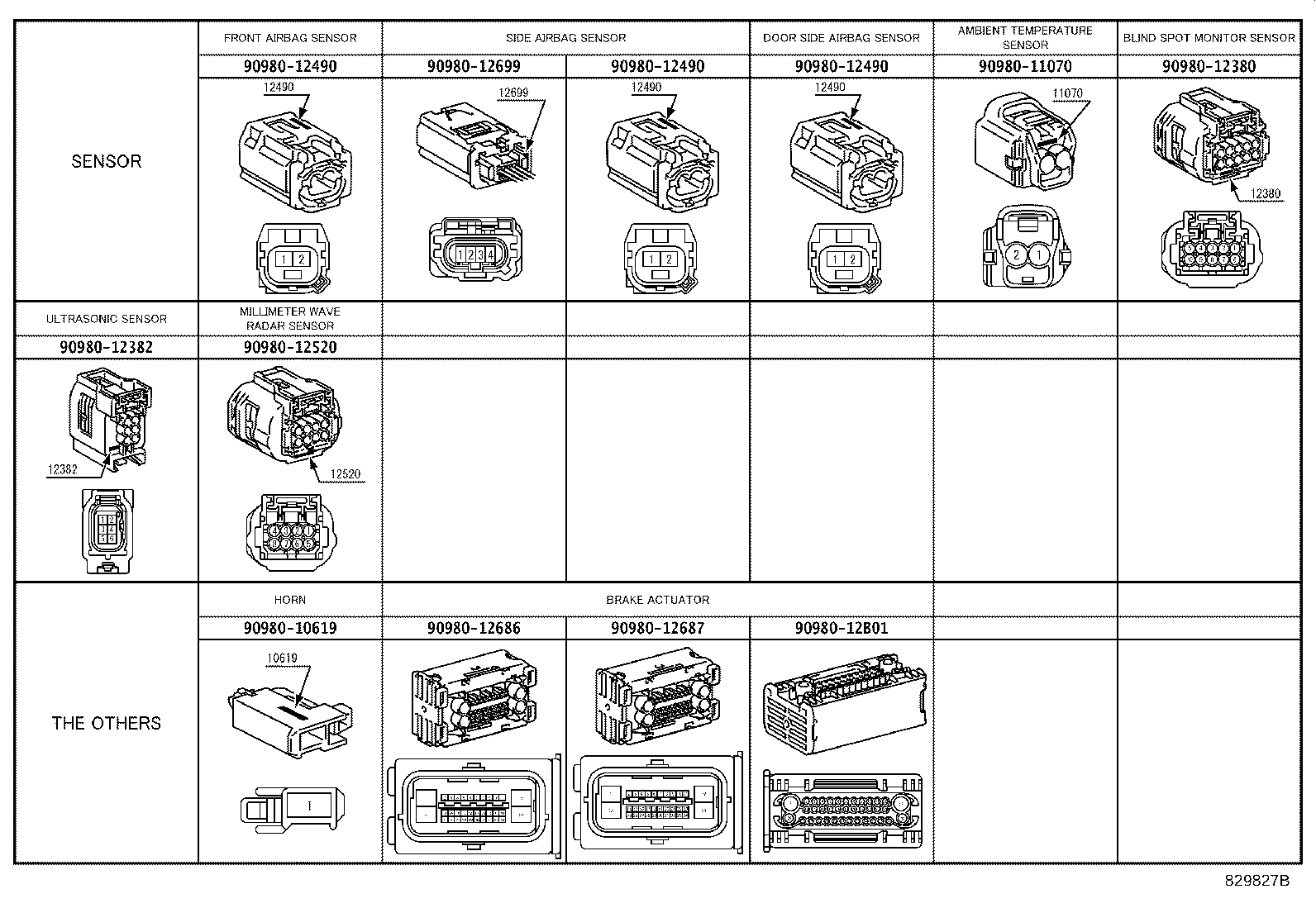

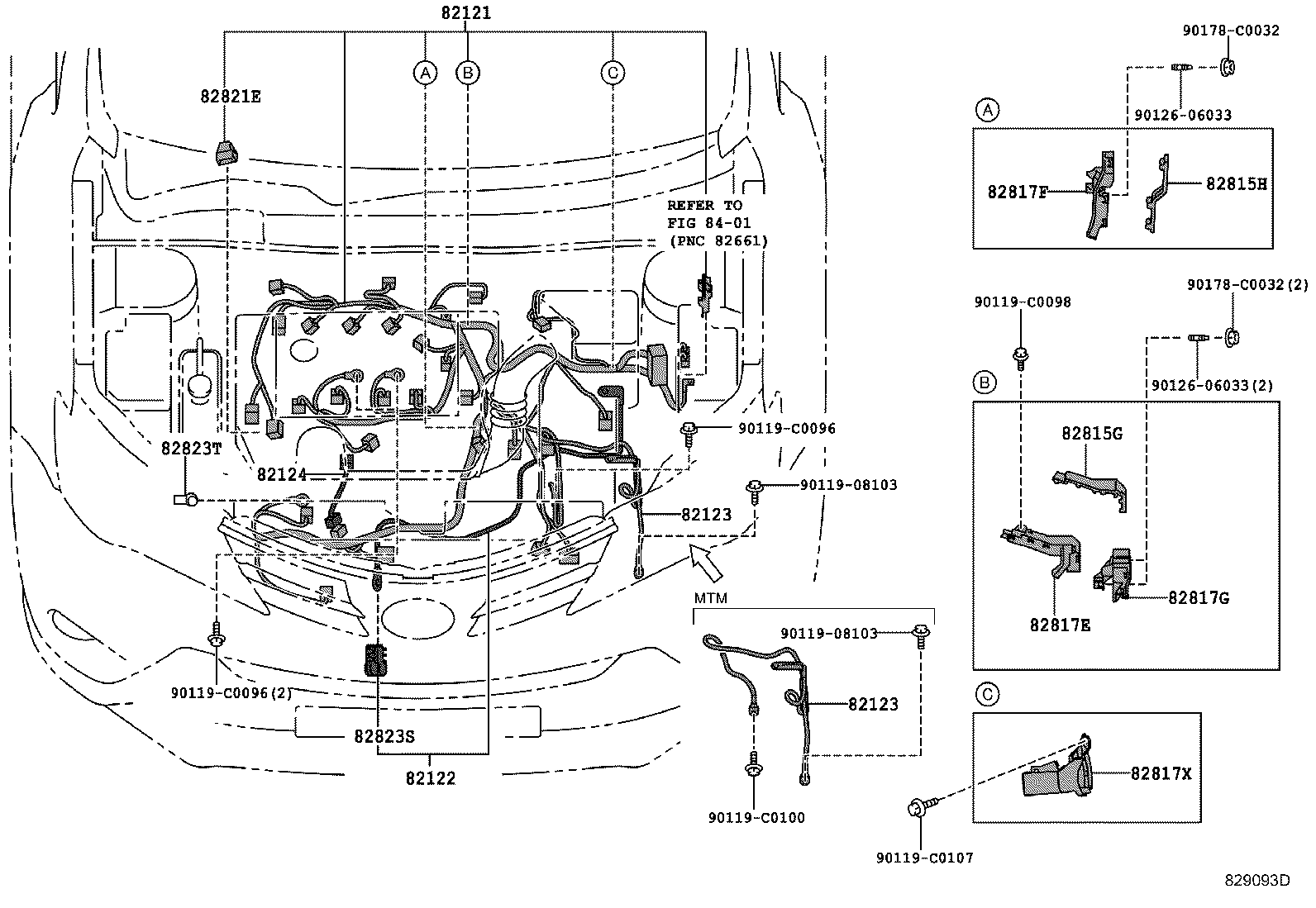

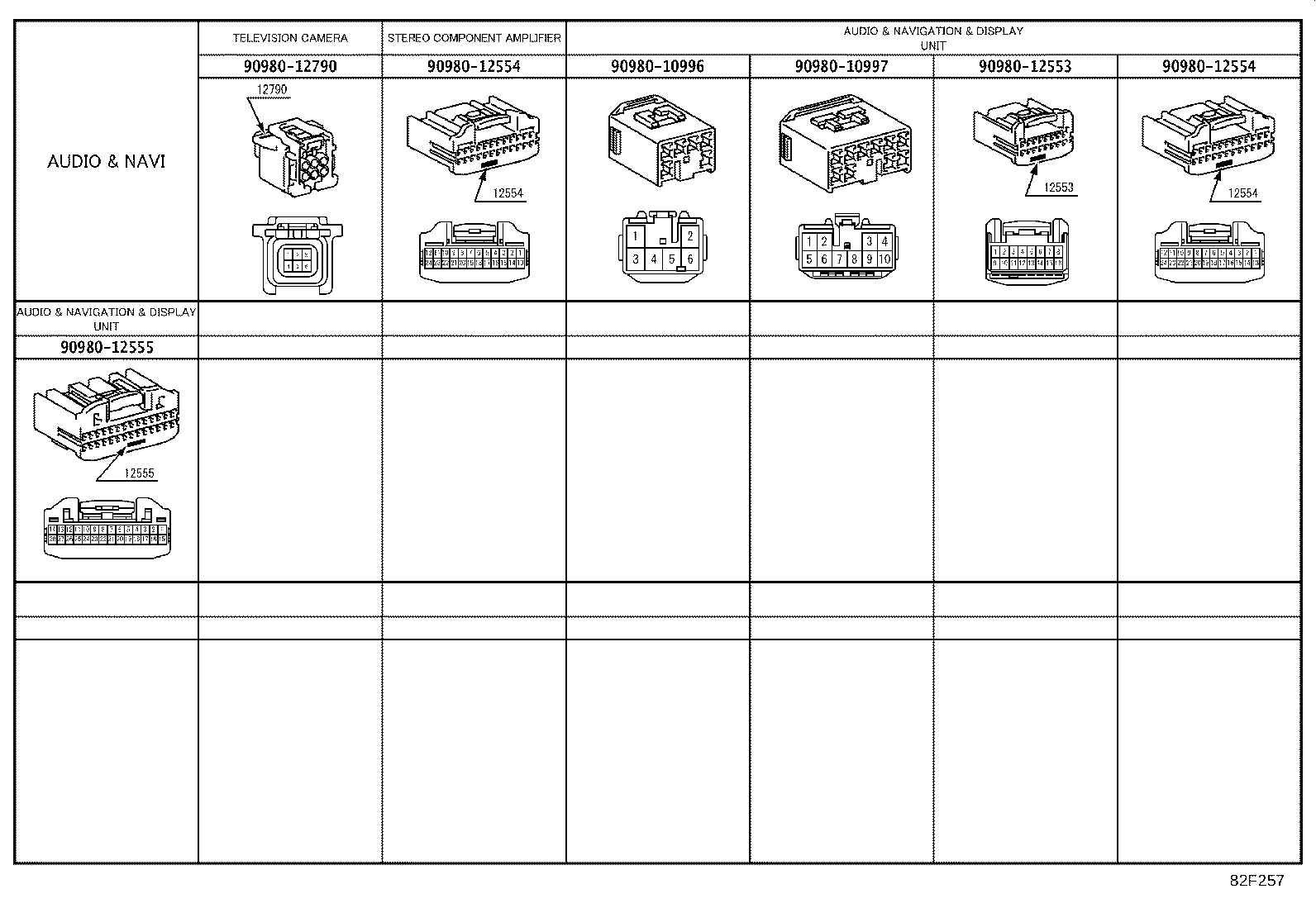

Figure 829085F 829085F 2013-08 → — Figure 829086F 829086F 2013-08 → — Figure 829093D 829093D 2013-08 → 2016-07 Figure 82A810A 82A810A 2016-07 → — Figure 829088B 829088B 2013-08 → — Figure 829089B 829089B 2013-08 → — Figure 829090G 829090G 2013-08 → — Figure 829091 829091 2013-08 → — Figure 829092D 829092D 2013-08 → — Figure 82A811 82A811 2013-08 → — Figure 829826C 829826C 2013-08 → — Figure 829827B 829827B 2013-08 → — Figure 82F257 82F257 2013-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3

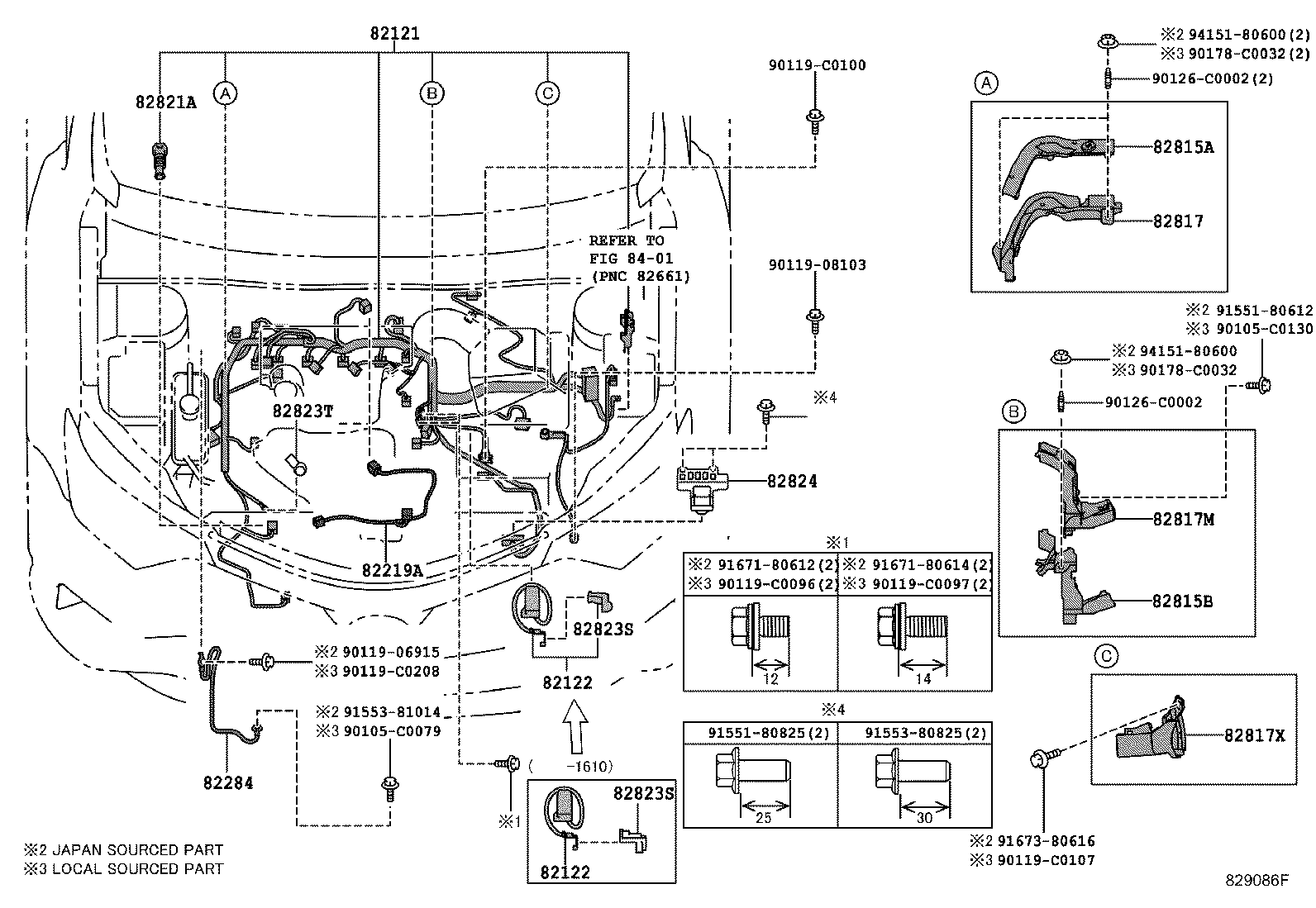

82121 Wire, Engine

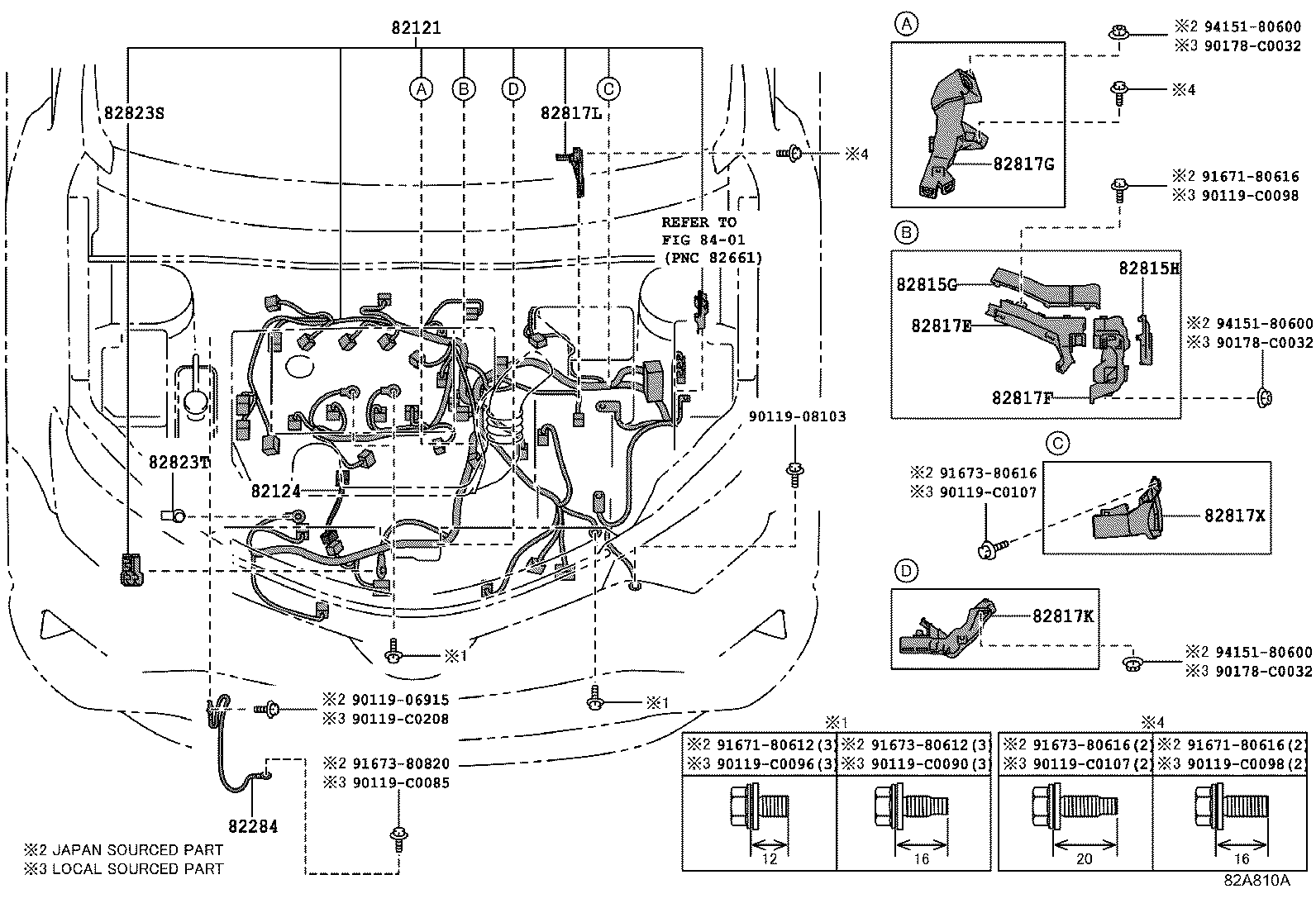

82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

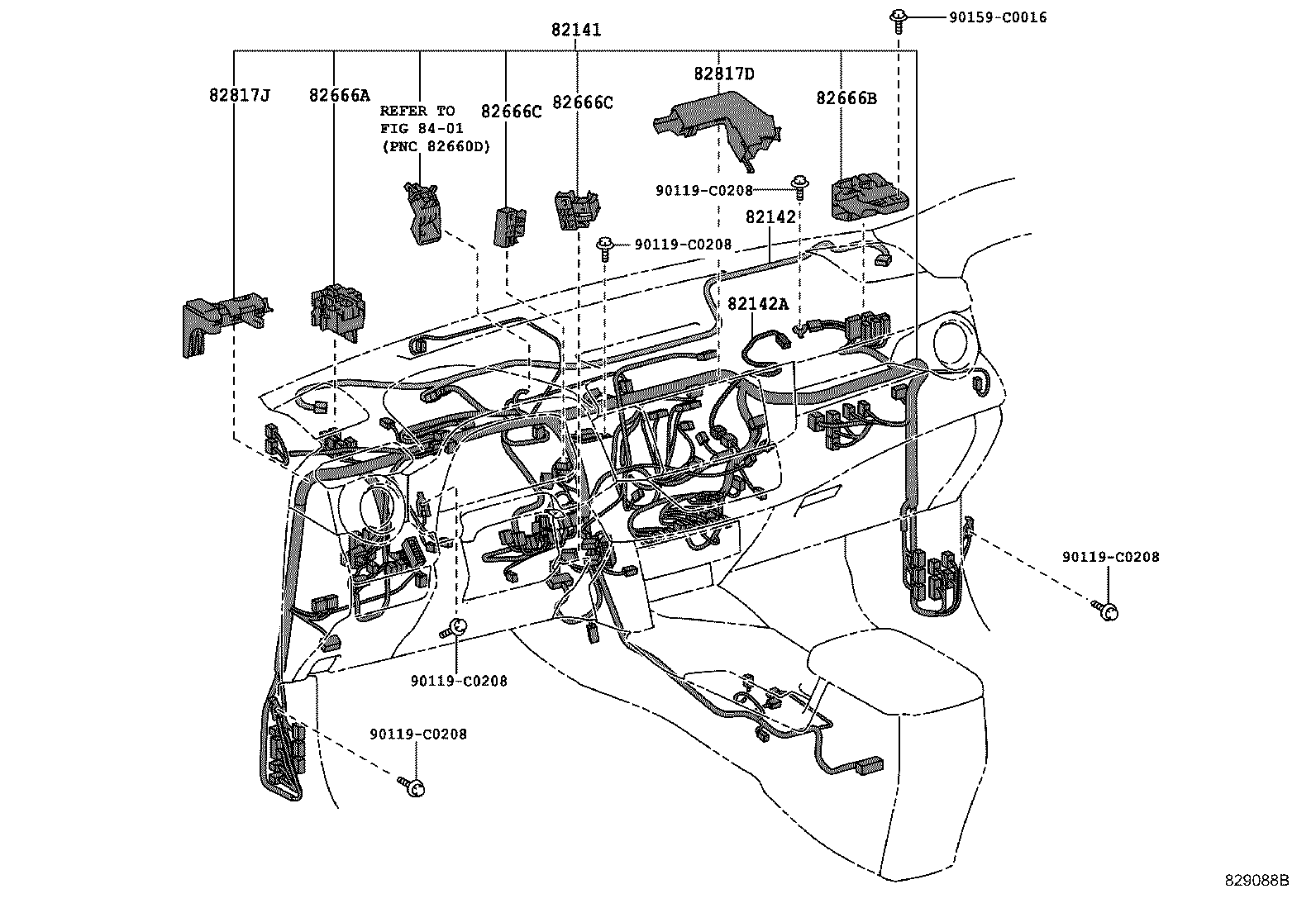

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

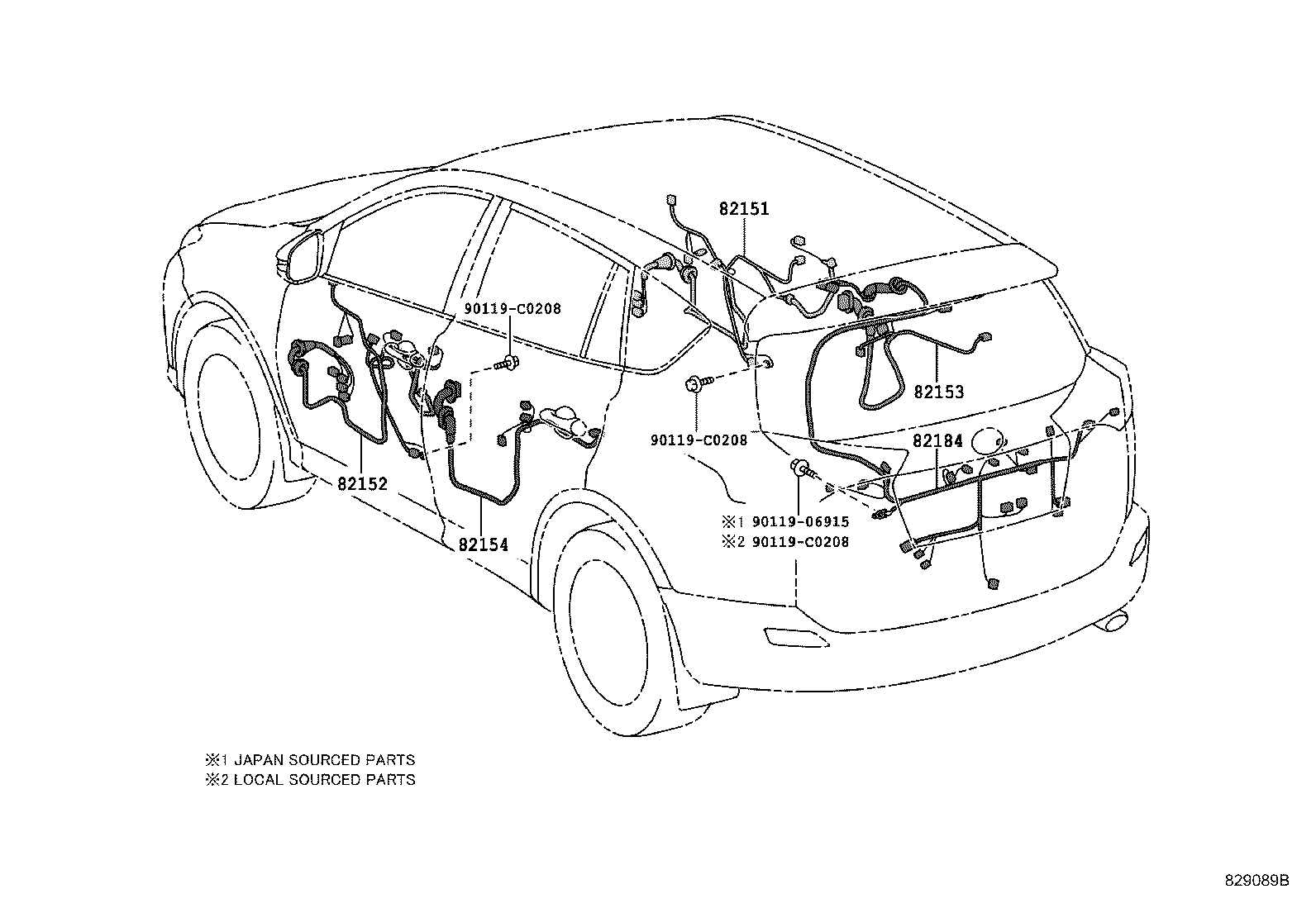

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2

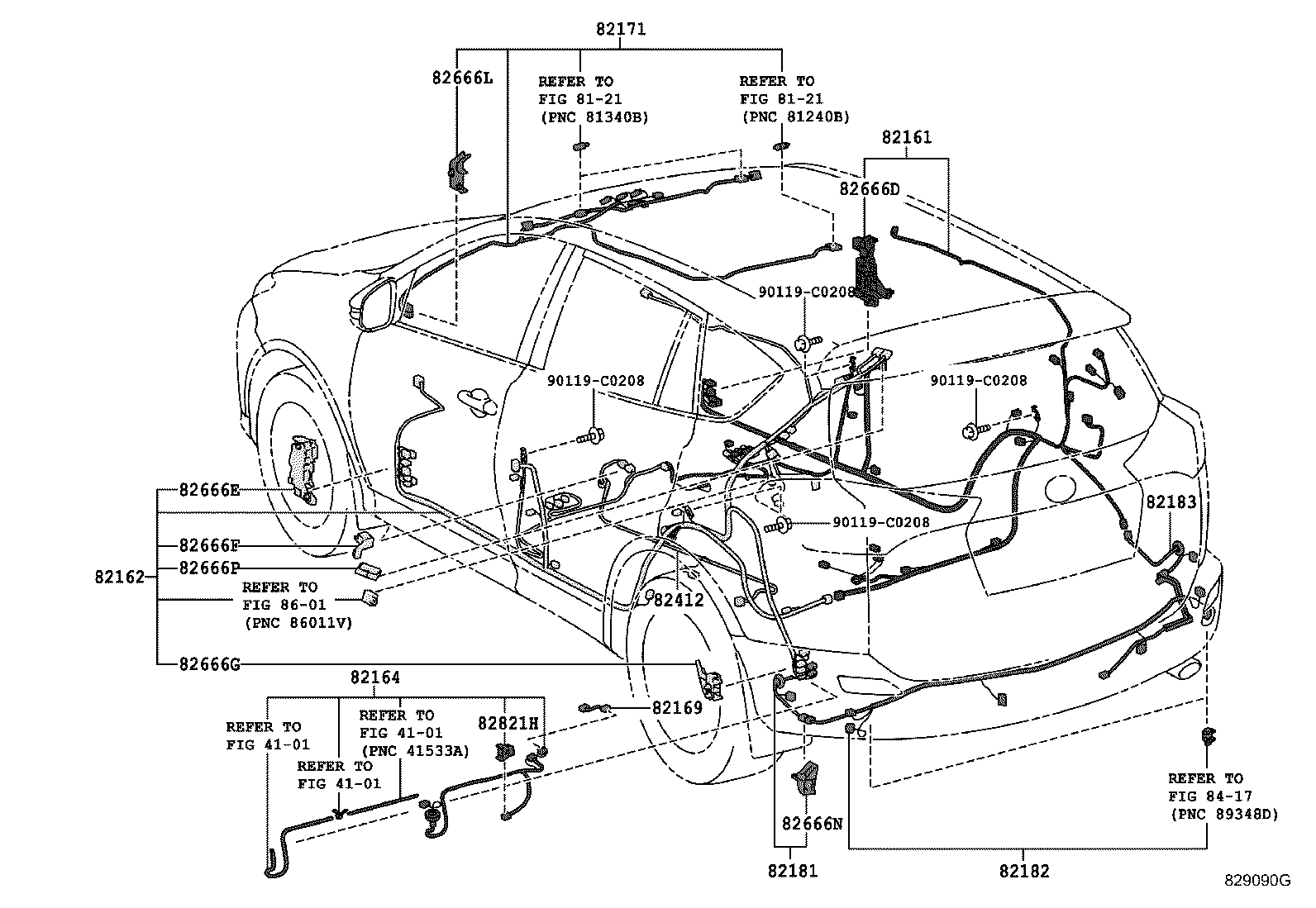

82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82284 Wire, Earth
82412 Wire, Fuel Gage
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817X Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
