Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

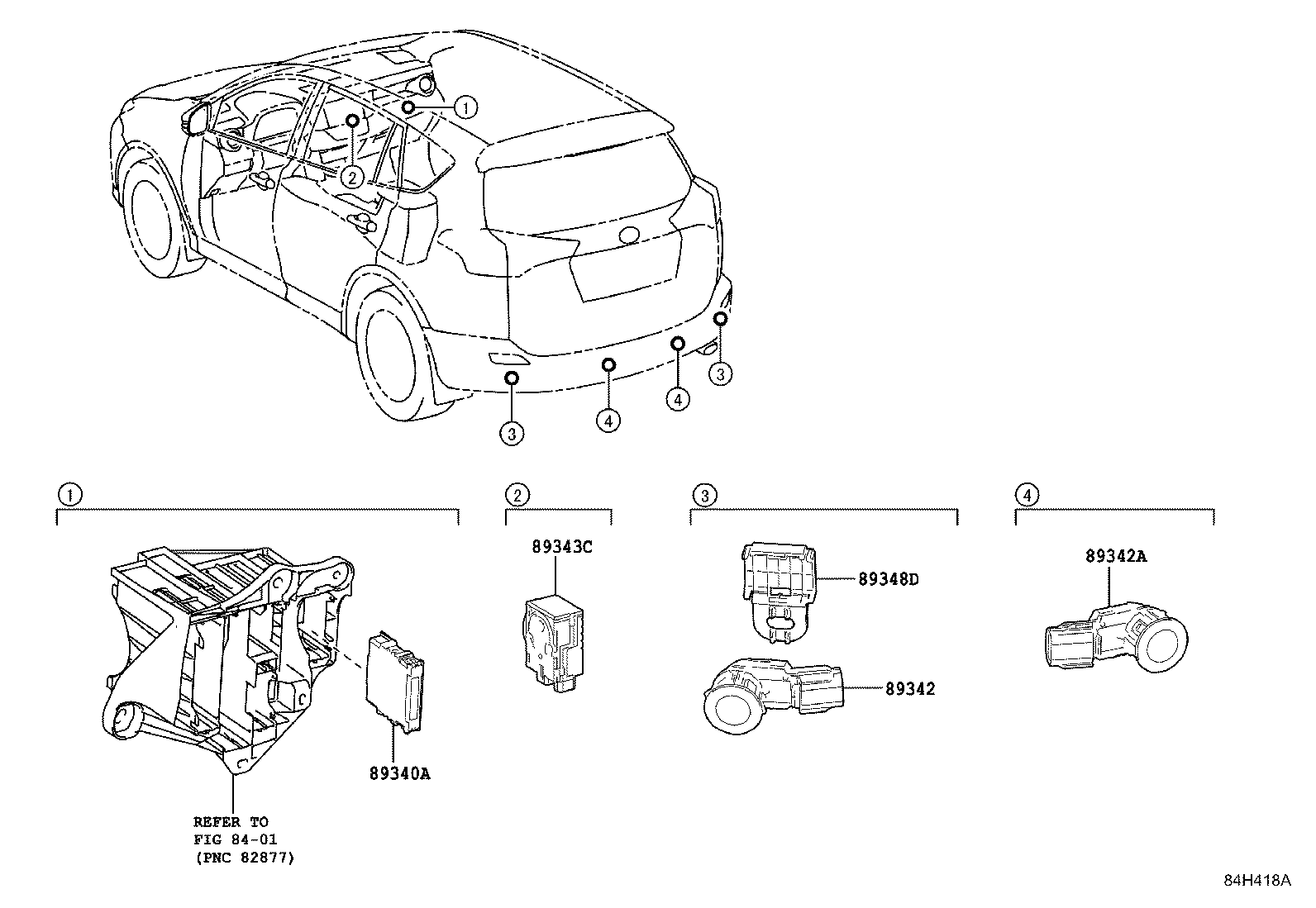

Clearance & Back Sonar
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89342 | Sensor, Ultrasonic, Rear Corner |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348D | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
