Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 3 illustrations

Illustrations

Figure 865511A

865511A 2013-08 → 2014-10

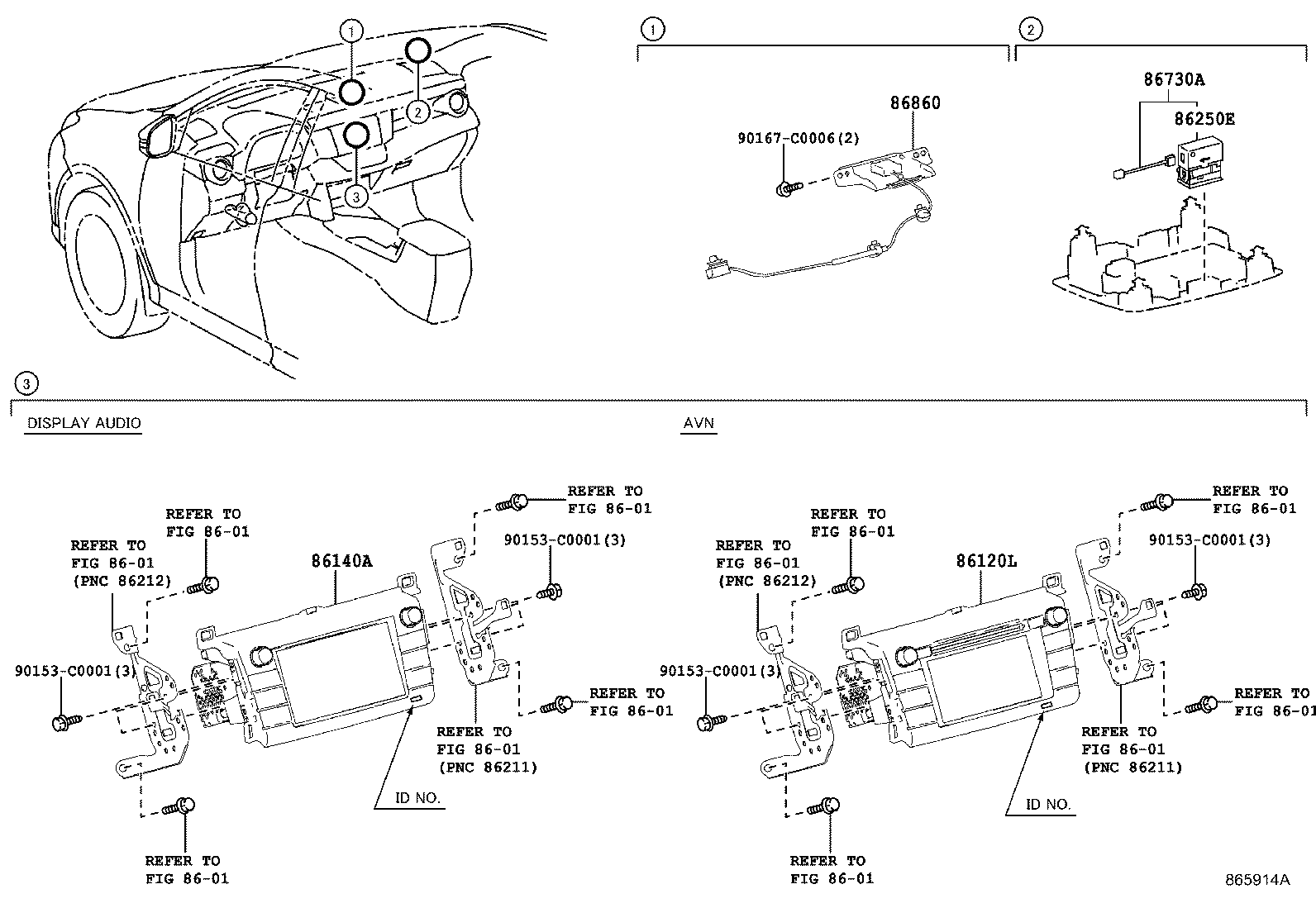

Figure 865914A

865914A 2014-10 → 2016-07

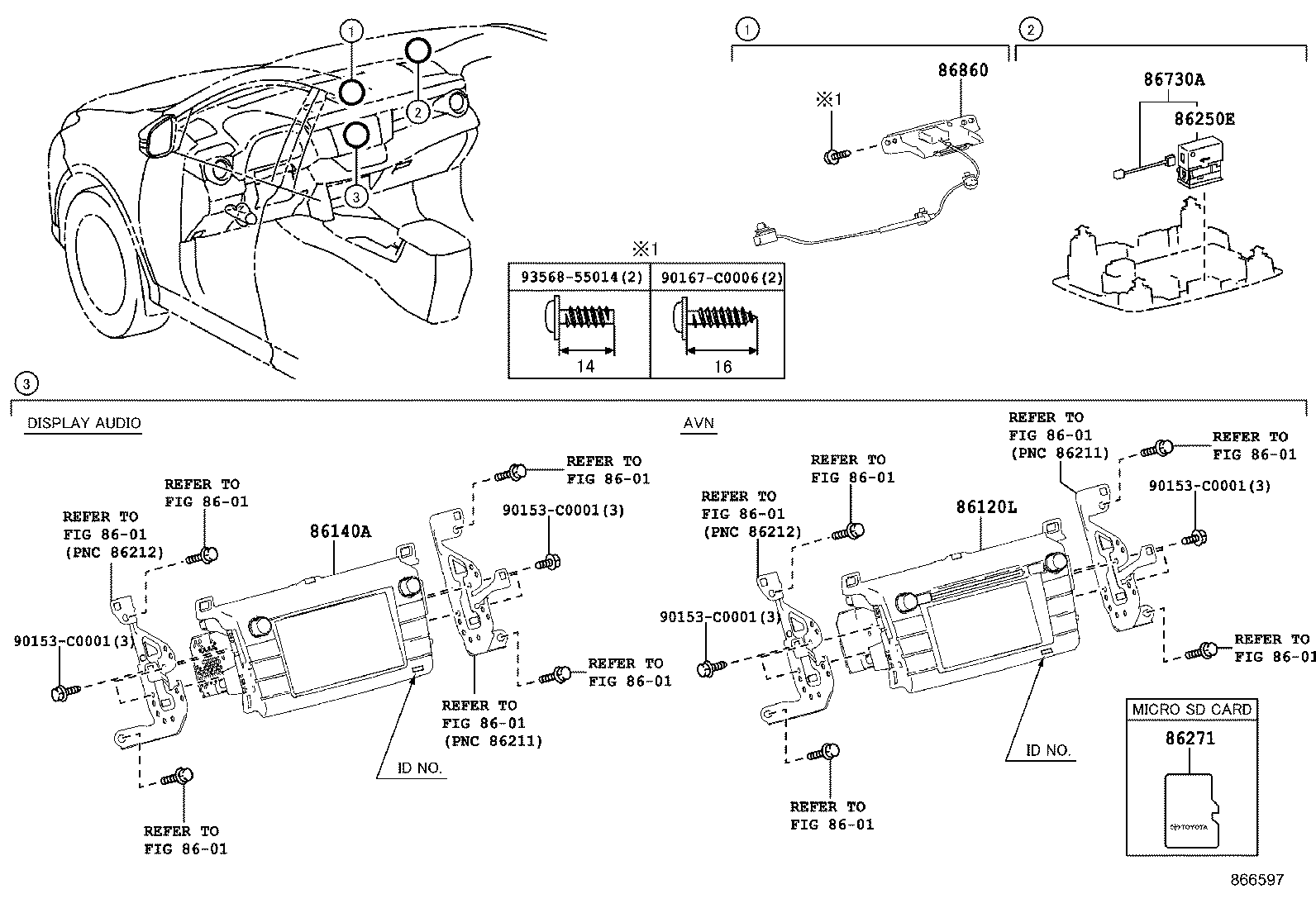

866597 2016-07 → —

Part groups

PNC	Description
86120L	Receiver Assy, Navigation
86140A	Receiver Assy, Radio & Display
86250E	Microphone Assy, Amplifier
86271	Disc, Disc Player
86730A	Microphone Assy, Telephone
86860	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
