Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

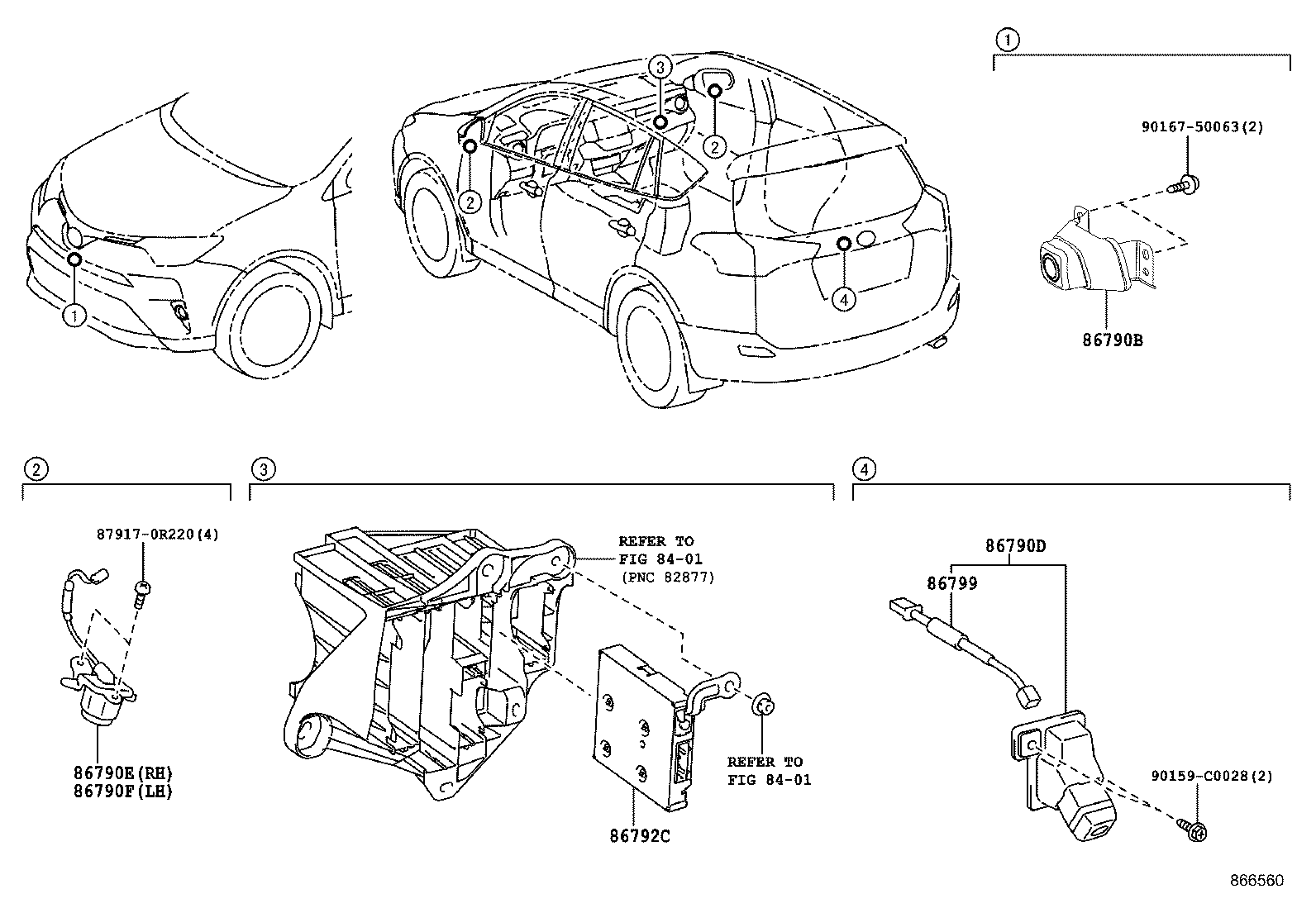

Camera & Rear Monitor Display
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86792C | Computer, Parking Assist |
| 86799 | Wire, Television Camera |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
