Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 3 illustrations

Illustrations

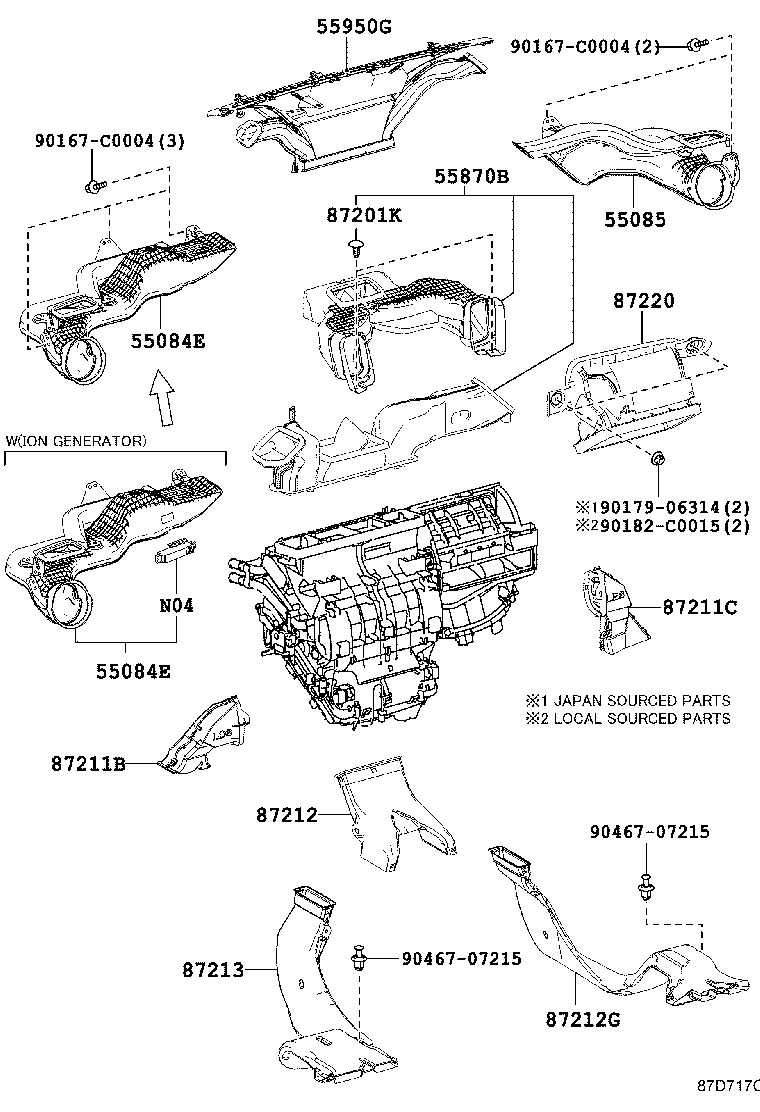

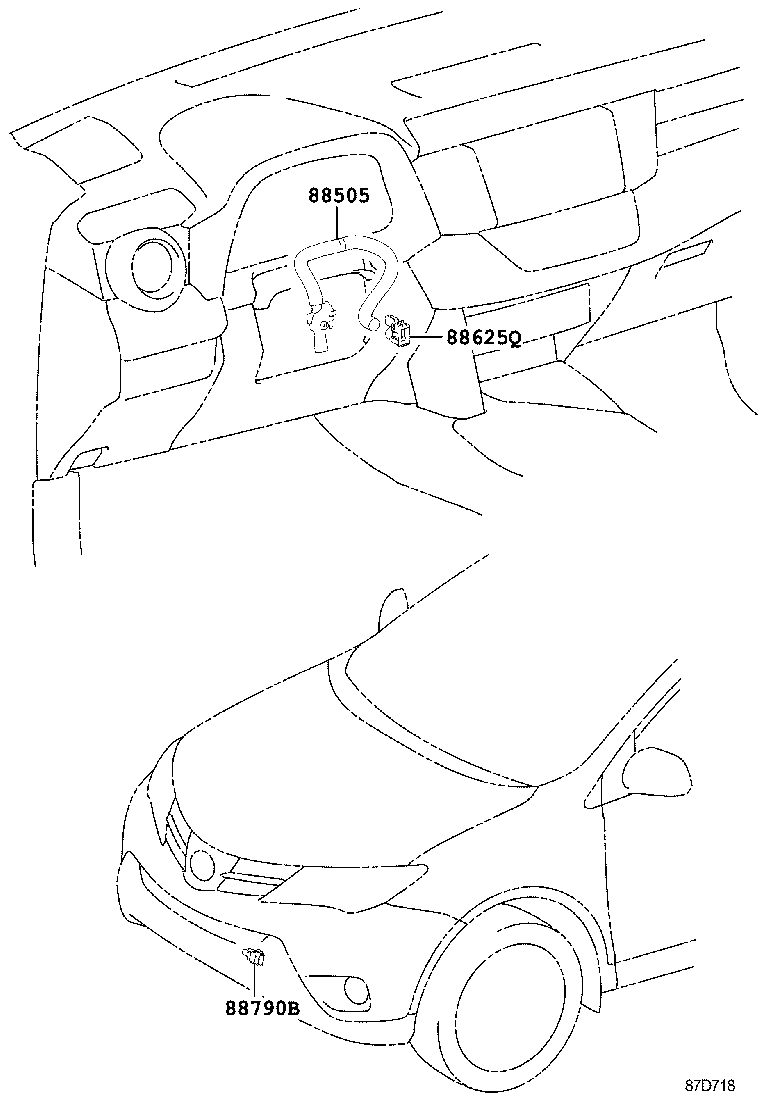

Figure 87D716B 87D716B 2013-08 → — Figure 87D717C 87D717C 2013-08 → — Figure 87D718 87D718 2013-08 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906 Cable Sub-assy, Heater Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
87201K Clip (FOR AIR DUCT)
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87212G Duct, Air, Rear NO.3
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
88505 Duct Sub-assy,Air Conditioner
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
