Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 3 illustrations

Illustrations

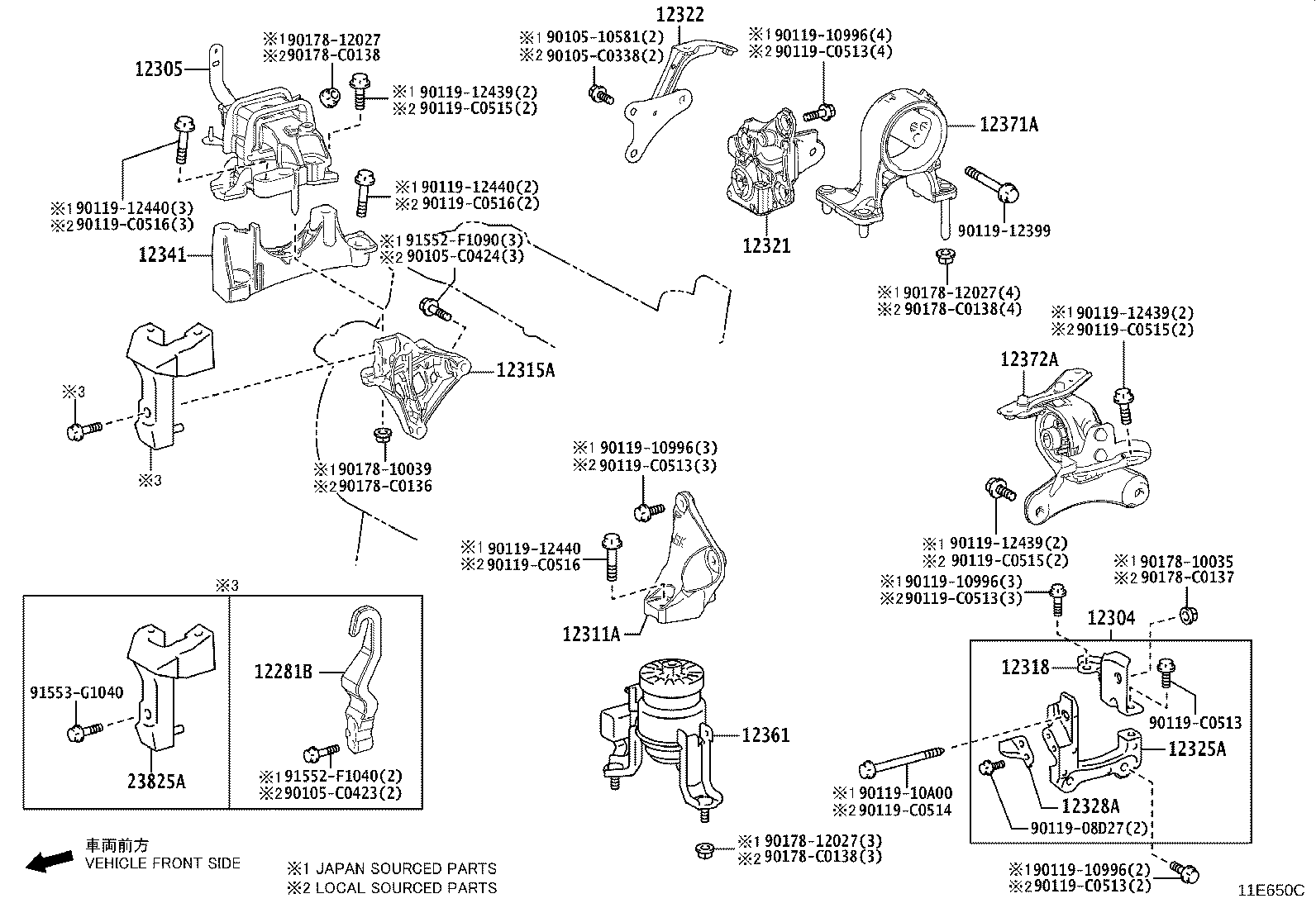

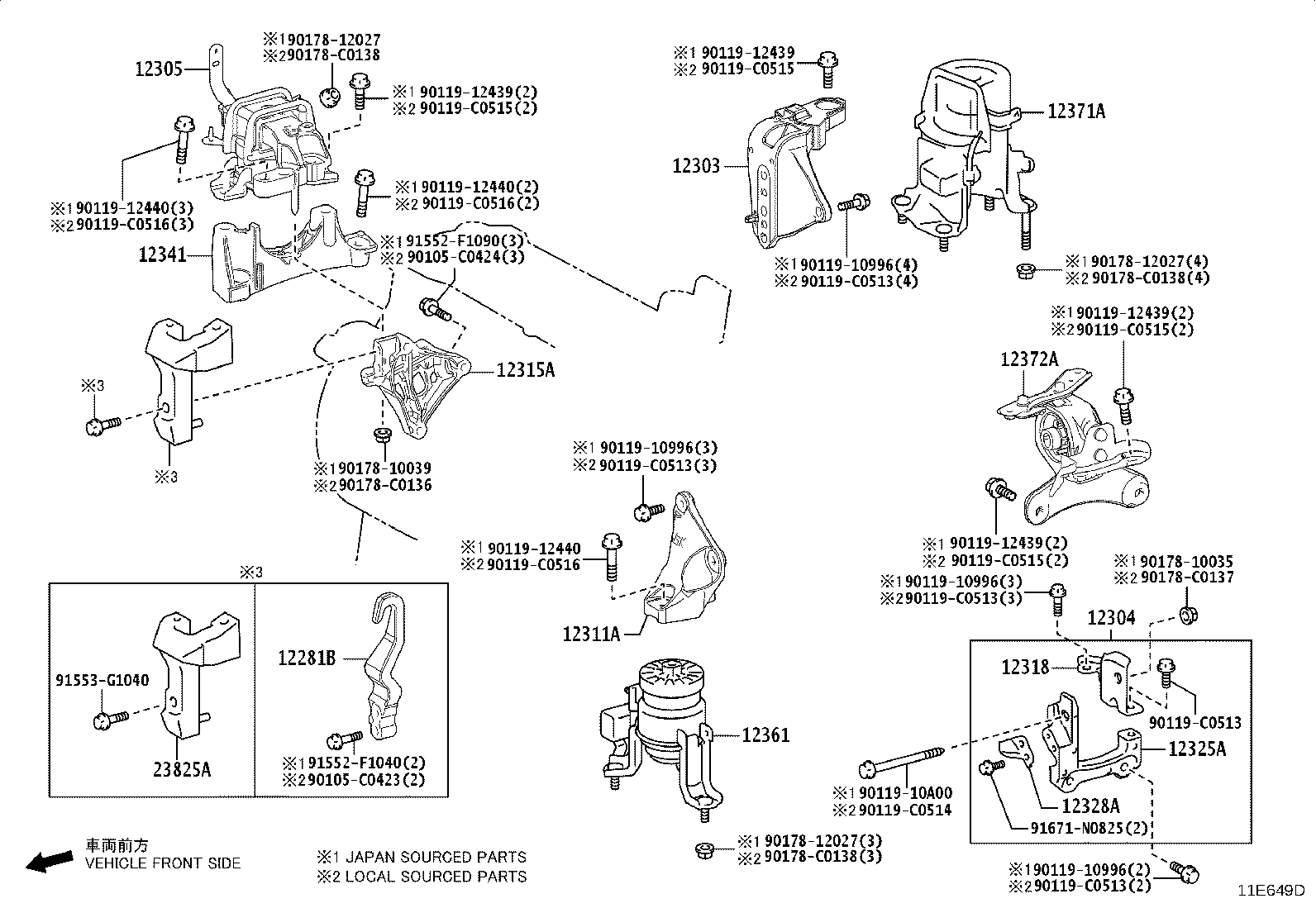

Figure 11E664D 11E664D 2019-11 → — Figure 11E649D 11E649D 2019-11 → — Figure 11E650C 11E650C 2019-11 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12303 Bracket Sub-assy, Engine Mounting, Rear
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12341 Spacer, Engine Mounting
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
23825A Guard, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
