Toyota RAV4 (SFTM)
2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General
Supported model
Data version 2025-01

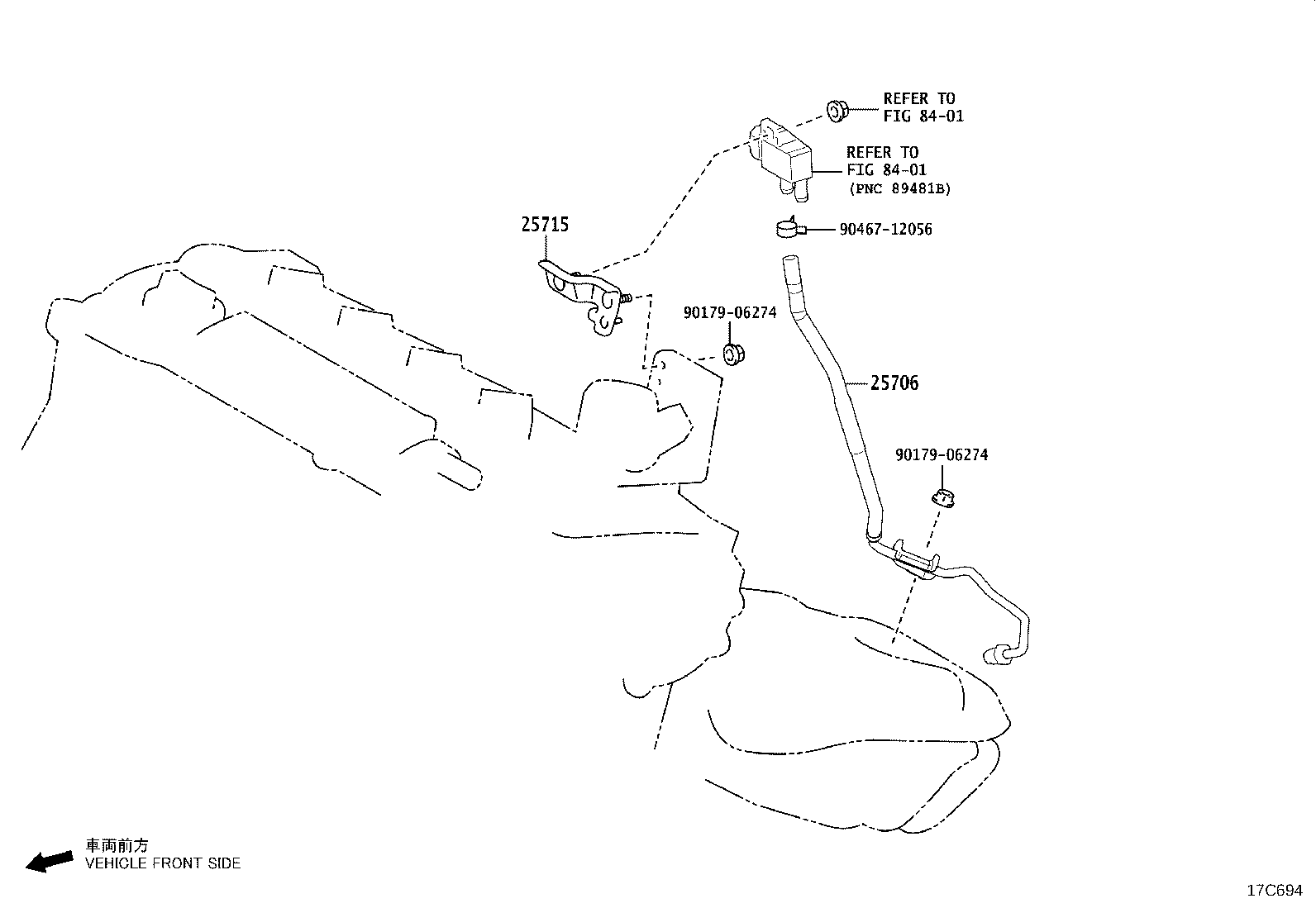

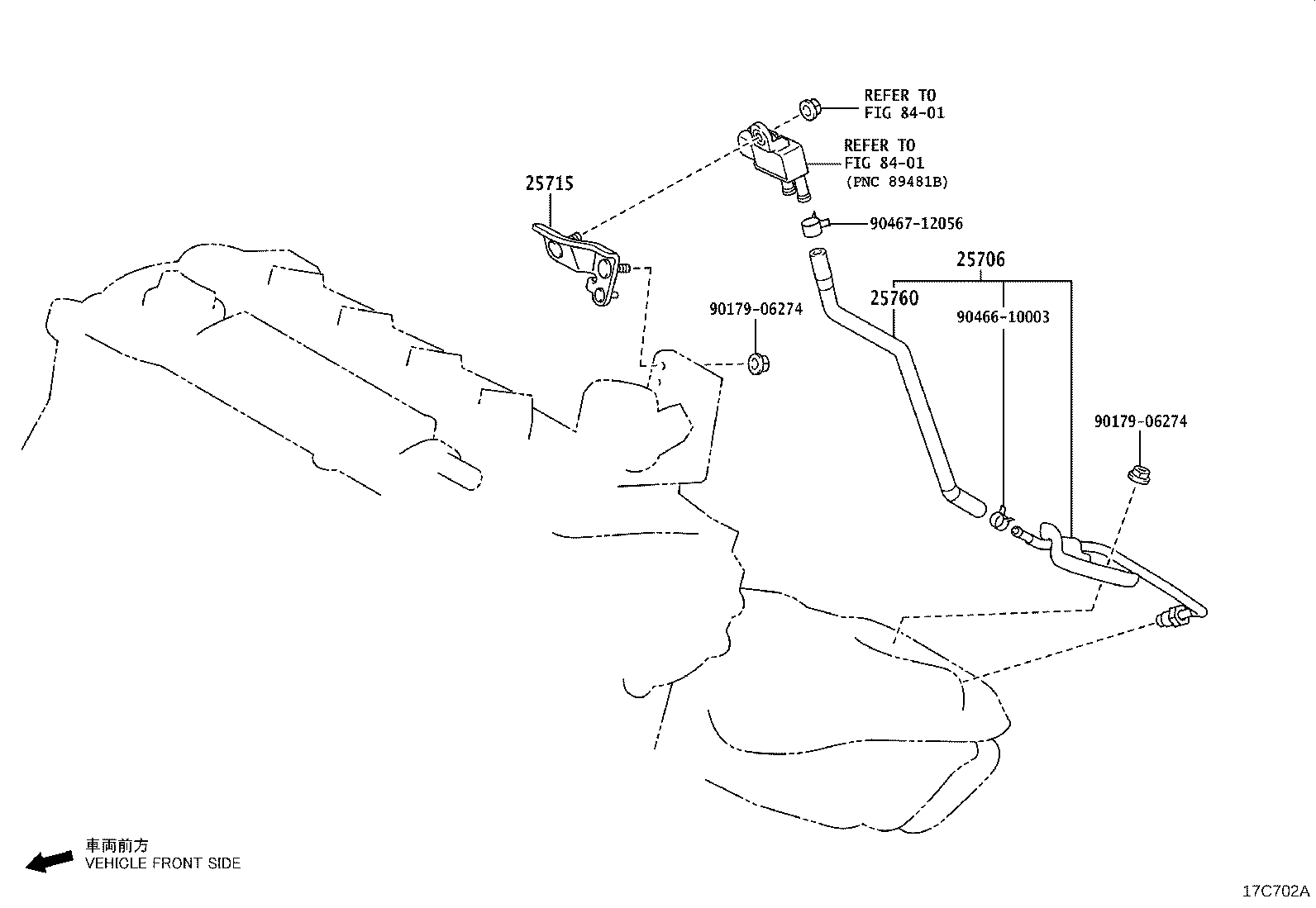

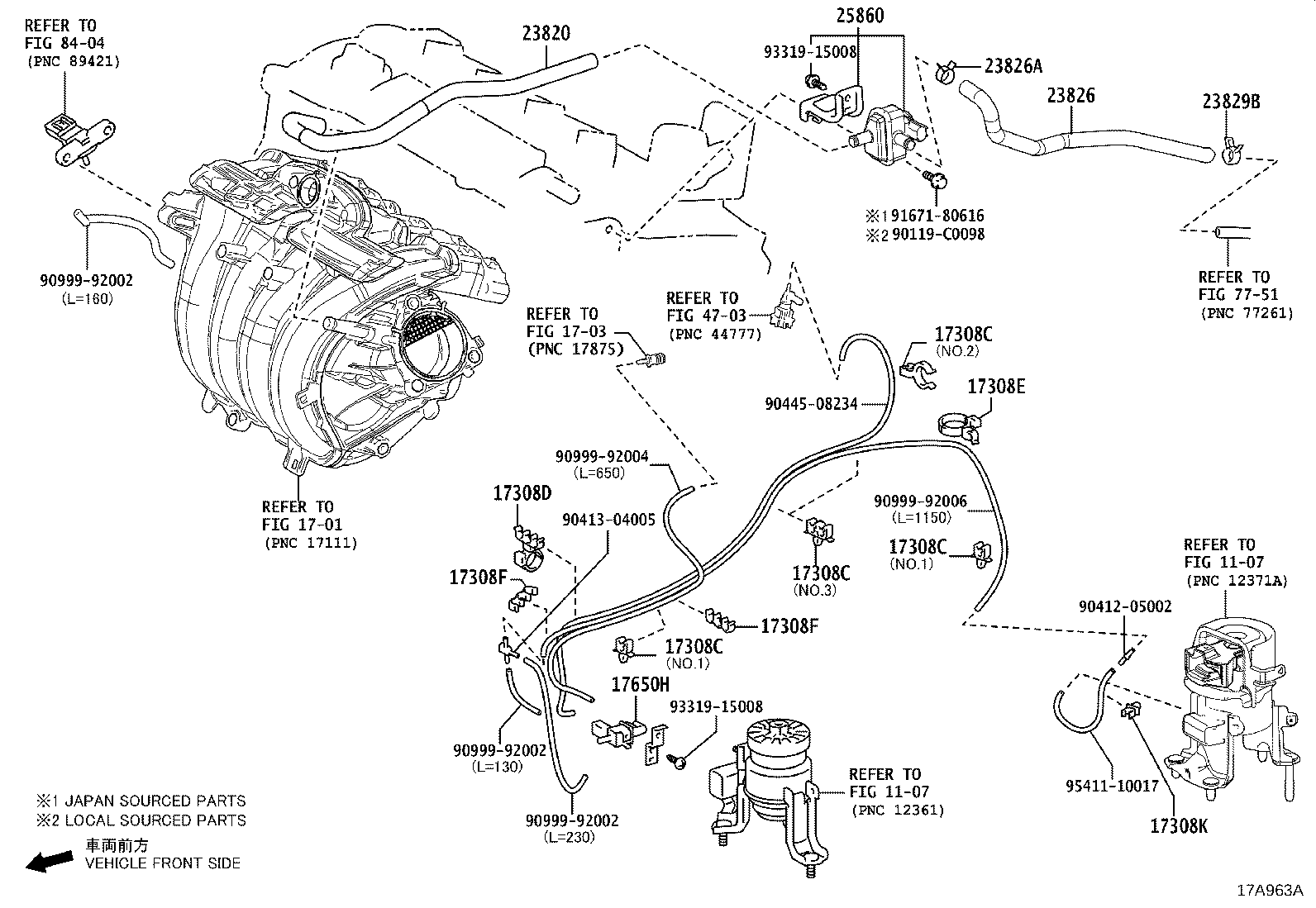

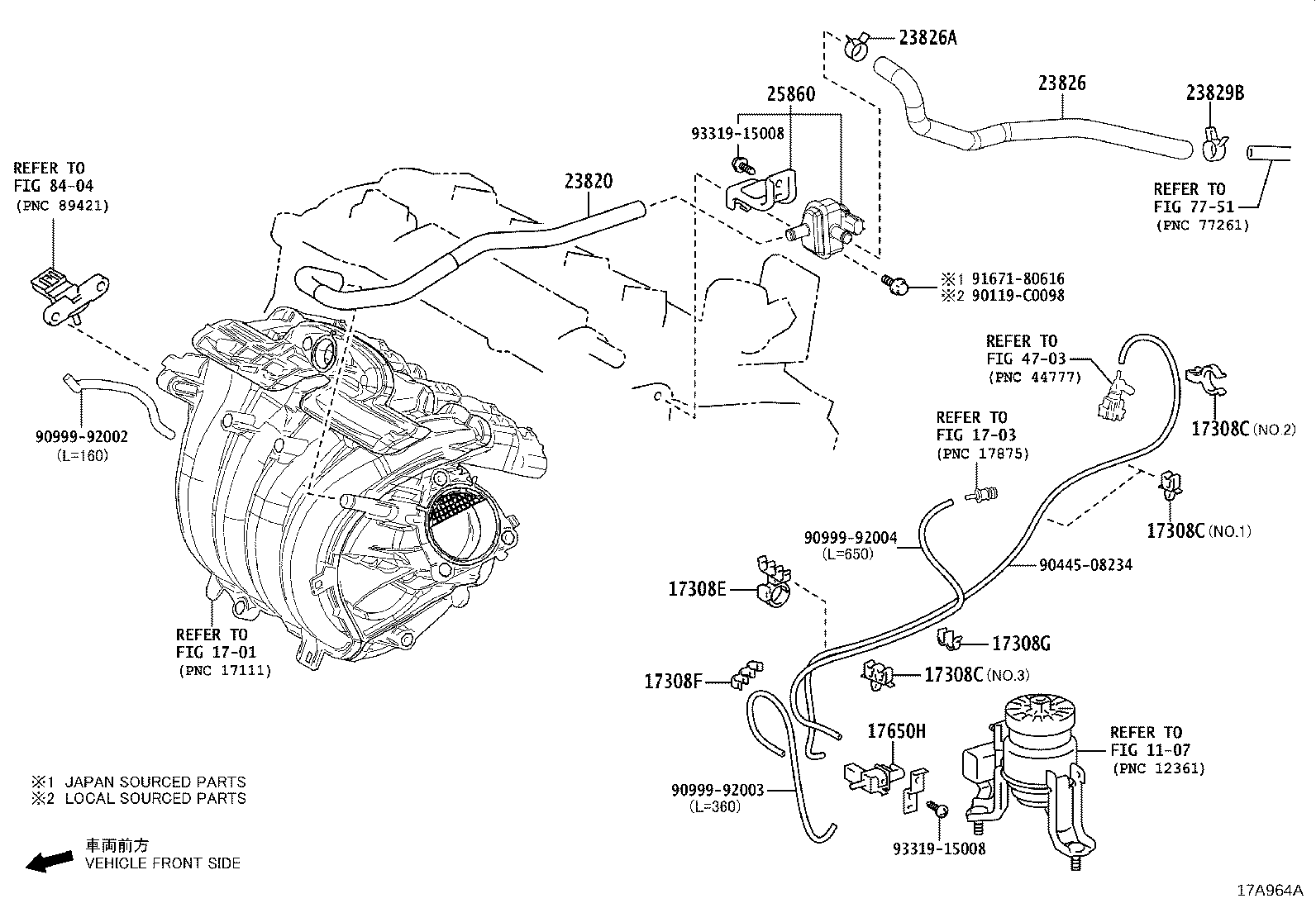

Vacuum Piping
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308C | Clamp(FOR VACUUM HOSE) |
| 17308D | Clamp, NO.2(FOR VACUUM HOSE) |
| 17308E | Clamp, NO.3(FOR VACUUM HOSE) |
| 17308F | Clamp, NO.4(FOR VACUUM HOSE) |
| 17308G | Clamp, NO.5(FOR VACUUM HOSE) |
| 17308K | Clamp, NO.7(FOR VACUUM HOSE) |
| 17650H | Valve, Vacuum Switching |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25715 | Bracket, Emission Control Valve |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
