Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

7 part groups · 3 illustrations

Illustrations

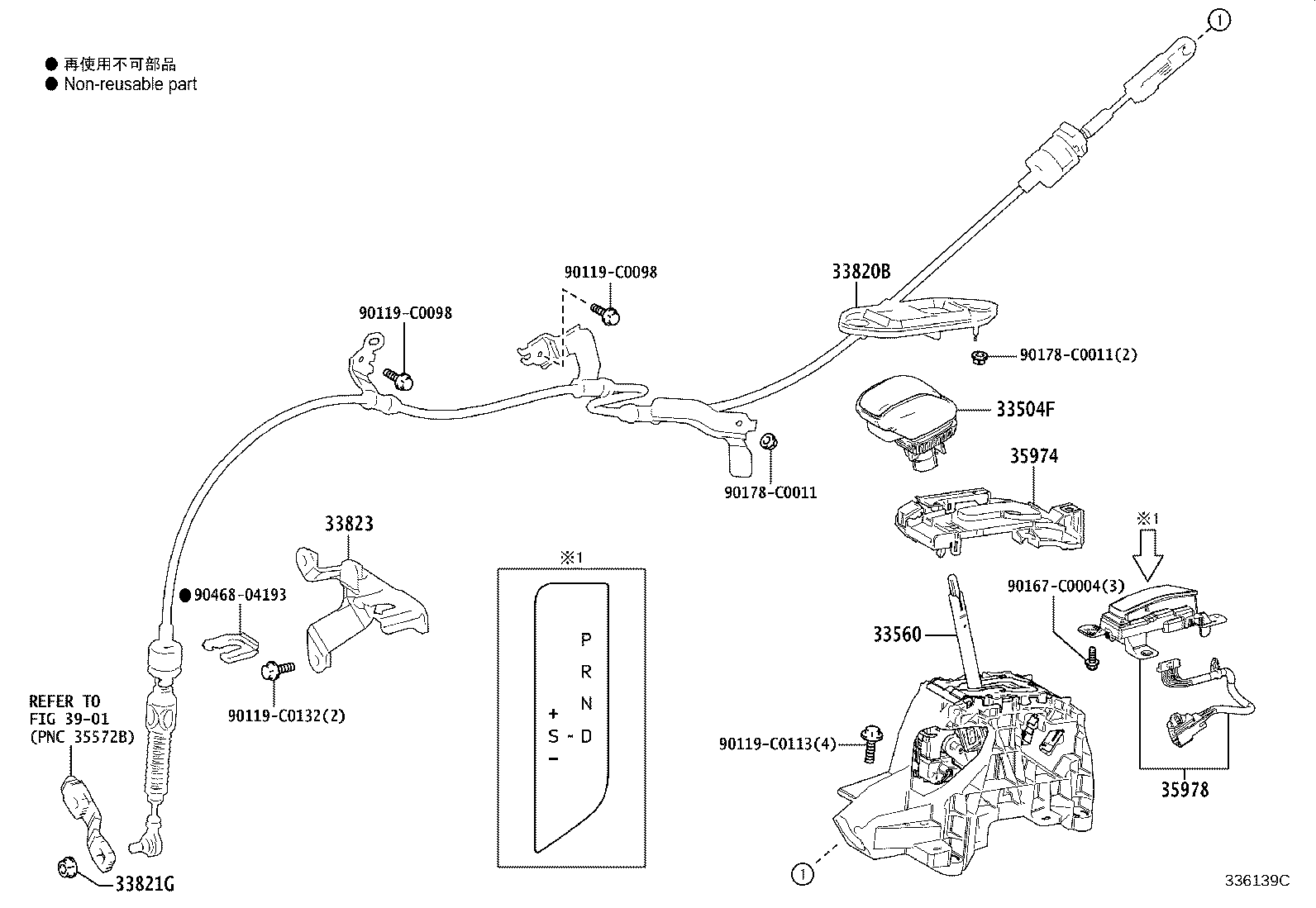

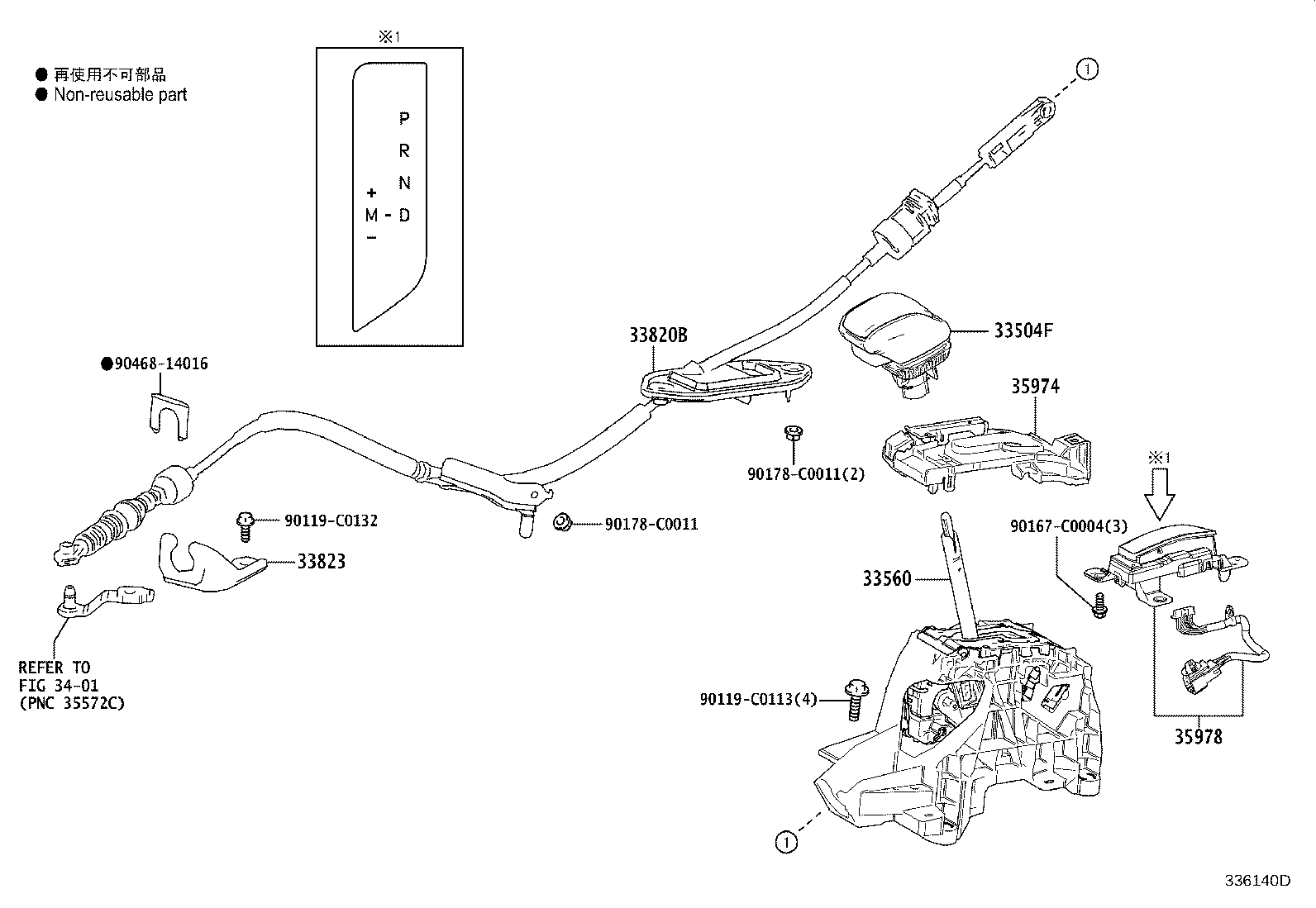

Figure 336138C 336138C 2019-11 → — Figure 336139C 336139C 2019-11 → — Figure 336140D 336140D 2019-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
