Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

21 part groups · 2 illustrations

Illustrations

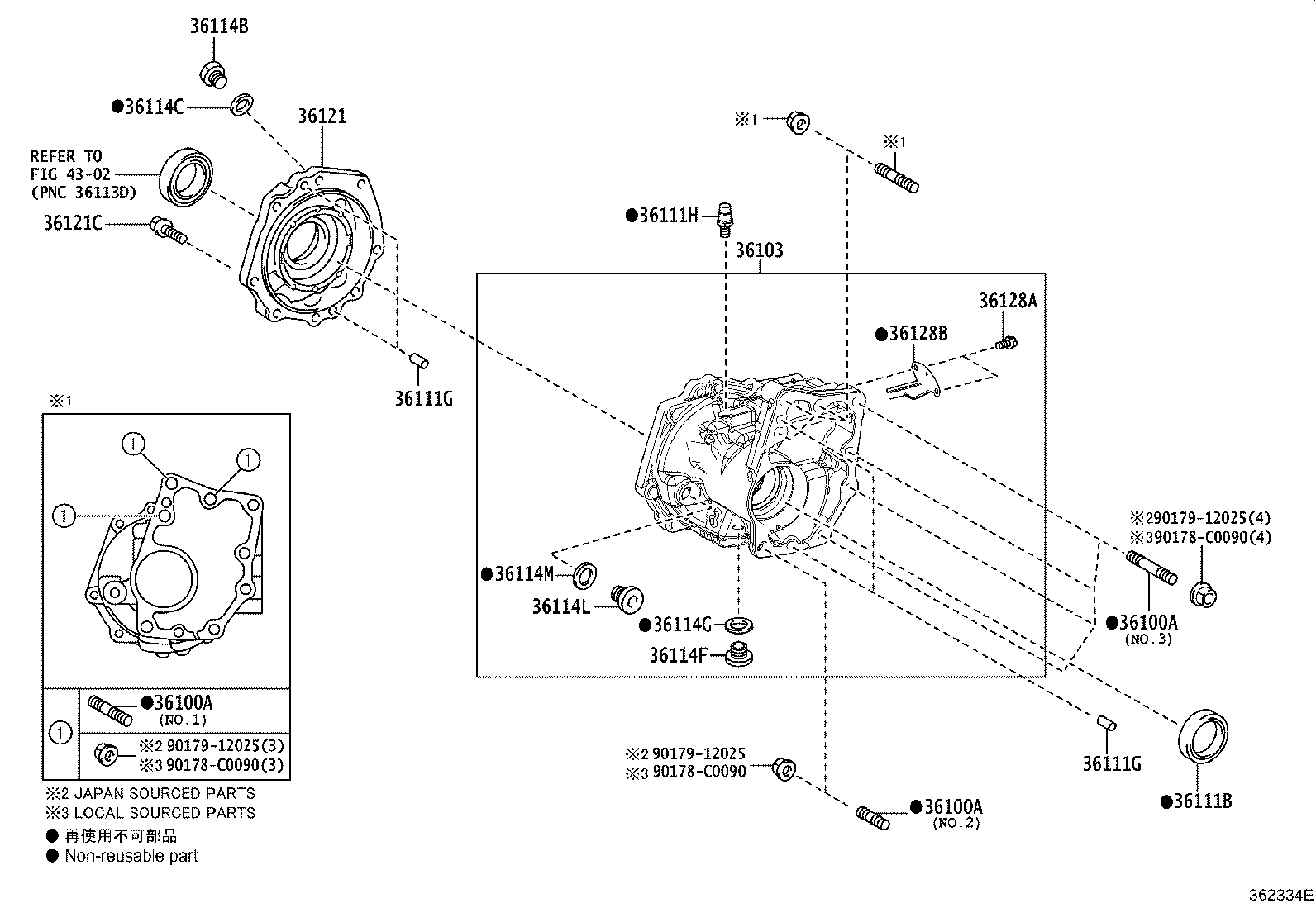

Figure 362333L 362333L 2019-11 → — Figure 362334E 362334E 2019-11 → —

Part groups

PNCDescription
31364D Wire, Clutch Control Solenoid
33309B Flange Sub-assy, Output Shaft Companion
33621F Label, Transaxle Oil Information
36100A Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
36103 Case Sub-assy, Transfer
36111B Seal, Oil (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36111X Seal, Oil (FOR TRANSFER CASE), NO.2
36114B Plug, NO.1 (FOR TRANSFER CASE)
36114C Gasket, NO.1 (FOR TRANSFER CASE)
36114F Plug (FOR TRANSFER DRAIN)
36114G Gasket (FOR TRANSFER DRAIN PLUG)
36114H Plug, NO.2 (FOR TRANSFER CASE)
36114J Gasket, NO.2 (FOR TRANSFER CASE)
36114L Plug, Filler(FOR TRANSFER)
36114M Gasket (FOR TRANSFER FILLER PLUG)
36121 Cover, Transfer Case, NO.1
36121C Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
36128A Bolt (FOR BREATHER OIL DEFLECTOR)
36128B Deflector, Breather Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
