Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 2 illustrations

Illustrations

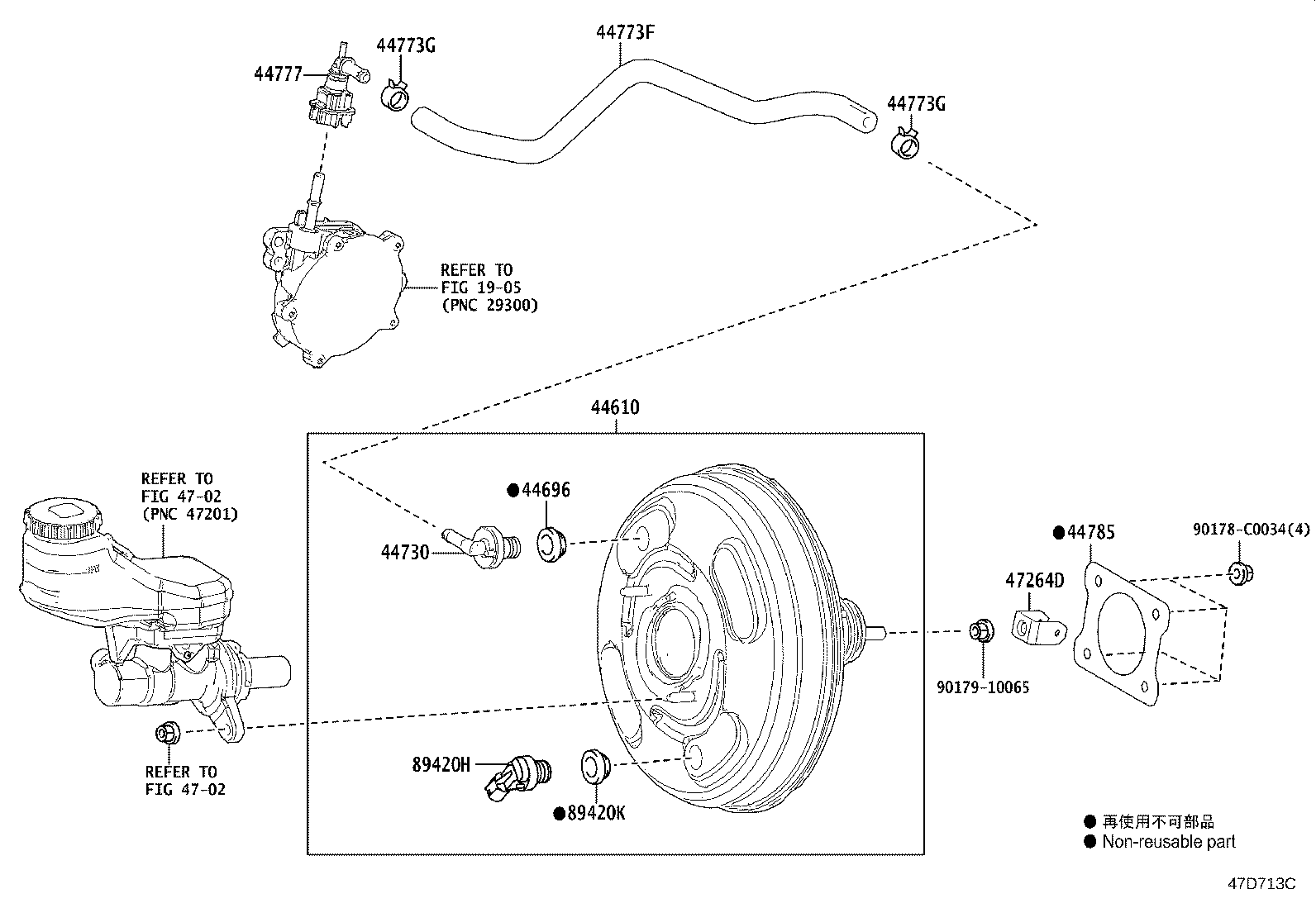

Figure 47C154D 47C154D 2019-11 → 2021-04 Figure 47D713C 47D713C 2021-04 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44777 Connector, Vacuum Hose, NO.1
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
