Toyota RAV4 (SFTM)
2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General
Supported model
Data version 2025-01

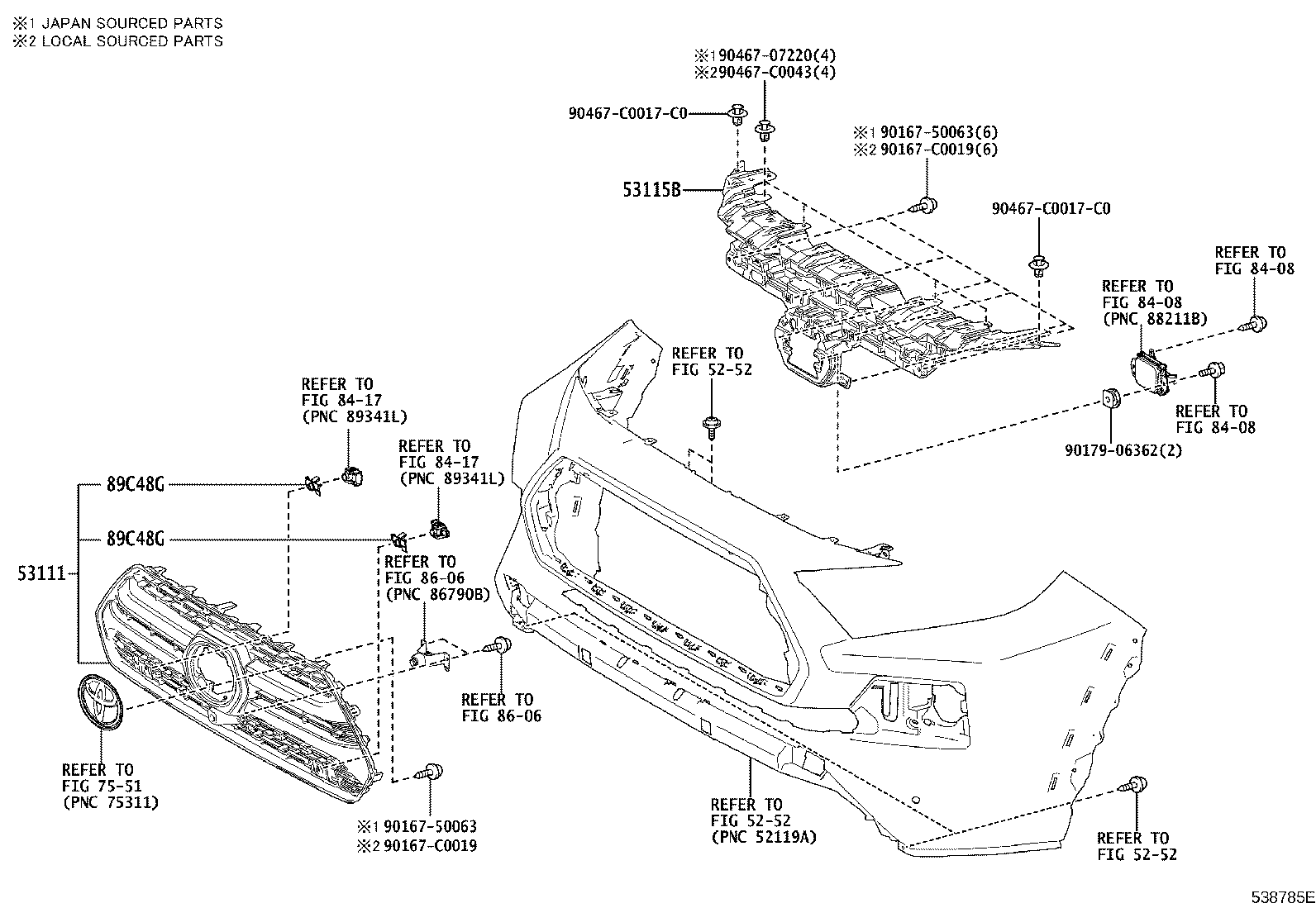

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53115B | Bracket, Radiator Grille |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124B | Moulding, Radiator Grille Side, LH |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
