Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

29 part groups · 2 illustrations

Illustrations

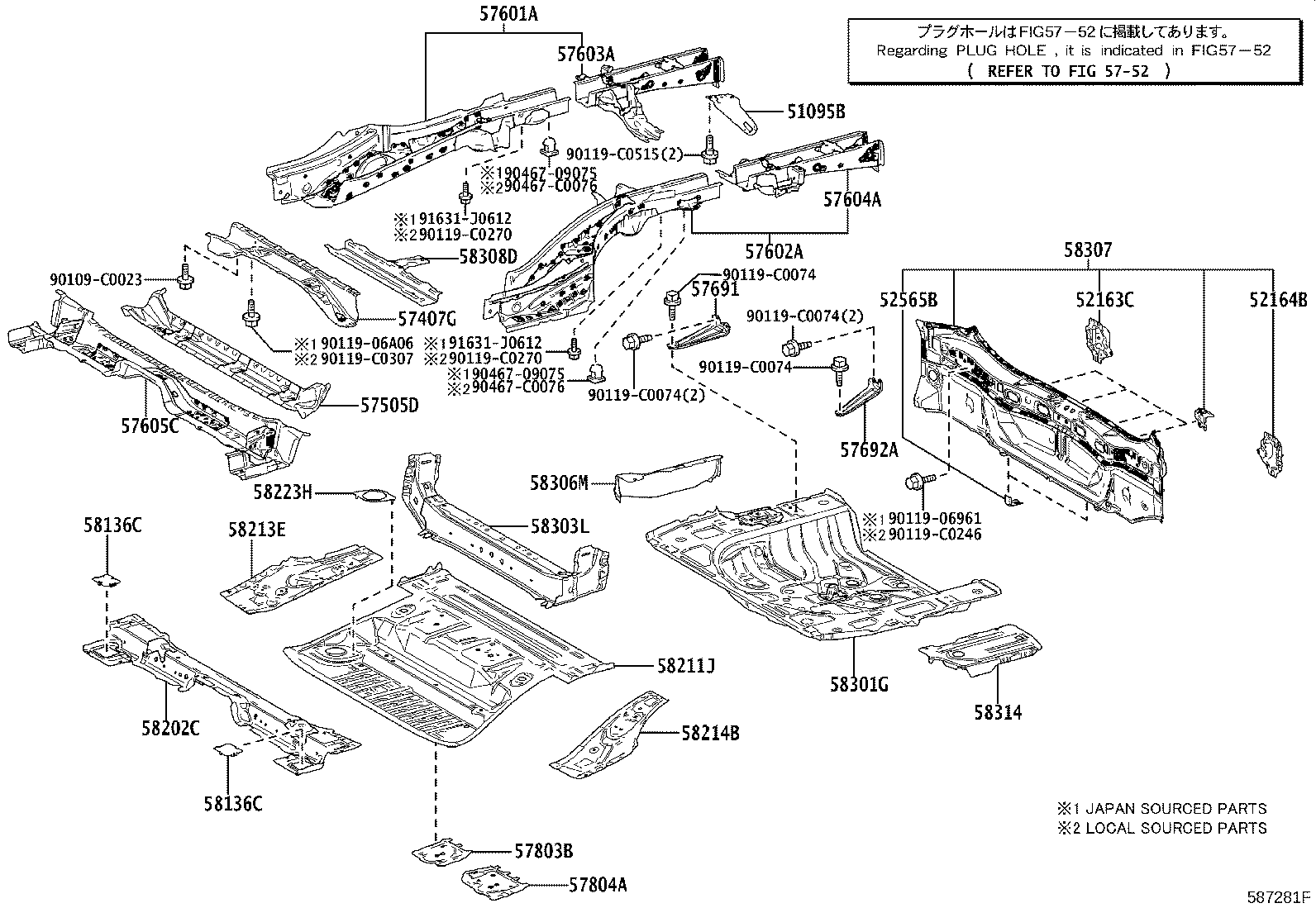

Figure 587280C 587280C 2019-11 → — Figure 587281F 587281F 2019-11 → —

Part groups

PNCDescription
51095B Hook Sub-assy, Transport, Rear RH
52163C Plate, Rear Bumper Reinforcement, RH
52164B Plate, Rear Bumper Reinforcement, LH
52565B Retainer, Rear Bumper, Lower
57407G Member Sub-assy, Center Floor Cross
57505D Reinforcement Sub-assy, Front Floor Under
57601A Member Sub-assy, Rear Floor Side, RH
57602A Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605C Member Sub-assy, Rear Floor Cross
57691 Brace, Rear Floor NO.2 Crossmember, Inner RH
57692A Brace, Rear Floor NO.2 Crossmember, Inner LH
57803B Reinforce Sub-assy, Belt Anchor, NO.2 RH
57804A Reinforce Sub-assy, Belt Anchor, NO.2 LH
58136C Cover, Rear Floor Hole
58202C Pan Sub-assy, Center Floor, Front
58211J Pan, Center Floor
58213E Panel, Seat Floor Side, RH
58214B Panel, Seat Floor Side, LH
58223H Reinforcement, Floor Panel Side, RH
58301G Pan Sub-assy, Rear Floor
58303L Panel Sub-assy, Rear Floor Partition
58306M Panel Sub-assy, Rear Floor Side
58307 Panel Sub-assy, Body Lower Back
58308D Bracket Sub-assy, Rear Floor Crossmember
58313 Panel, Rear Floor Side, RH
58314 Panel, Rear Floor Side, LH
58325E Cover, Rear Floor Service Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
