Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

20 part groups · 3 illustrations

Illustrations

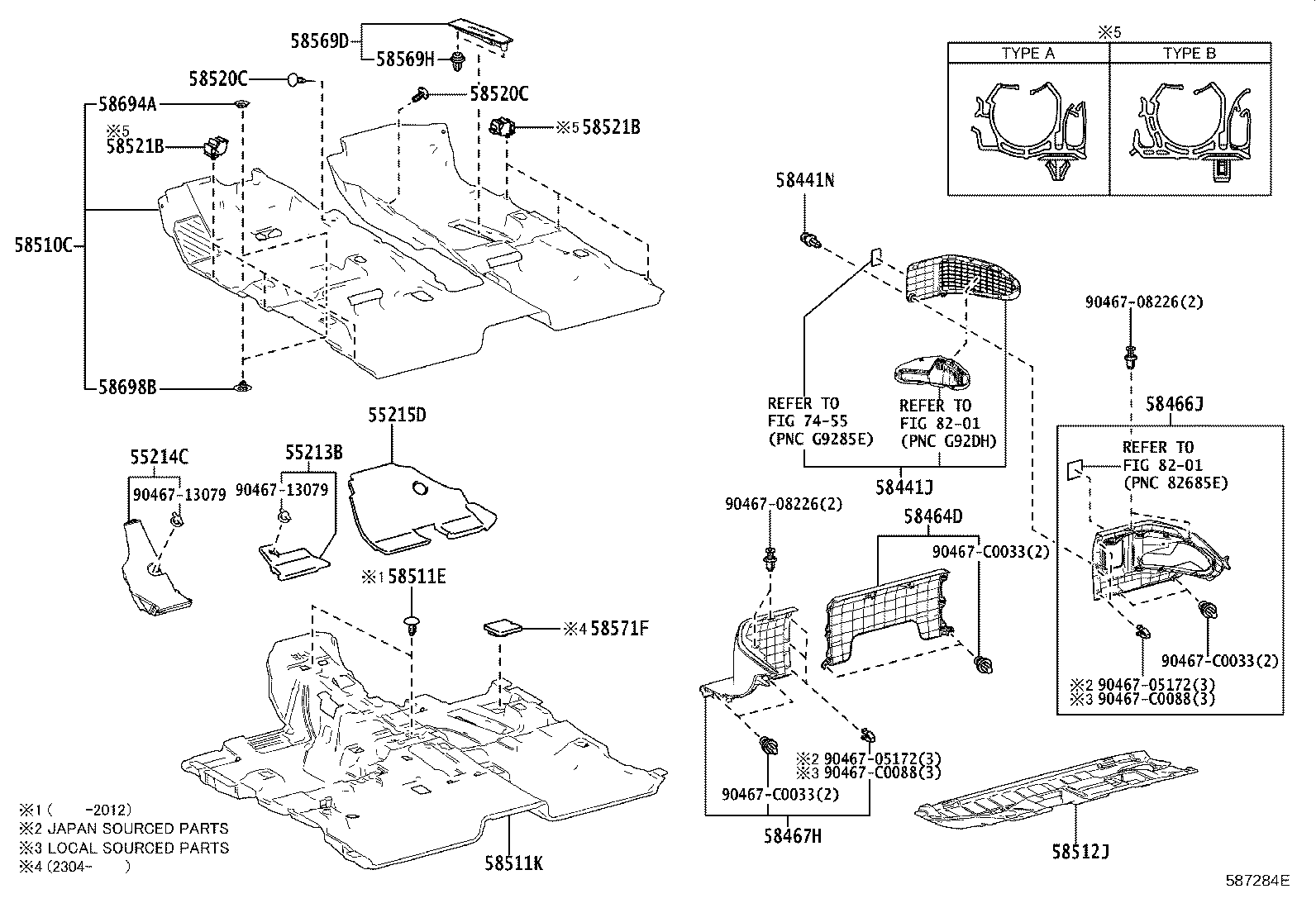

Figure 587283B 587283B 2019-11 → — Figure 587284E 587284E 2019-11 → — Figure 587909 587909 2019-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441J Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58464D Board, Battery Service Cover
58466J Board, Battery Service Cover, NO.2
58467H Board, Battery Service Cover, NO.3
58510C Carpet Assy, Front Floor, Front
58510H Mat Assy, Floor
58511E Clip(FOR FRONT FLOOR MAT)
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58571F Pad, Front Floor, Front
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
