Toyota RAV4 (SFTM)
2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General
Supported model
Data version 2025-01

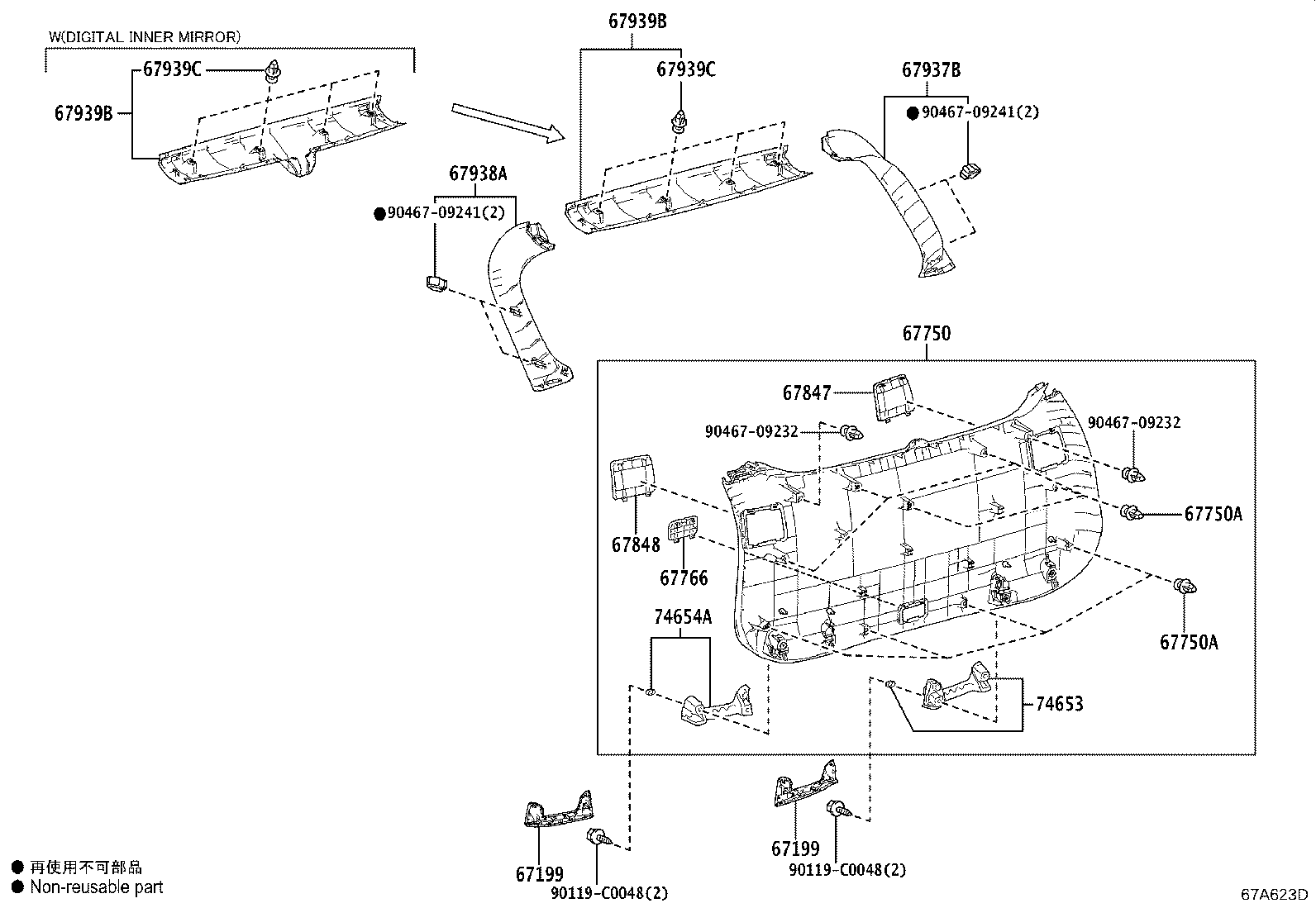

Back Door Panel & Glass
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67199 | Cover, Back Door Handle |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67816D | Sheet, Back Door Panel Silencer |
| 67837L | Seal, Door Dust Proof |
| 67837N | Seal, Back Door Dust Proof |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 74653 | Grip, Back Door Assist, RH |
| 74654A | Grip, Back Door Assist, LH |
| 75575D | Moulding, Back Window, Lower |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76802E | Garnish Sub-assy, Back Door, Outside Lower |
| 76817 | Clip, Back Door Outside Garnish |
| 76821 | Protector, Back Door Garnish Moulding, Upper |
| 76822A | Protector, Back Door Garnish Moulding, Lwr |
| 76823 | Protector, Back Door Garnish Moulding, RH |
| 76824 | Protector, Back Door Garnish Moulding, LH |
| 76825B | Protector, Back Door Outside Garnish |
| 76826A | Retainer, Back Door Garnish, NO.1 |
| 76827A | Retainer, Back Door Garnish, NO.2 |
| 76881B | Protector, Back Door Lower Moulding, RH |
| 76882B | Protector, Back Door Lower Moulding, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
