Toyota RAV4 (SFTM)
2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General
Supported model
Data version 2025-01

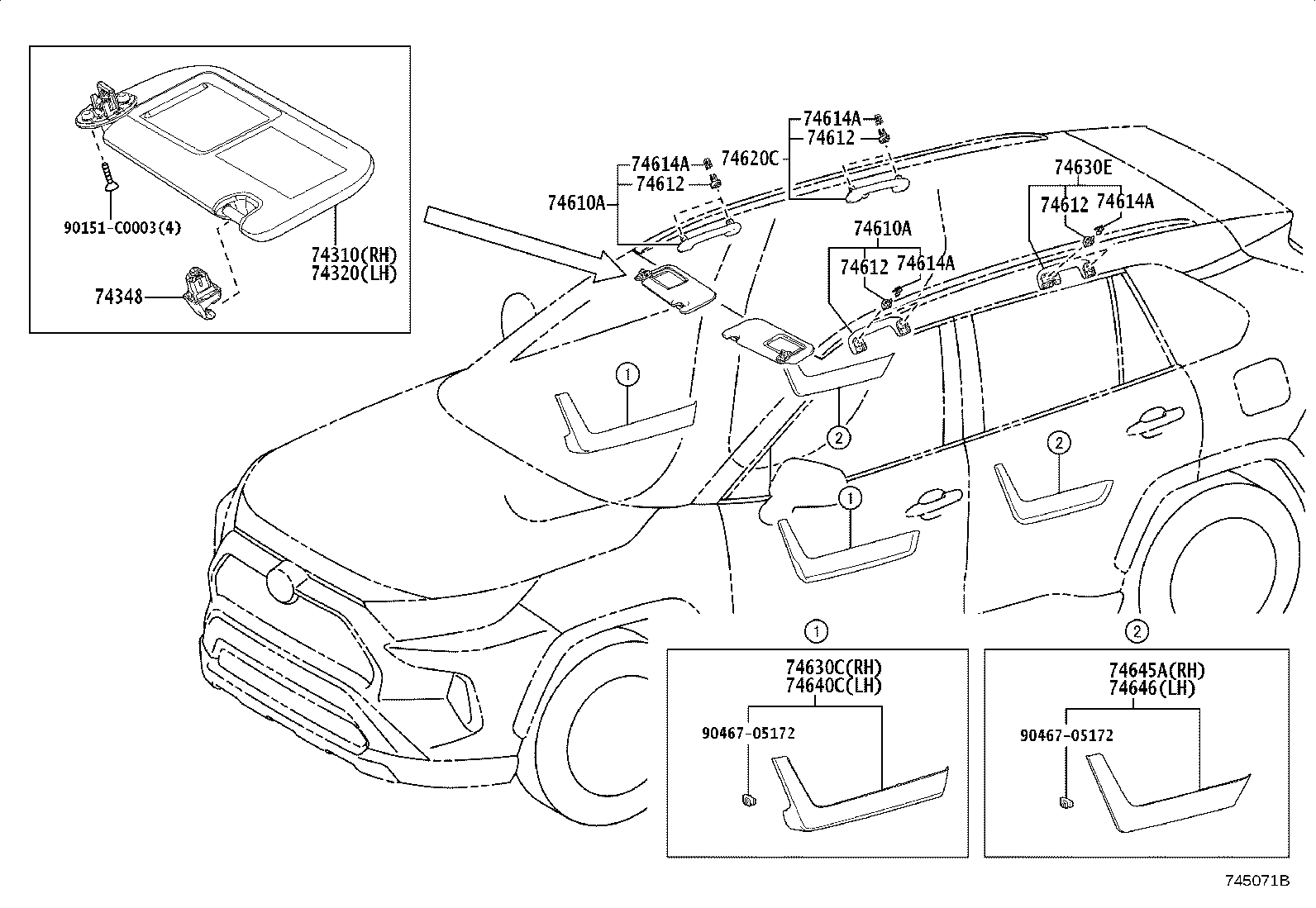

Armrest & Visor
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74614A | Plate, Assist Grip Lock |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630C | Grip Assy, Door Assist, RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74640C | Grip Assy, Door Assist, LH |
| 74645A | Cover, Door Assist Grip, RH |
| 74646 | Cover, Door Assist Grip, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
