Toyota RAV4 (SFTM)

2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 3 illustrations

Illustrations

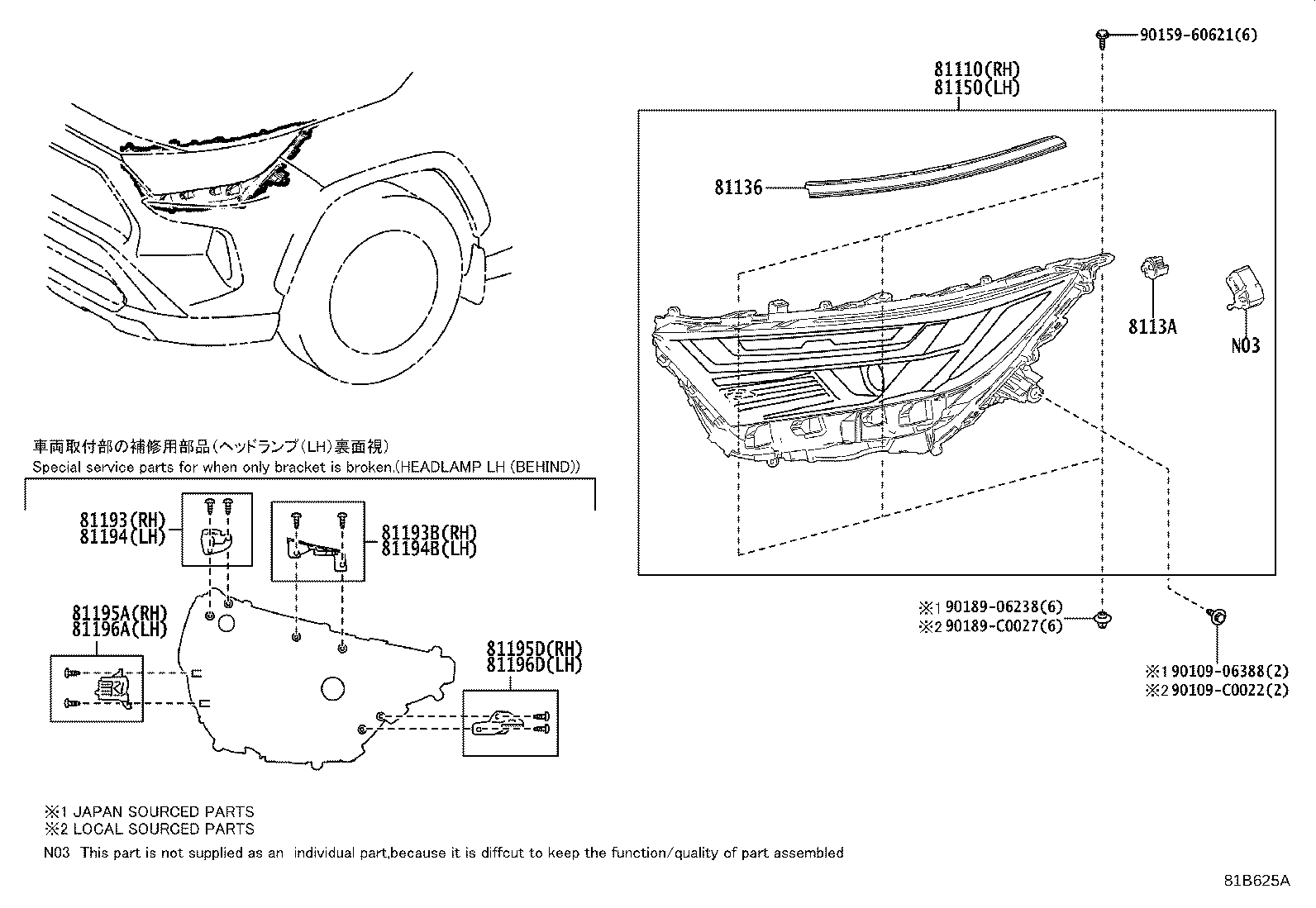

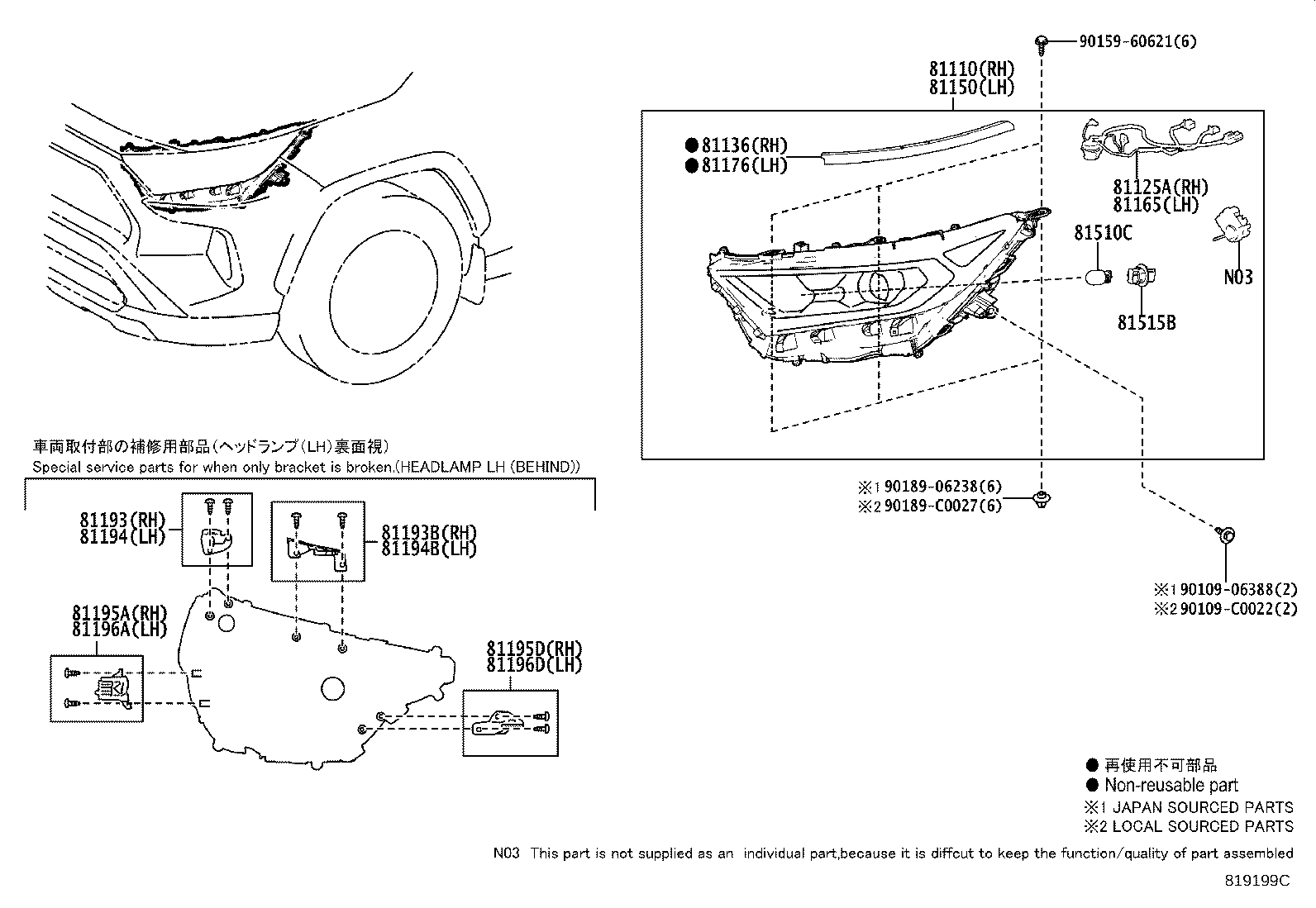

Figure 819198C 819198C 2019-11 → — Figure 819199C 819199C 2019-11 → 2023-03 Figure 81B625A 81B625A 2023-04 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81125A Cord, Headlamp, RH
81136 Protector, Headlamp, NO.1 RH
8113A Led, Headlamp Front Turn Signal
81150 Headlamp Assy, LH
81165 Cord, Headlamp, LH
81176 Protector, Headlamp, NO.1 LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
