Toyota RAV4 (SFTM)
2019-11 → present · chassis AXAH5#,AXAL5#.MXAA5# · catalogue 660330 · General
Supported model
Data version 2025-01
Meter
5 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

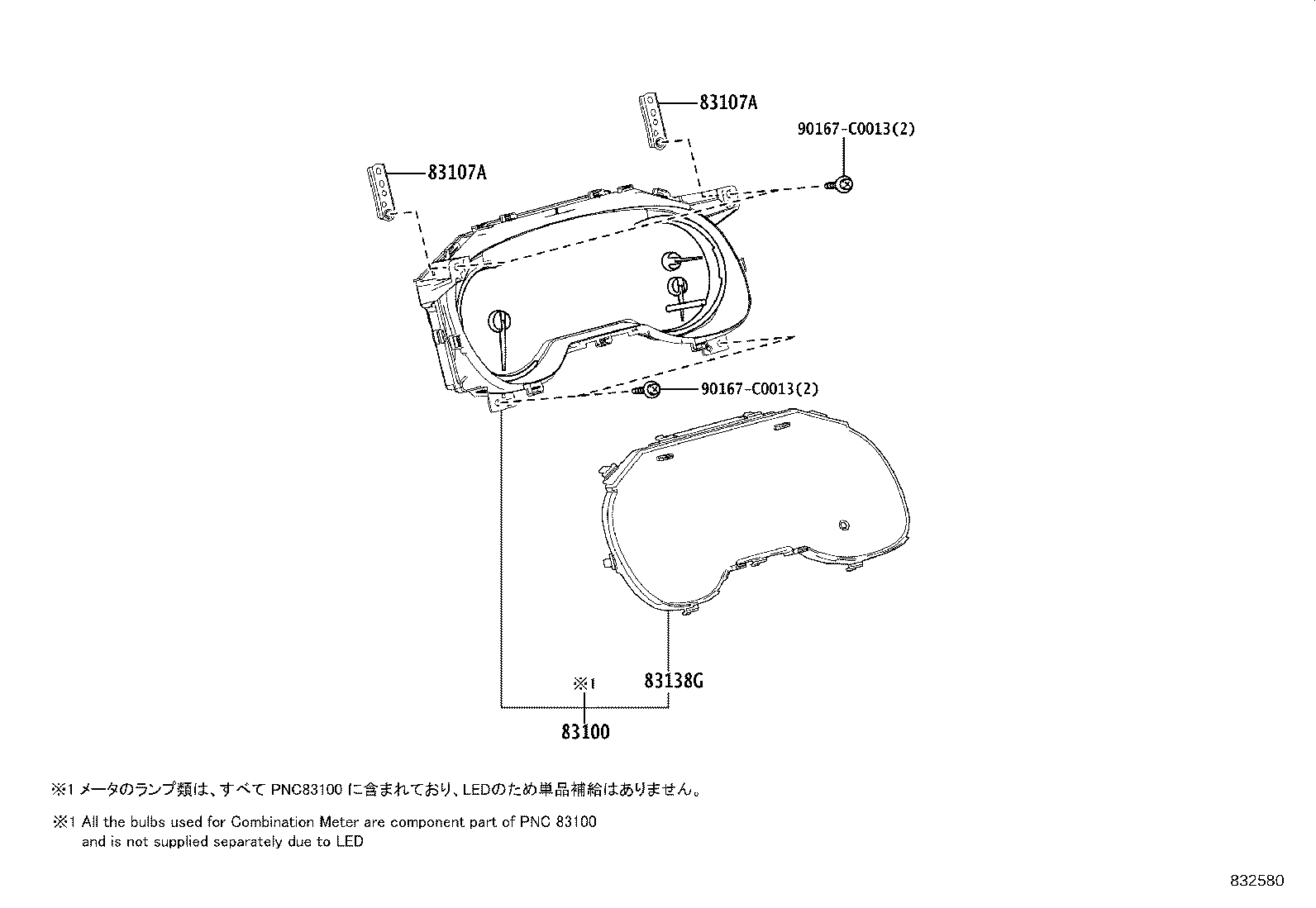

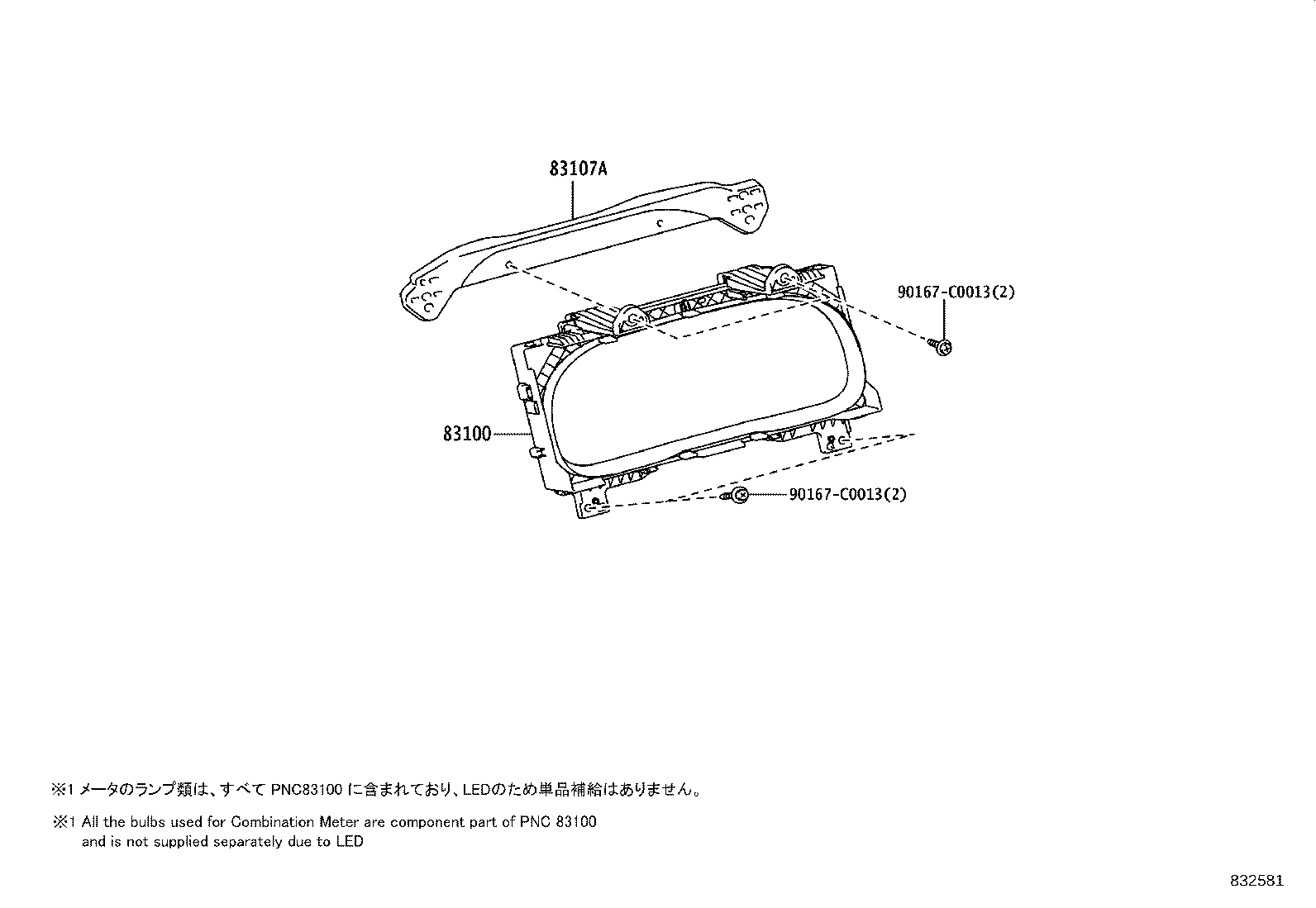

| 83100 | Meter Assy, Combination |
| 83107A | Bracket Sub-assy, Meter, NO.1 |

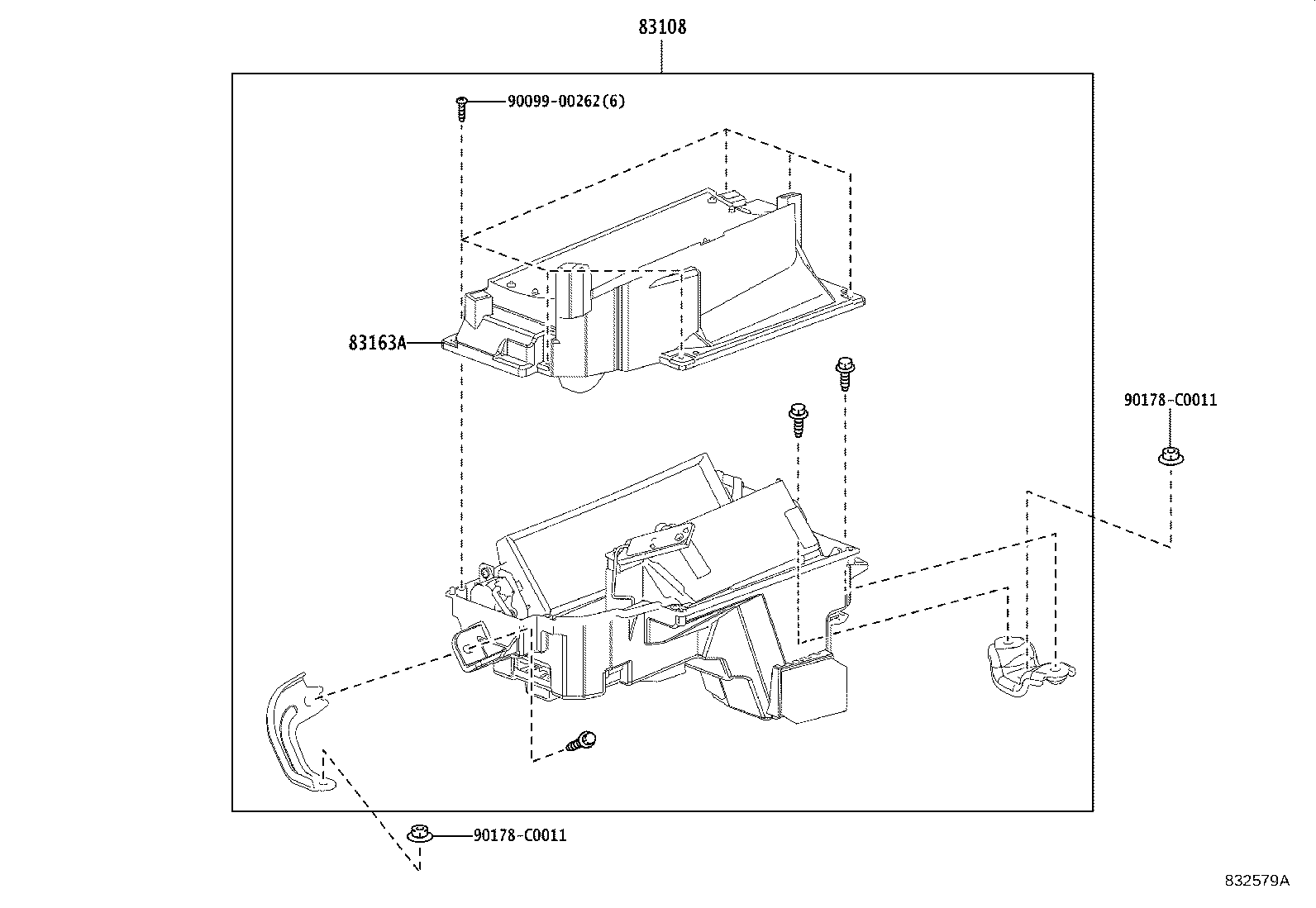

| 83108 | Mirror Sub-assy, Meter |
| 83138G | Glass, Combination Meter |
| 83163A | Plate, Combination Meter Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
