Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

Figure 867873A

867873A 2019-11 → 2023-03

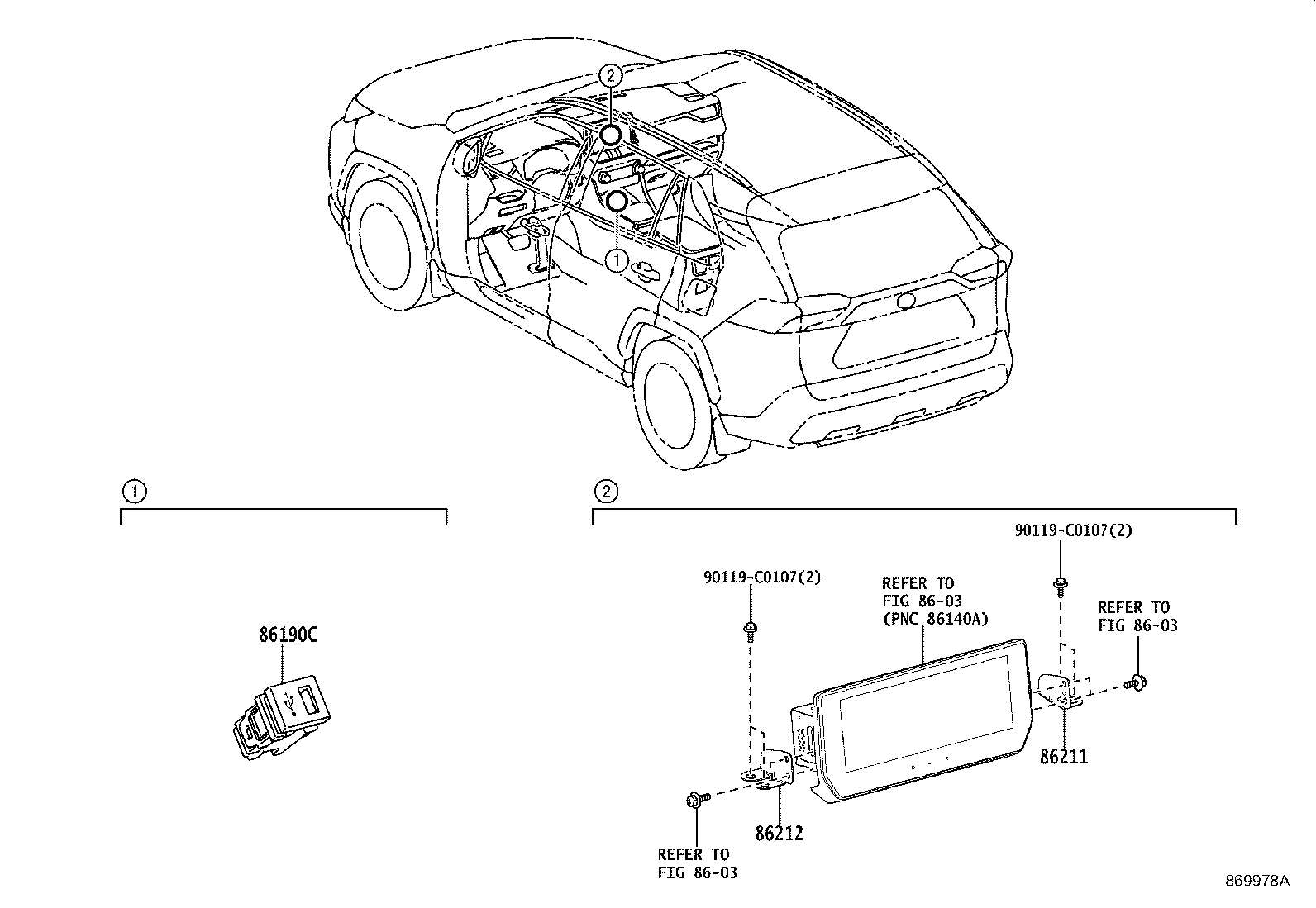

Figure 869978A

869978A 2023-04 → —

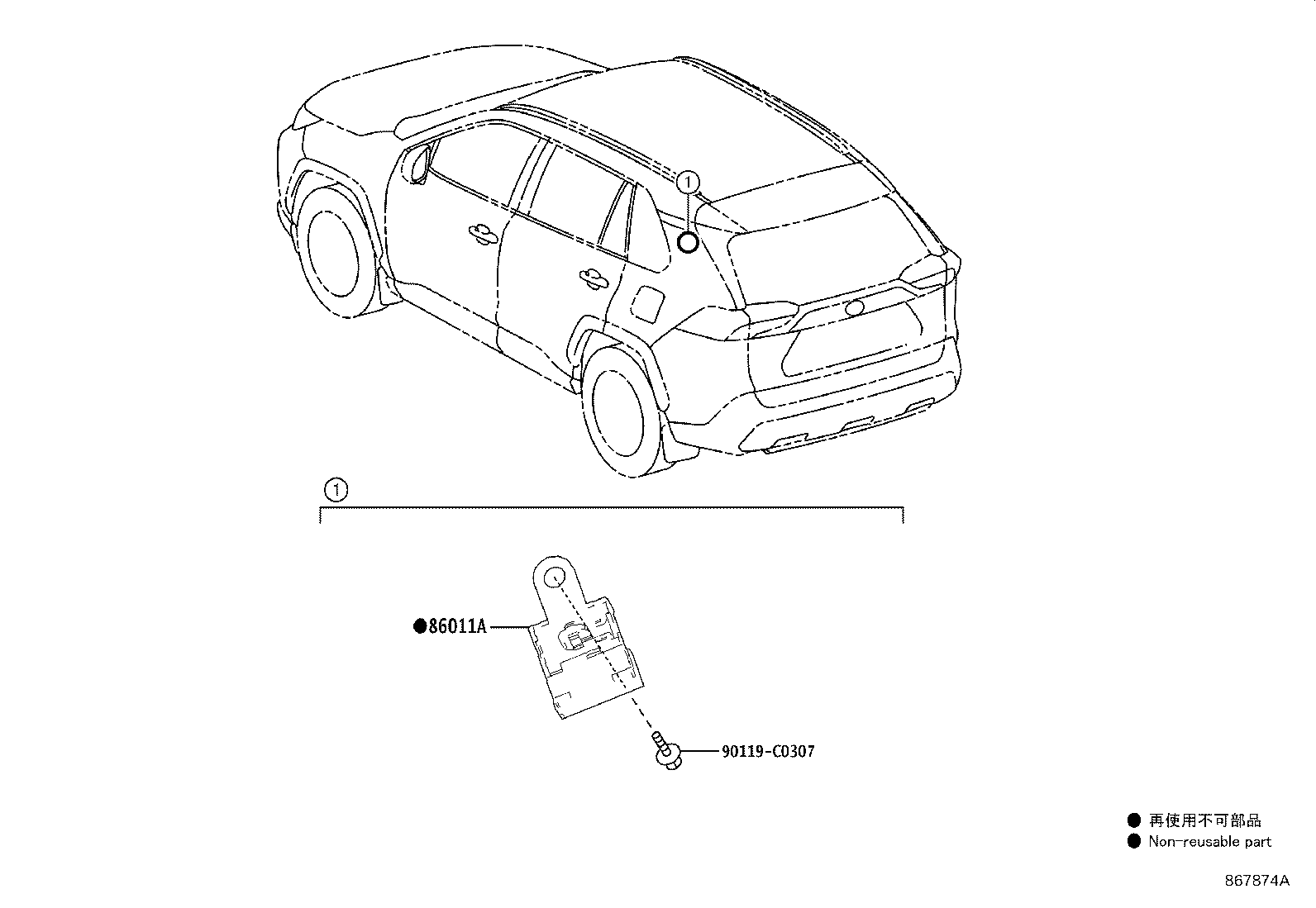

Figure 867874A

867874A 2019-11 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86120	Receiver Assy, Radio
86120A	Knob, Radio Receiver Switch
86190C	Adapter Assy, Stereo Jack, NO.1
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
