Navigation & Front Monitor Display

4 part groups · 3 illustrations

Illustrations

Figure 867875A

867875A 2019-11 → 2021-04

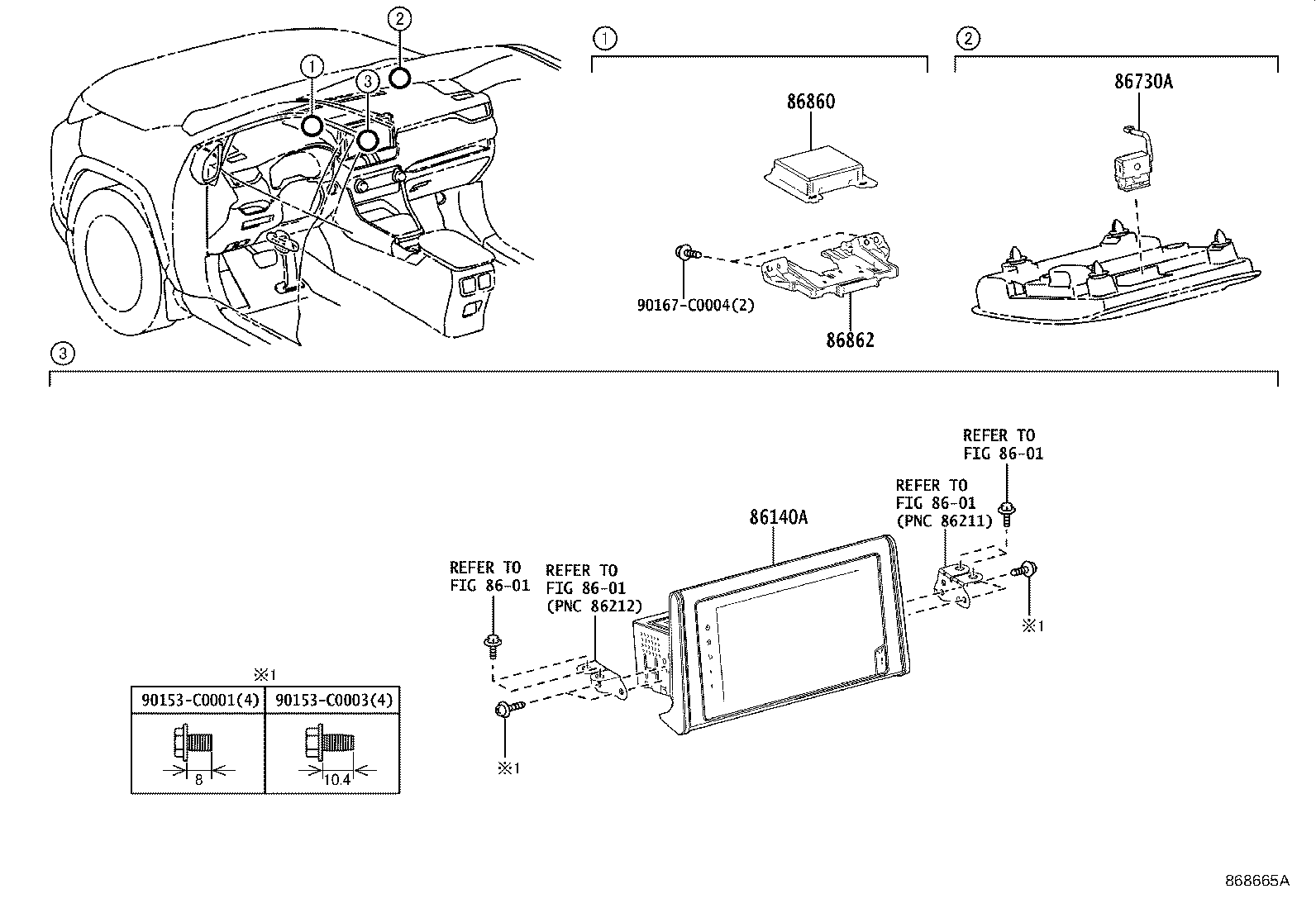

Figure 868665A

868665A 2021-04 → 2023-04

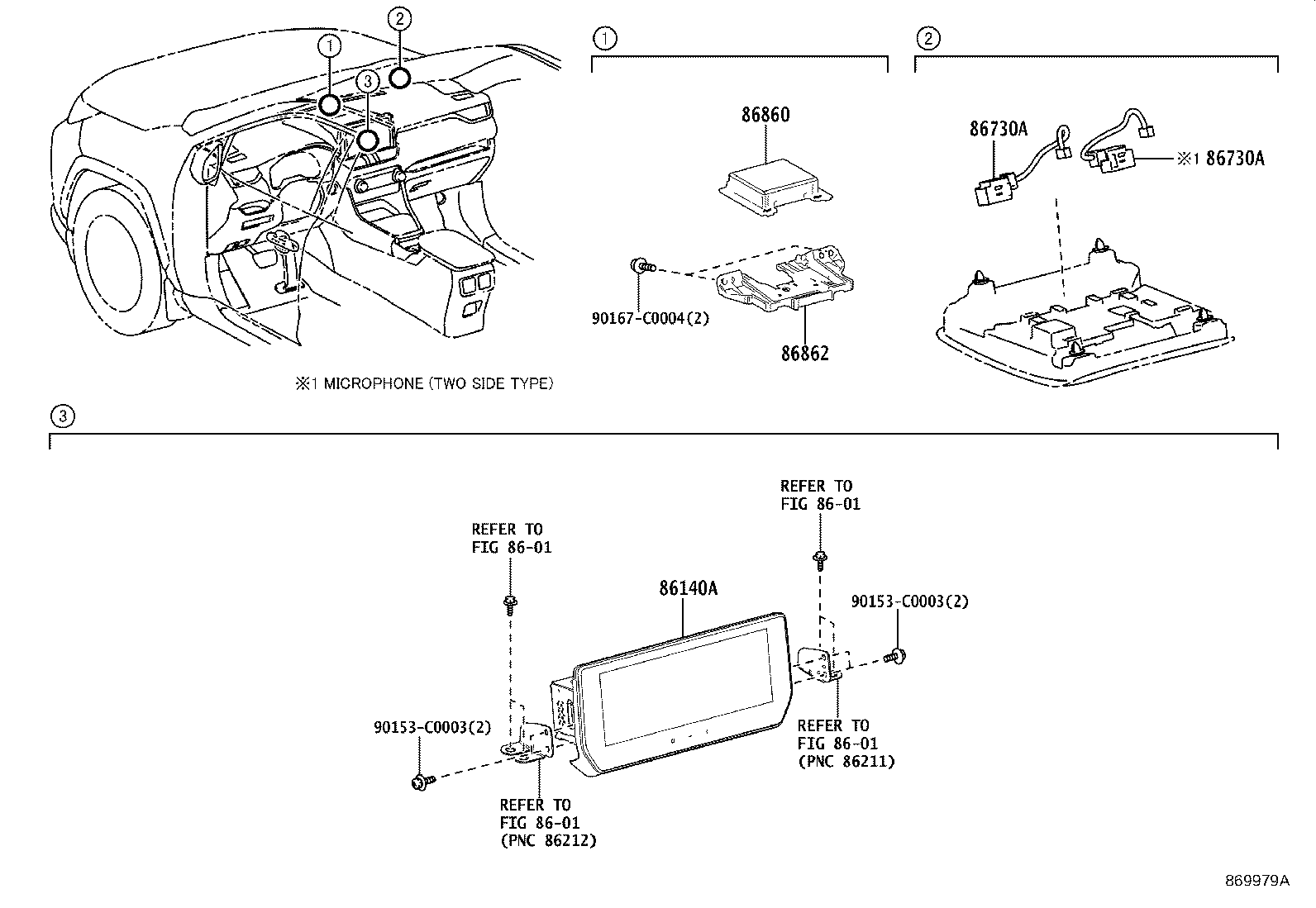

Figure 869979A

869979A 2023-04 → —

Part groups

PNC	Description
86140A	Receiver Assy, Radio & Display
86730A	Microphone Assy, Telephone
86860	Antenna Assy, Navigation
86862	Bracket, Navigation Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
