Toyota Blizzard

1982-01 → 1984-04 · chassis LD10 · catalogue 661210 · General

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

9 part groups · 2 illustrations

Illustrations

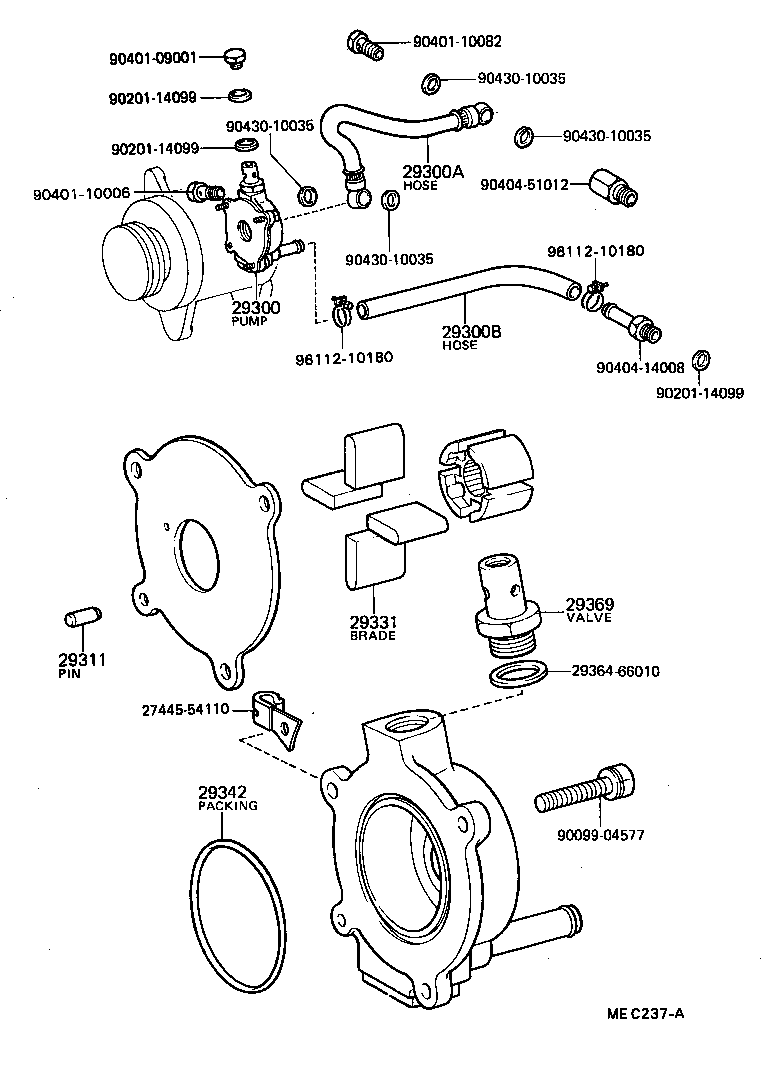

Figure ME8563 ME8563 1982-01 → 1982-10 Figure MEC237A MEC237A 1982-10 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29300E Cover, Oil Hose
29311 Pin, Vacuum Pump Dowel, NO.1
29322A Seal, Vacuum Pump Oil
29331 Blade, Vacuum Pump, A
29342 Packing, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
