Toyota Blizzard
1982-01 → 1984-04 · chassis LD10 · catalogue 661210 · General
Discontinued model
Data version 1984-11
Switch & Relay & Computer
41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

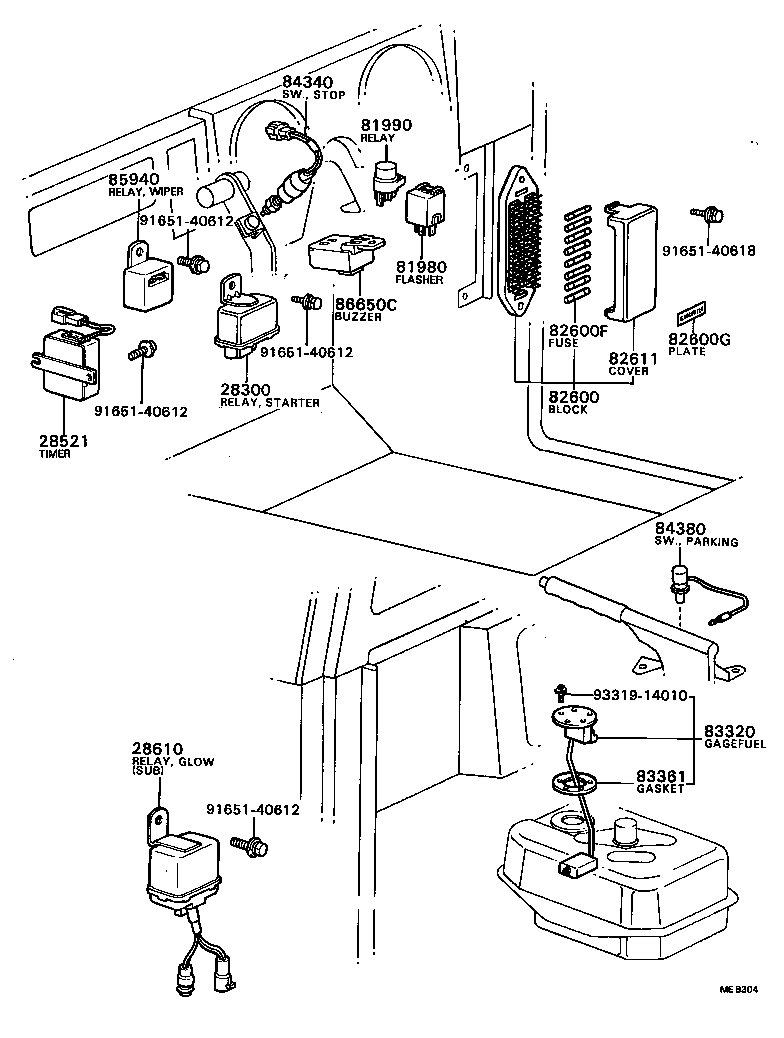

| 27700 | Regulator Assy, Generator |
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28631 | Sensor, Glow Plug Current |
| 81980 | Flasher Assy, Turn Signal |
| 81990 | Relay Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82611 | Cover, Fuse Block |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

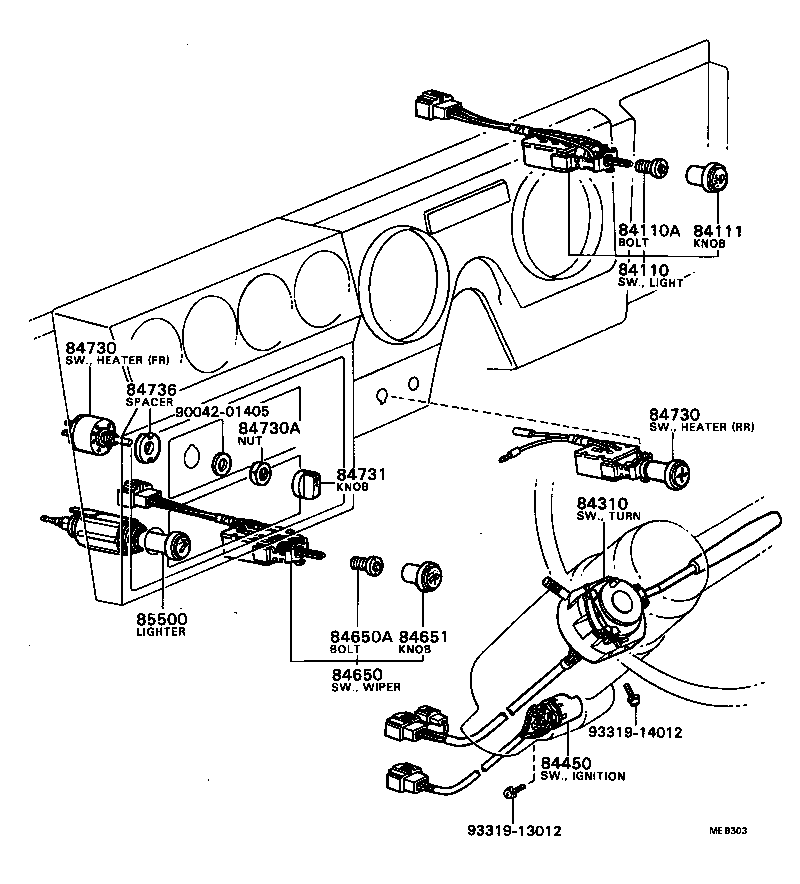

| 84110 | Switch Assy, Light Control, NO.1 |
| 84110A | Bolt OR Nut, Light Control Switch Set |
| 84111 | Knob, Light Control Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84210T | Sensor Assy, Shift Point |
| 84310 | Switch Assy, Turn Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84650 | Switch Assy, Windshield Wiper |
| 84650A | Bolt OR Nut, Windshield Wiper Switch Set |
| 84651 | Knob, Windshield Wiper Switch |
| 84730 | Switch Assy, Heater Blower |
| 84730A | Nut, Heater Blower Switch |
| 84731 | Knob, Heater Blower Switch |
| 84736 | Spacer, Heater Blower Switch |
| 85500 | Lighter Assy, Cigarette |
| 85940 | Relay Assy, Windshield Wiper |
| 86650C | Buzzer Assy, Sedimenter Warning |
| 89427 | Switch, Temperature Detect |
| 89429 | Sensor, Oil Temperature |
| 89492 | Sensor, Electrolyte Level |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
