Toyota RAV4

2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General

Supported model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

9 part groups · 3 illustrations

Illustrations

Figure 152142E

152142E 2012-12 → —

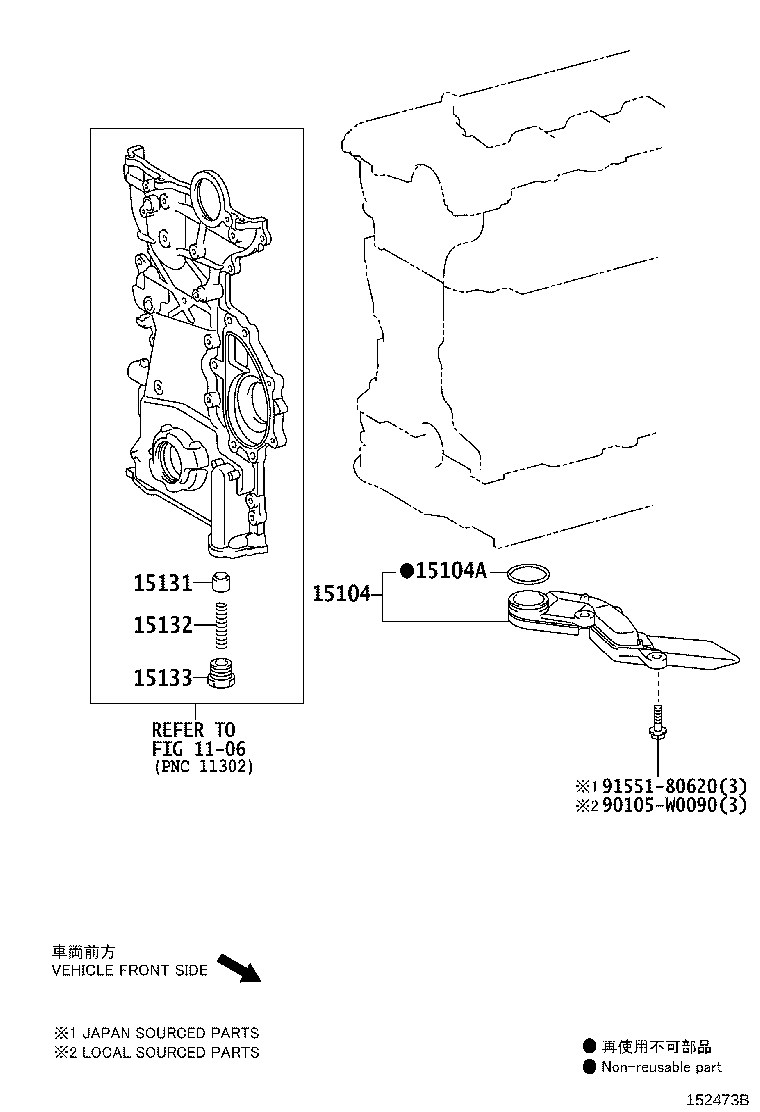

Figure 152473B

152473B 2015-10 → —

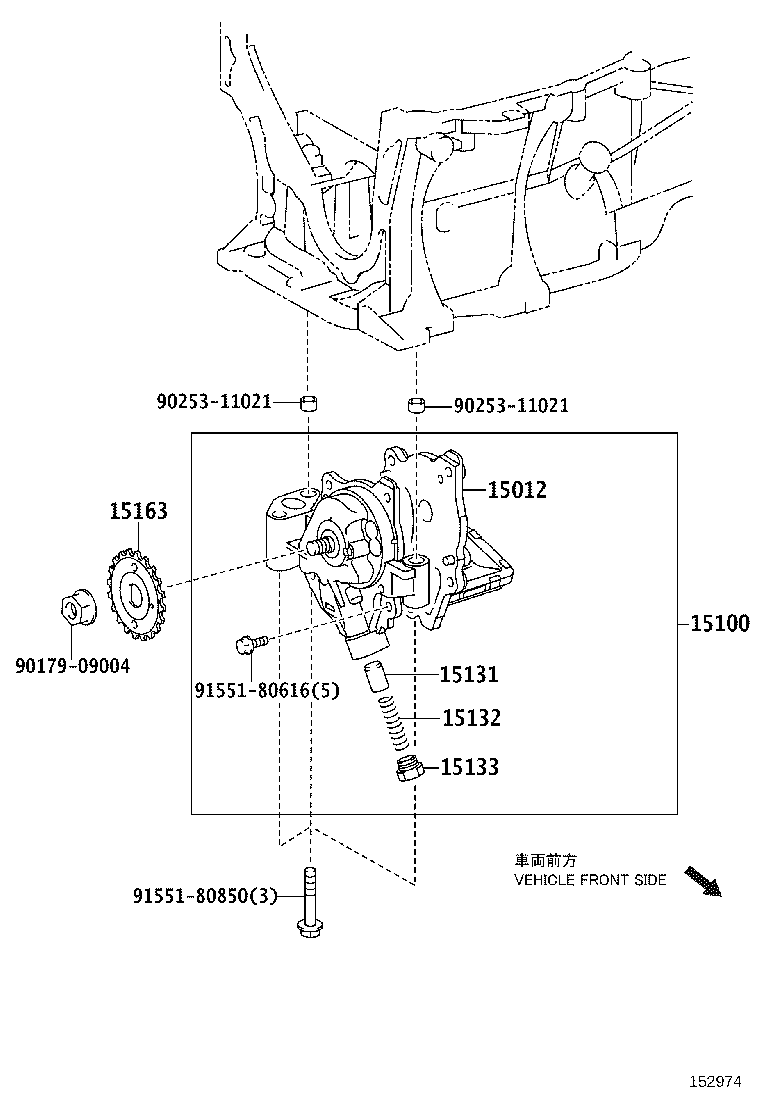

152974 2012-12 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15100	Pump Assy, Oil
15104	Strainer Sub-assy, Oil
15104A	Ring, O(FOR OIL STRAINER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15163	Gear, Oil Pump Drive Shaft

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
