Toyota RAV4

2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General

Supported model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

7 part groups · 2 illustrations

Illustrations

Figure 152025E

152025E 2012-12 → —

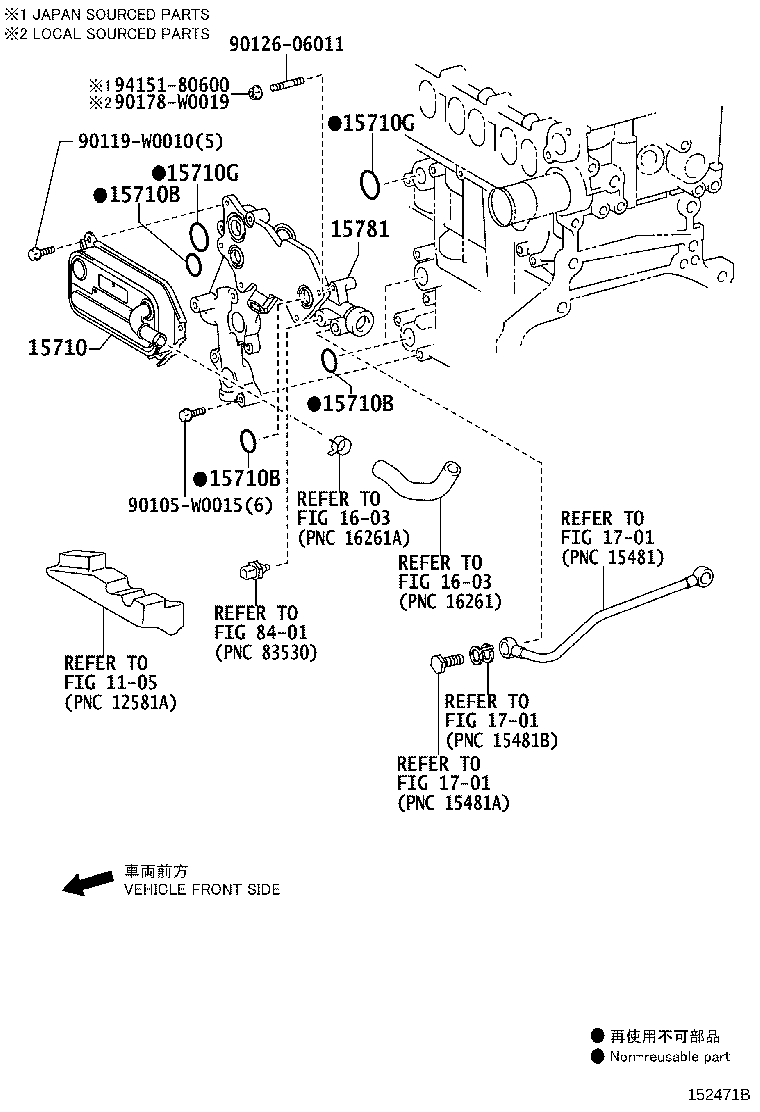

Figure 152471B

152471B 2015-10 → —

Part groups

PNC	Description
15695	Bolt, Oil Cooler Union
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15710G	Ring, O, NO.2
15725	Gasket, Oil Cooler Cover
15781	Bracket, Oil Cooler, NO.1
15785	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
