Toyota RAV4

2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

27 part groups · 6 illustrations

Illustrations

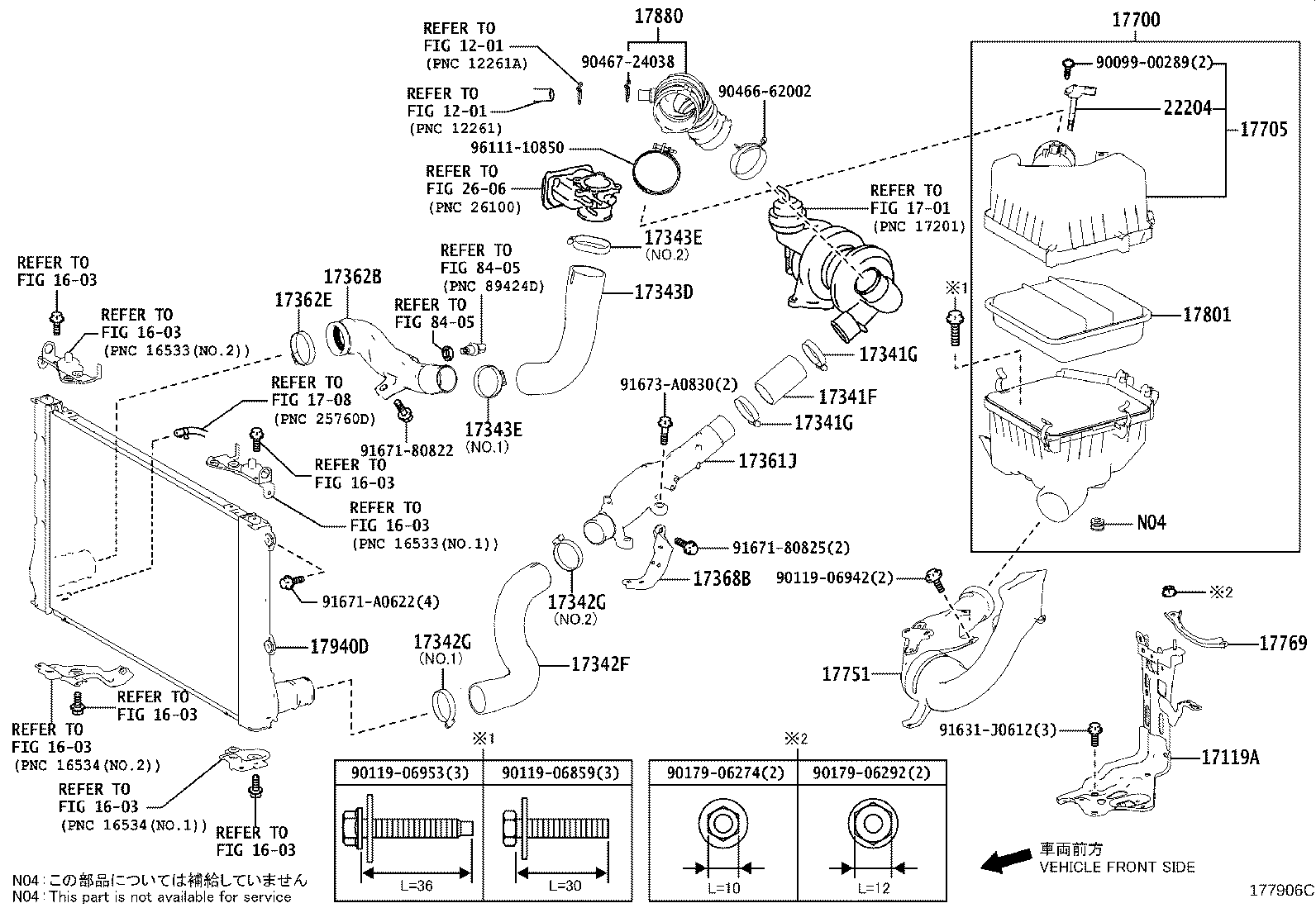

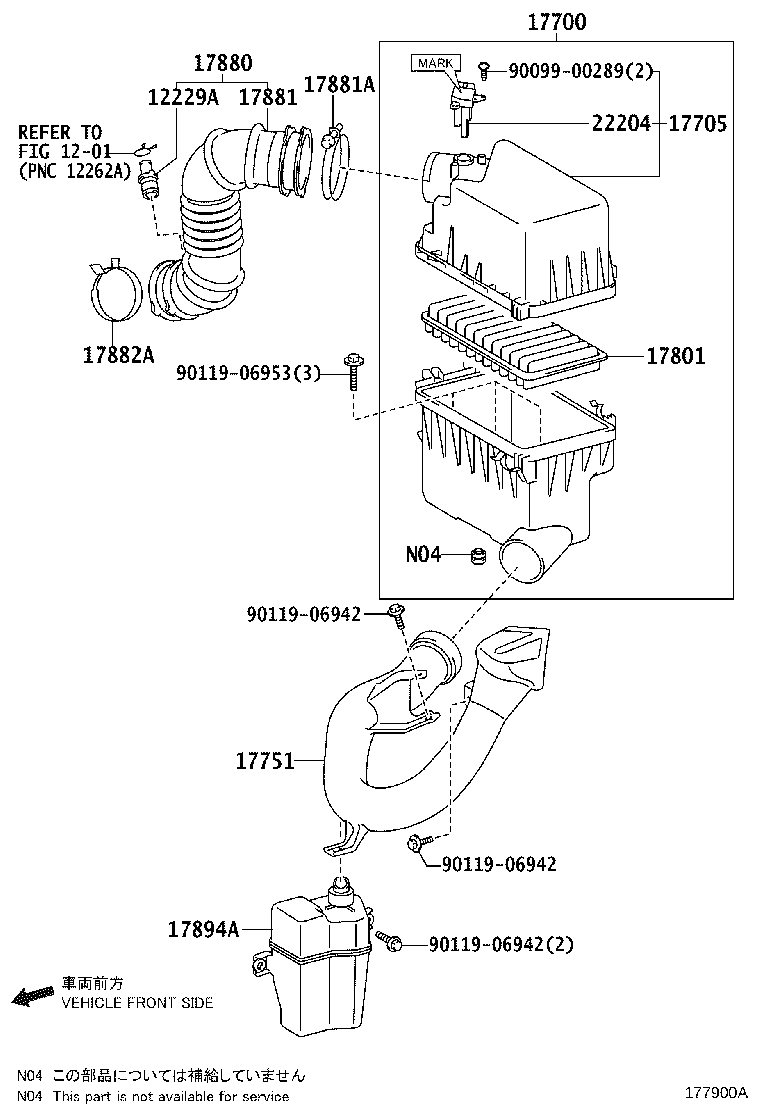

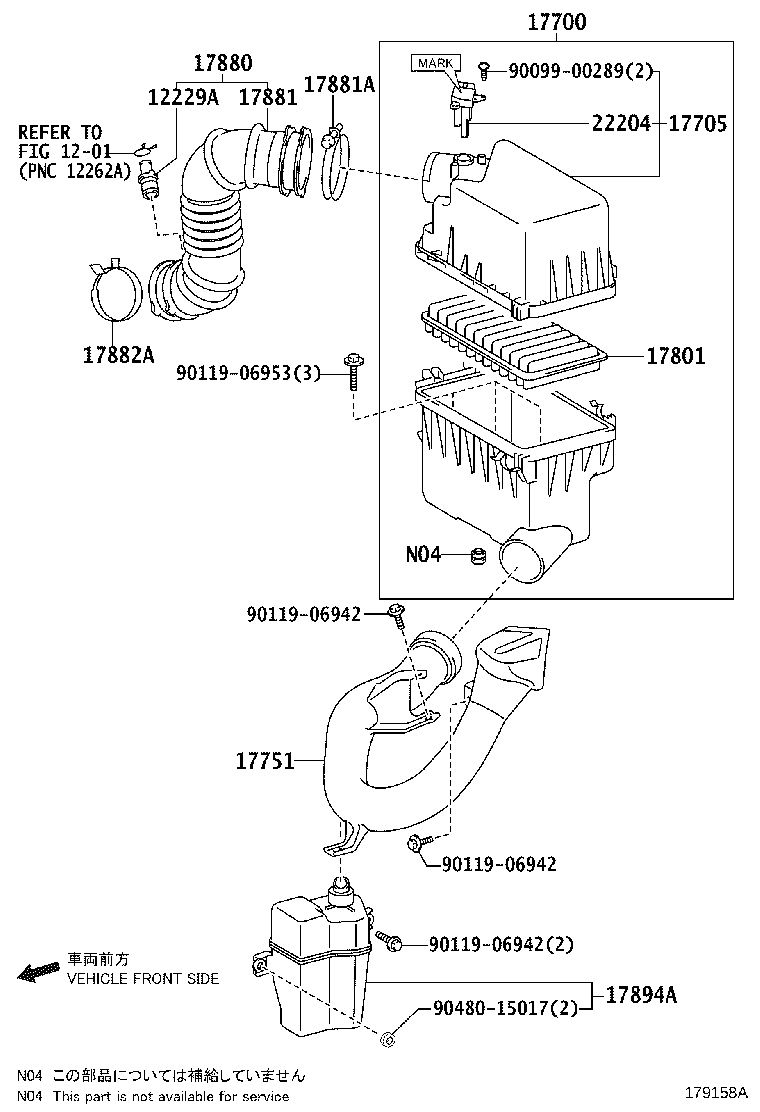

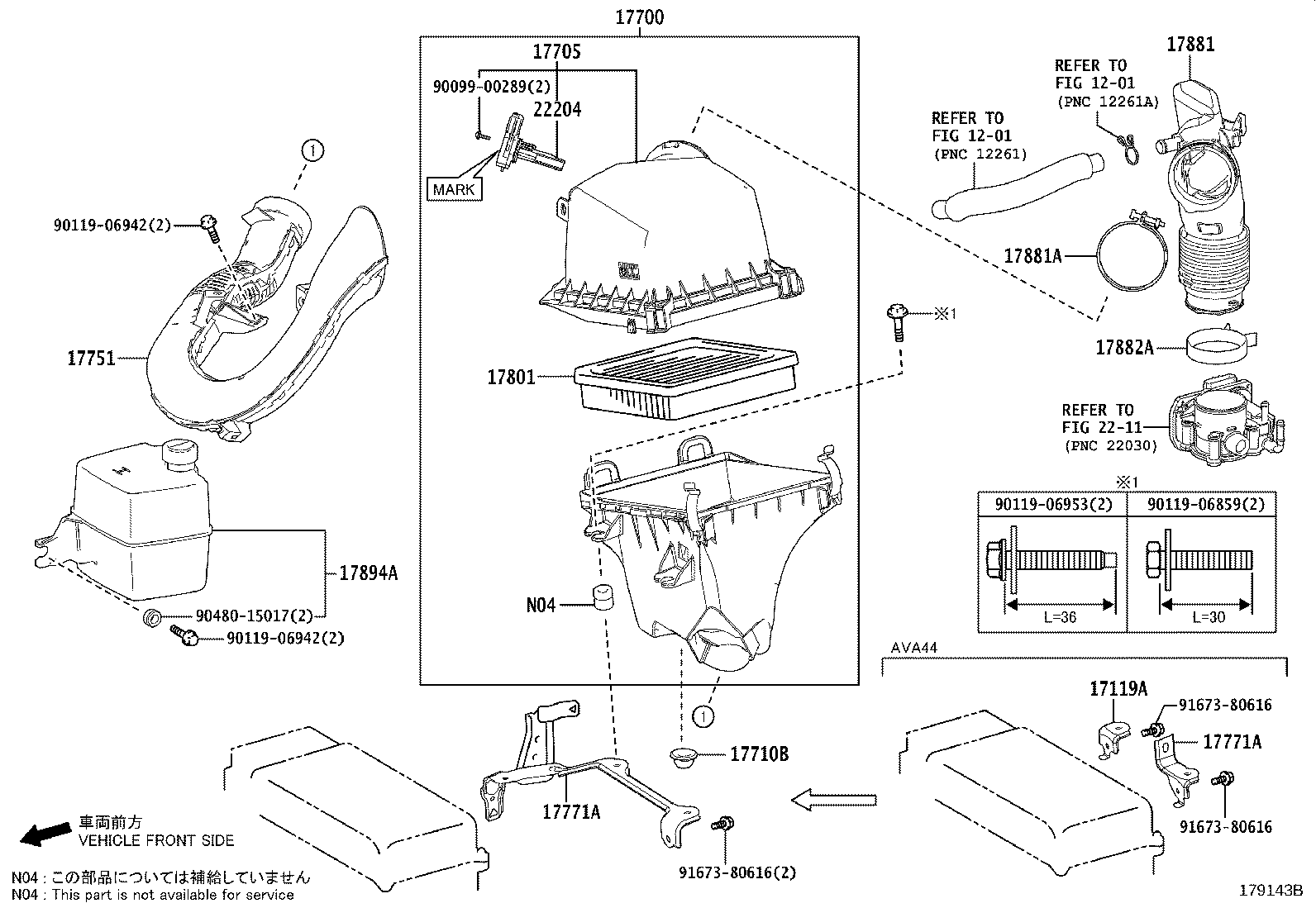

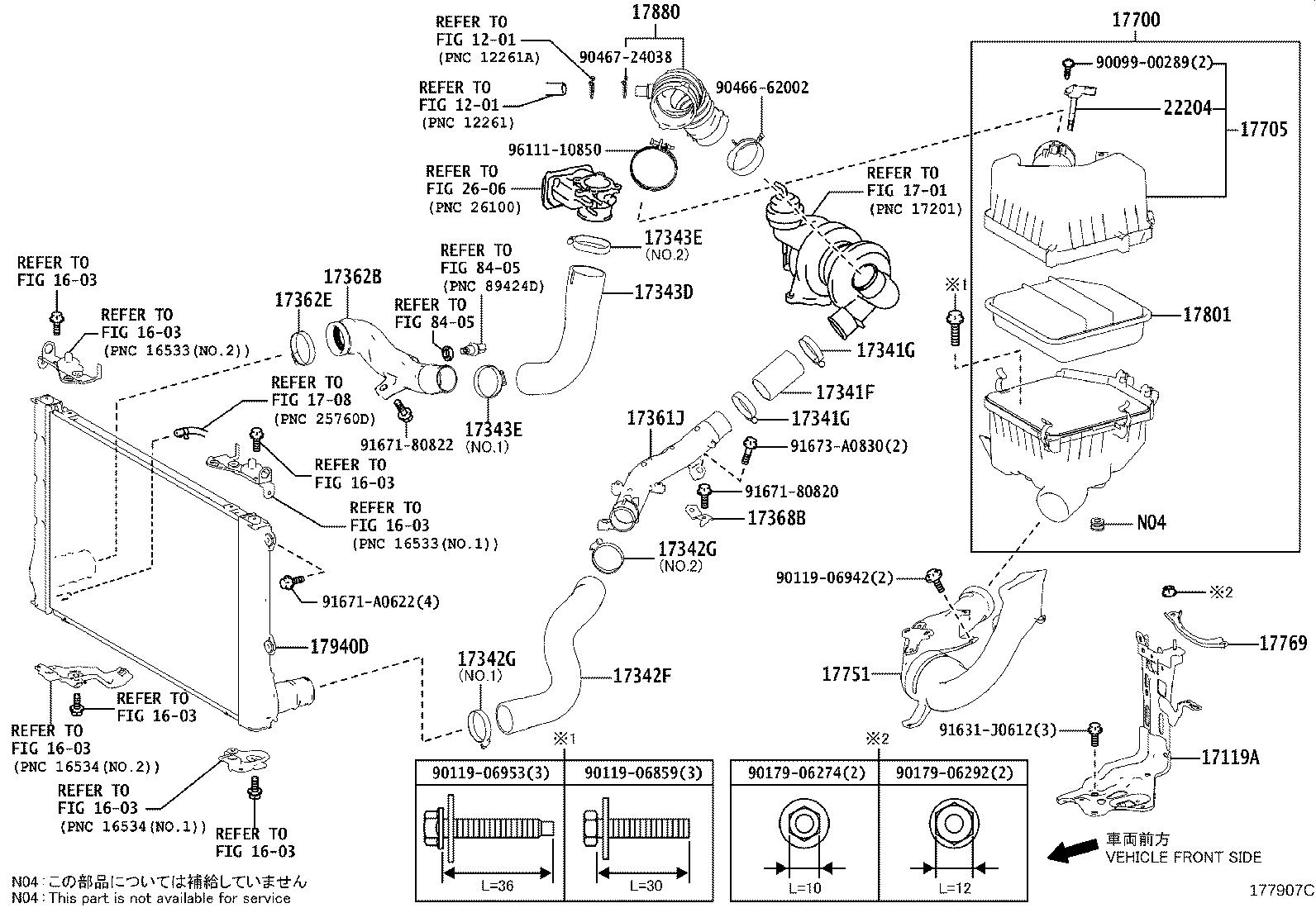

Figure 179141B 179141B 2012-12 → — Figure 177906C 177906C 2015-10 → — Figure 177907C 177907C 2015-10 → — Figure 179143B 179143B 2015-10 → — Figure 177900A 177900A 2012-12 → 2015-10 Figure 179158A 179158A 2015-10 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17119A Bracket, Air Cleaner
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17368B Support, Air Tube
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17894A Resonator, Intake Air, NO.2
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
