Toyota RAV4
2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General
Supported model
Data version 2019-04

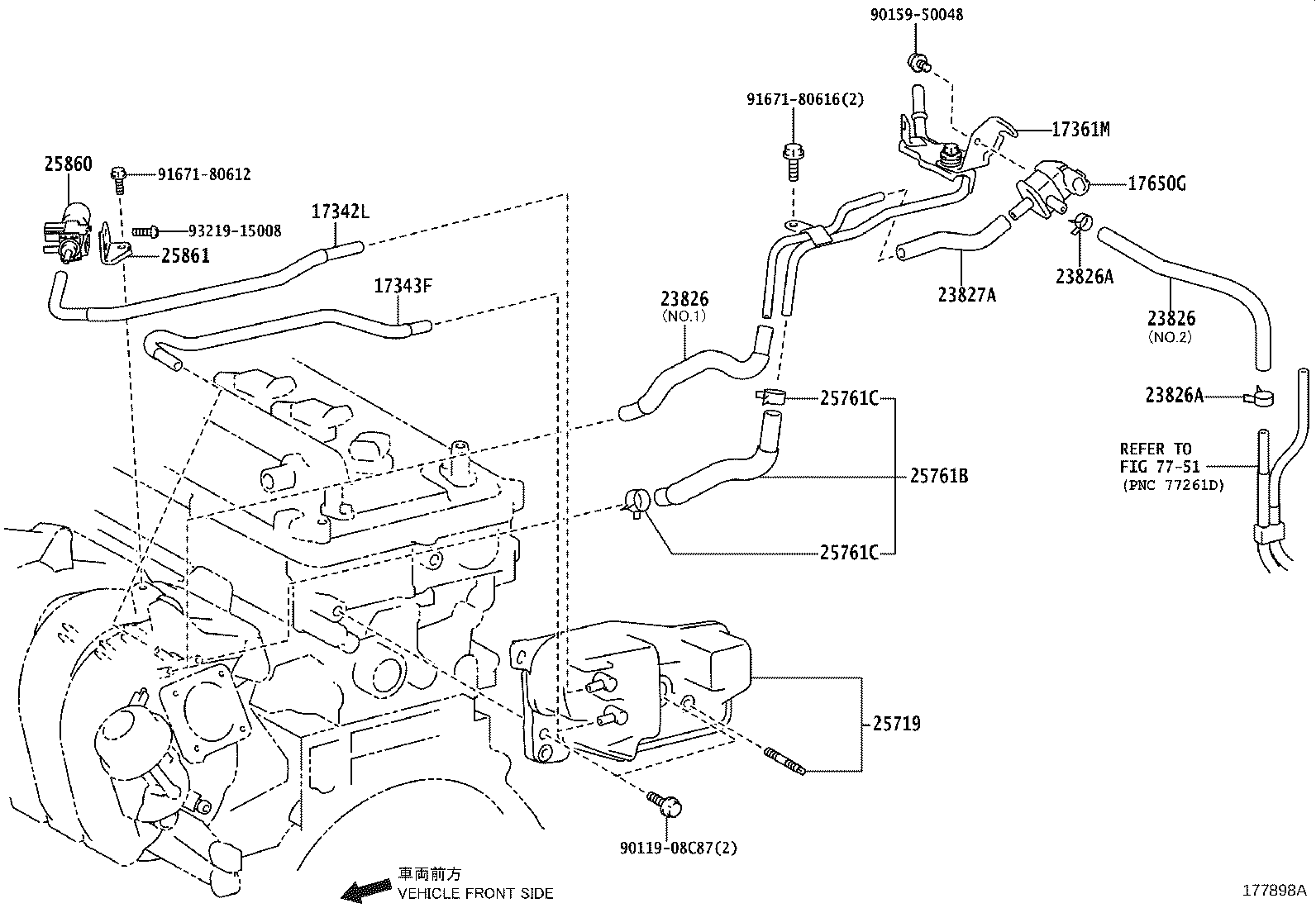

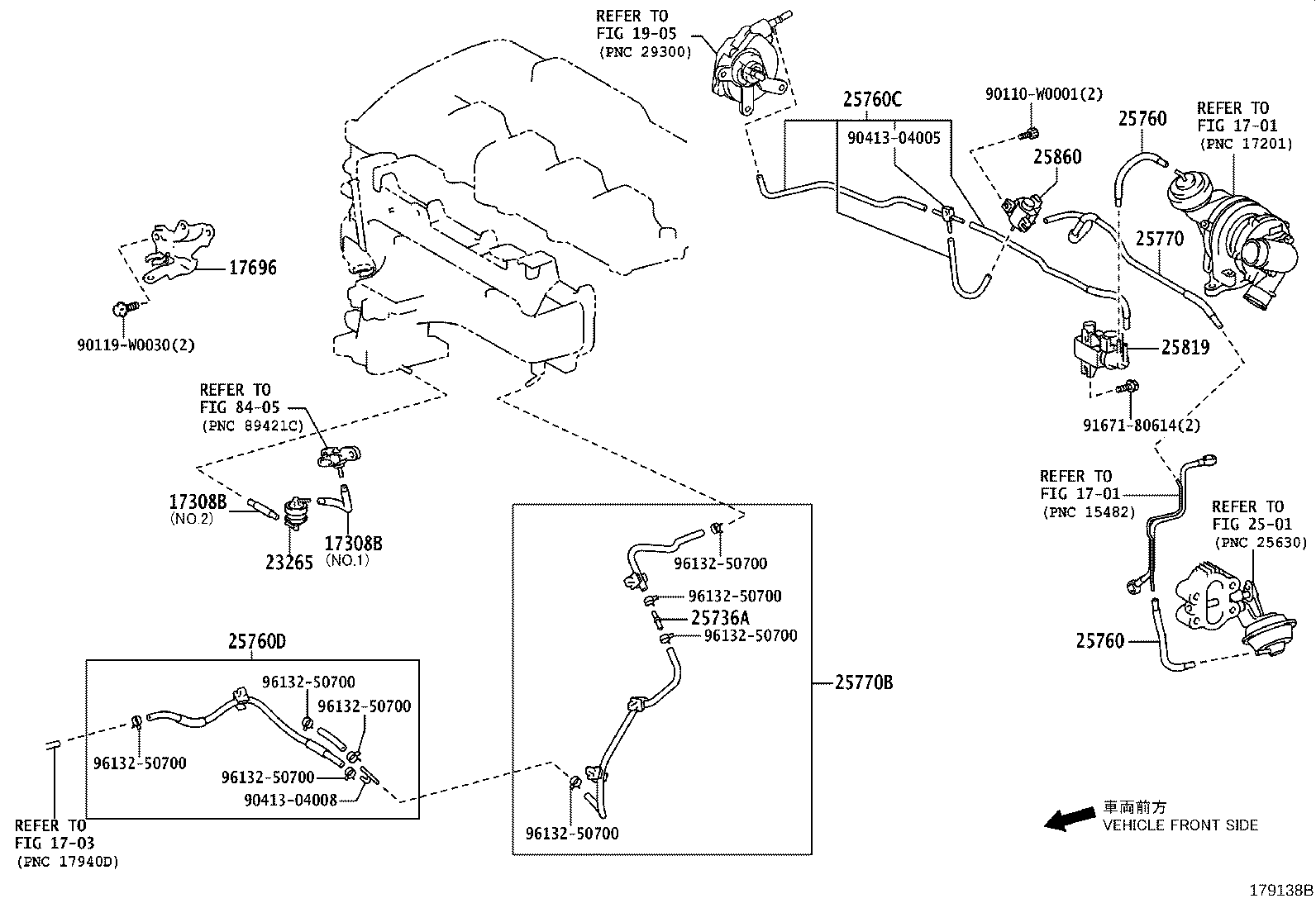

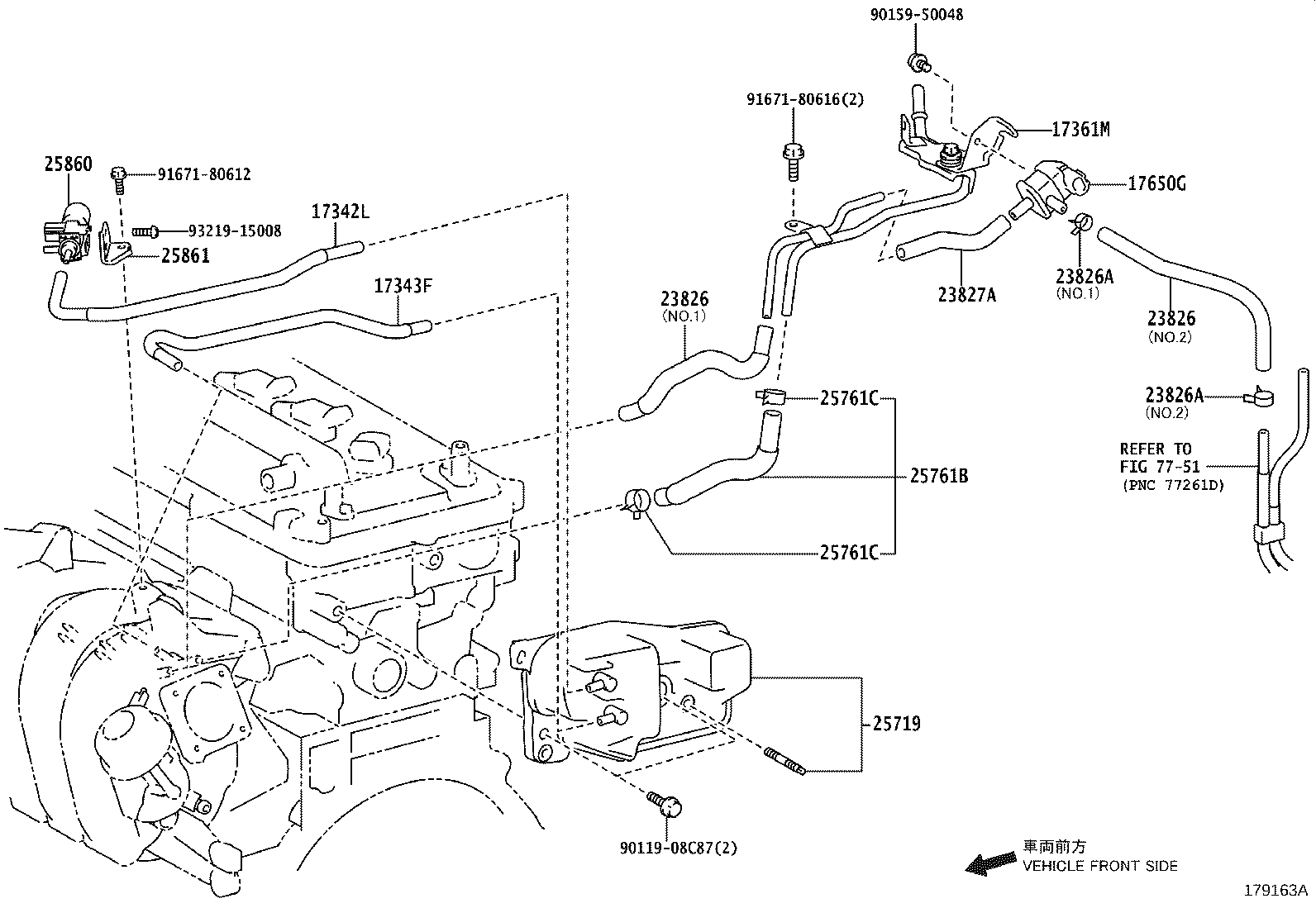

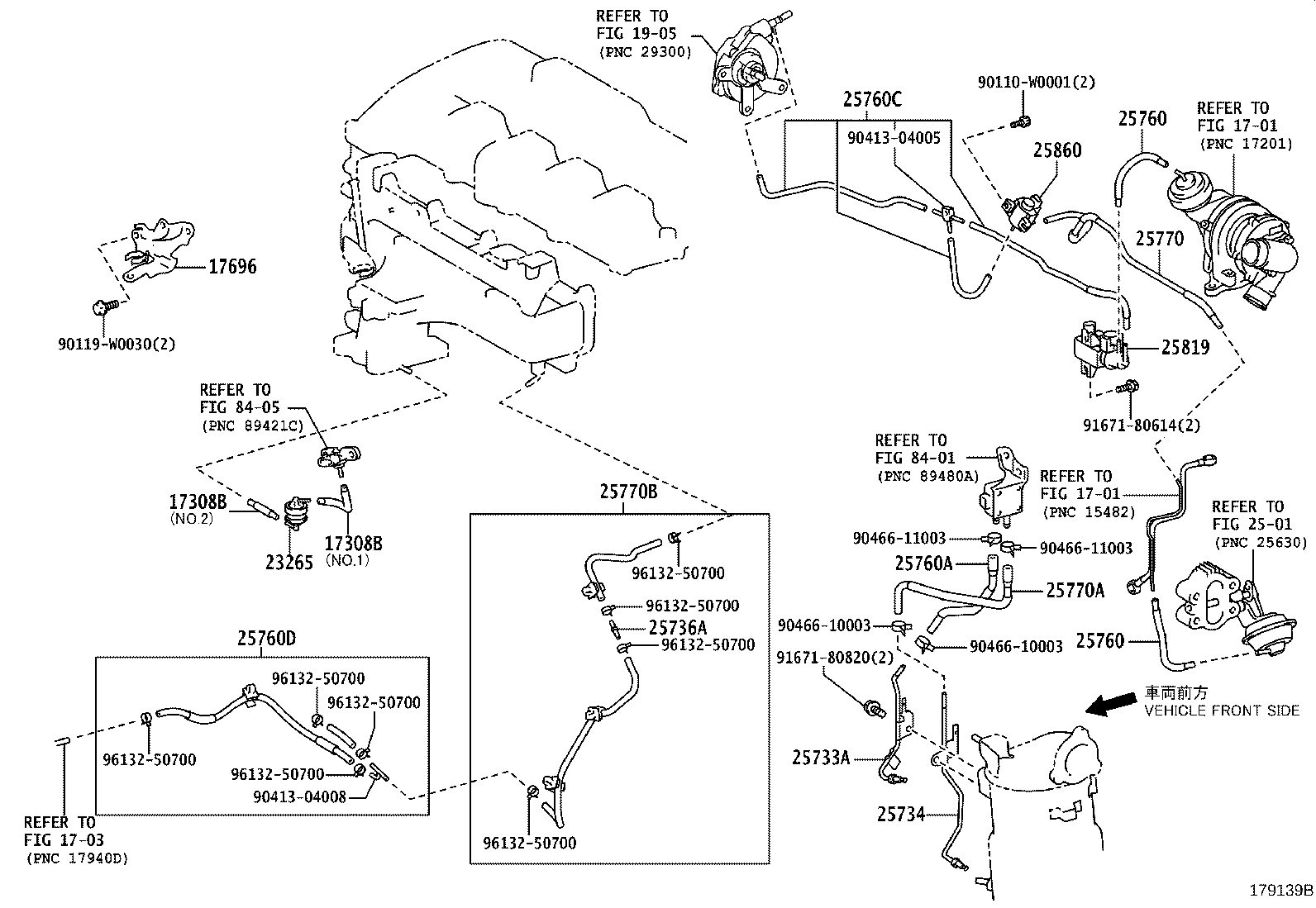

Vacuum Piping
33 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17342L | Hose, Air, NO.2 |
| 17343F | Hose, Air, NO.3 |
| 17361M | Tube, Air |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 17696 | Bracket, Gas Filter |
| 23265 | Filter, Gas, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23830 | Hose Assy, Fuel Vapor Feed, NO.2 |
| 23841G | Clamp, Fuel Hose |
| 25719 | Tank, Vacuum Surge |
| 25733A | Pipe, Vacuum, NO.1 |
| 25734 | Pipe, Vacuum, NO.2 |
| 25736A | Pipe, Vacuum Transmitting, NO.1 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25760A | Hose Assy, Vacuum Transmitting |
| 25760C | Hose Assy, Vacuum Transmitting, NO.3 |
| 25760D | Hose Assy, Vacuum Transmitting, NO.4 |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25761C | Clip(VACCUM TRANSMITTING HOSE NO.1) |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25770A | Hose Assy, Vacuum Transmitting, NO.2 |
| 25770B | Hose Assy, Vacuum Transmitting, NO.3 |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
