Toyota RAV4

2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

22 part groups · 2 illustrations

Illustrations

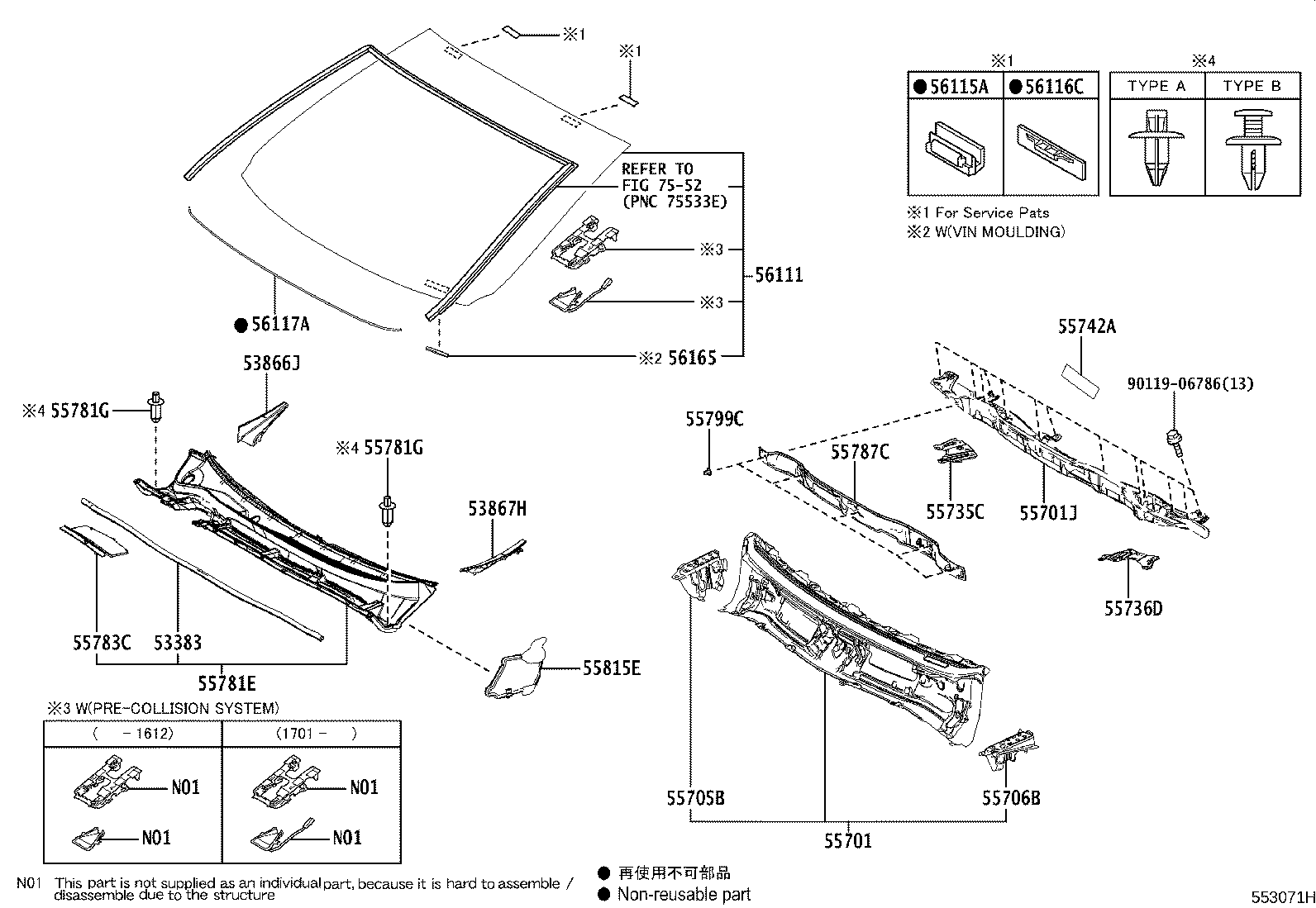

Figure 553070H 553070H 2012-12 → — Figure 553071H 553071H 2012-12 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55735C Reinforcement, Cowl Body Mounting, RH
55736D Reinforcement, Cowl Body Mounting, LH
55742A Sheet, Cowl Top Insulator
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783C Bracket, Cowl Top Ventilator Louver, RH
55784D Bracket, Cowl Top Ventilator Louver, LH
55787C Insulator, Cowl Top Panel, NO.1
55799C Clip, Cowl Top Ventilator Louver
55815E Seal, Front Ventilator, NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56165 Cover, Front Window Inner Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
