Toyota RAV4

2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 5 illustrations

Illustrations

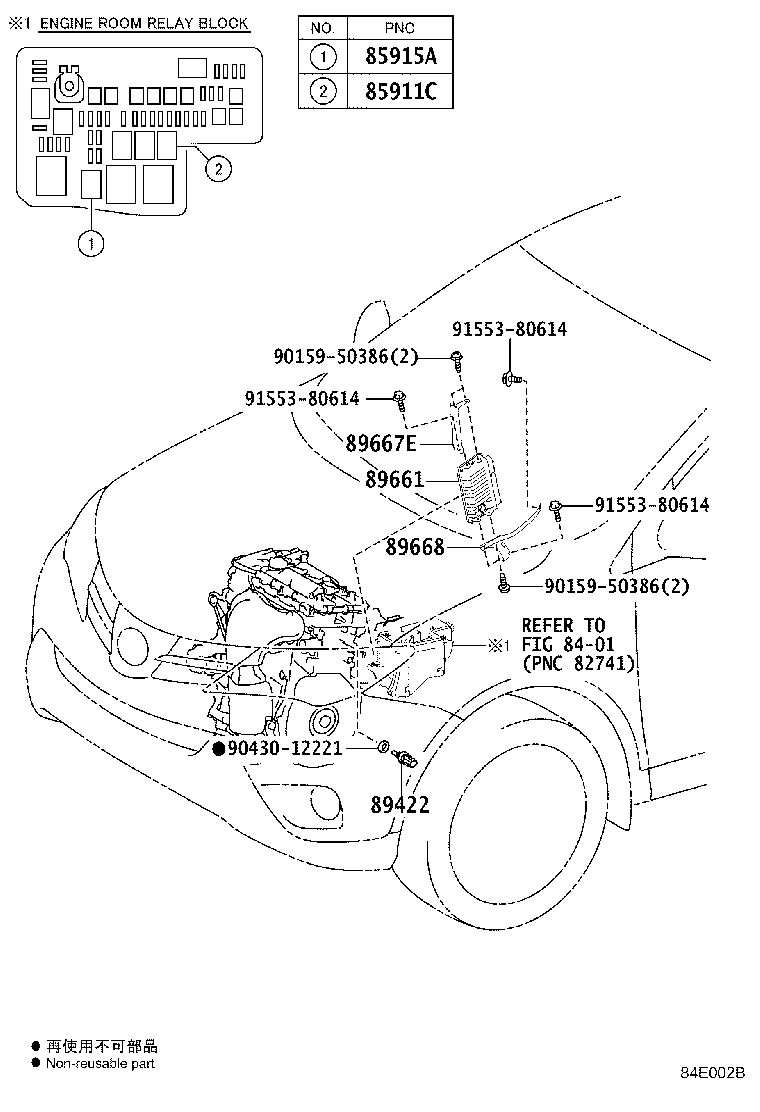

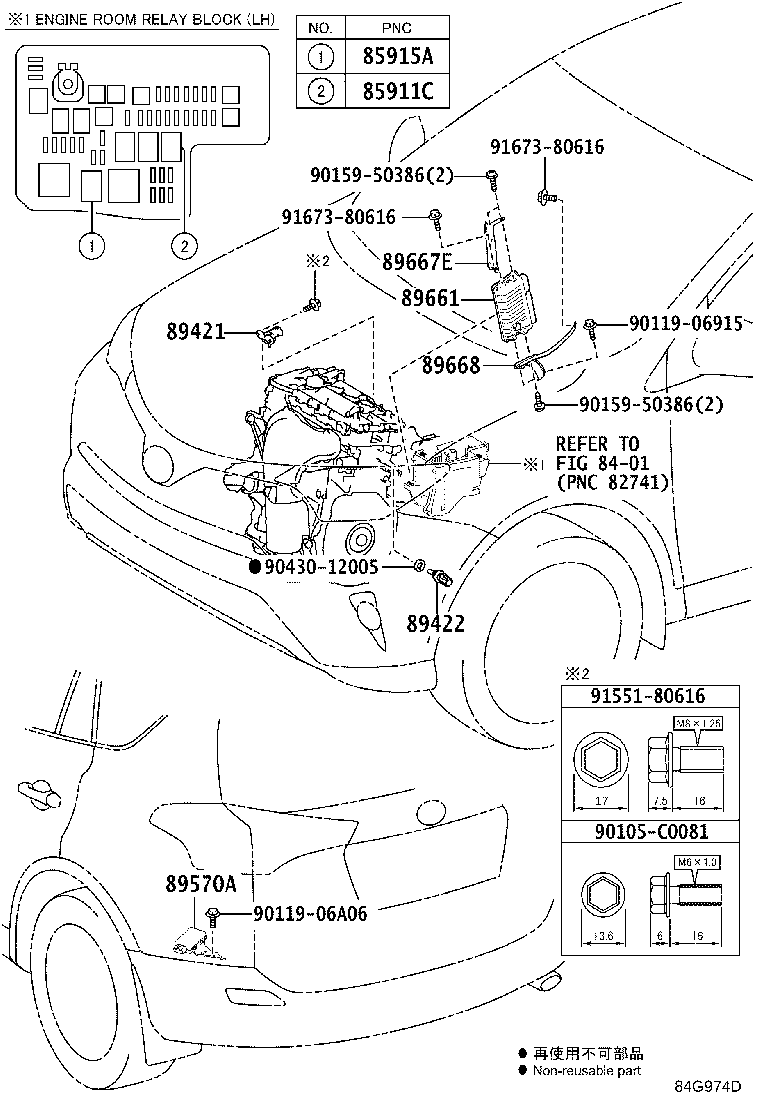

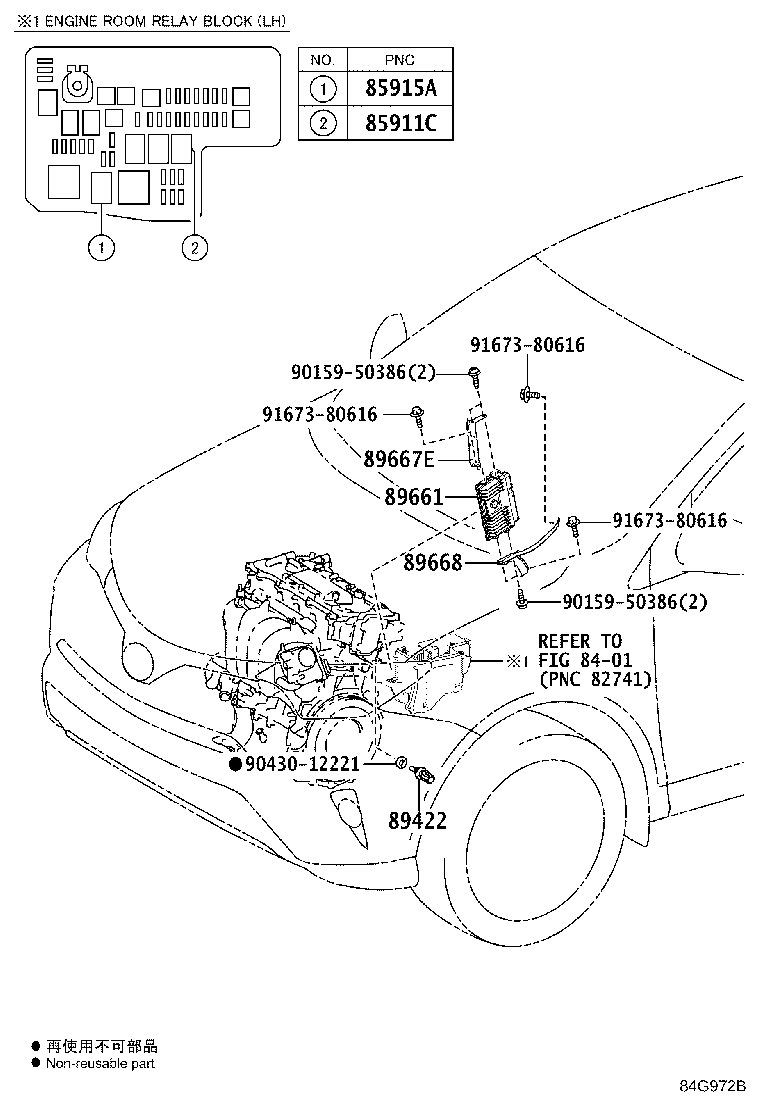

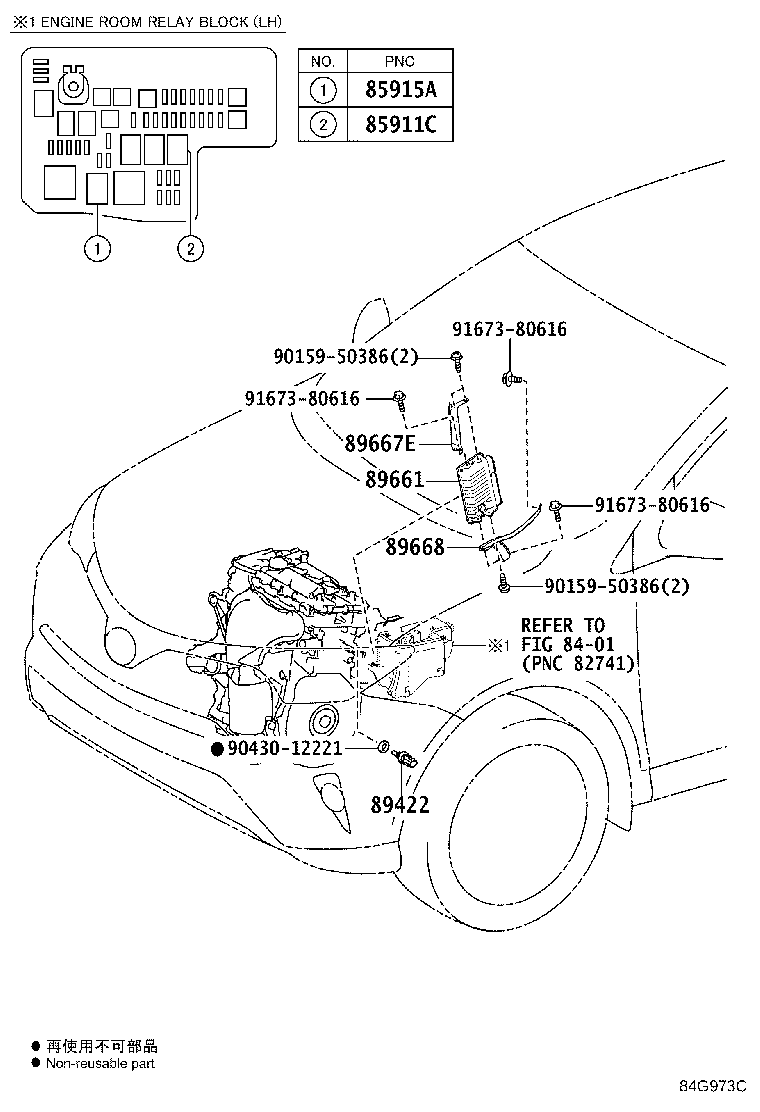

Figure 84E001B 84E001B 2012-12 → 2015-10 Figure 84G972B 84G972B 2015-10 → — Figure 84E002B 84E002B 2012-12 → 2015-10 Figure 84G973C 84G973C 2015-10 → — Figure 84G974D 84G974D 2015-10 → —

Part groups

PNCDescription
85911C Relay, Efi 2
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
