Toyota RAV4

2012-12 → 2018-12 · chassis ALA49,ASA4#,AVA4#,ZSA4# · catalogue 662340 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 13 illustrations

Illustrations

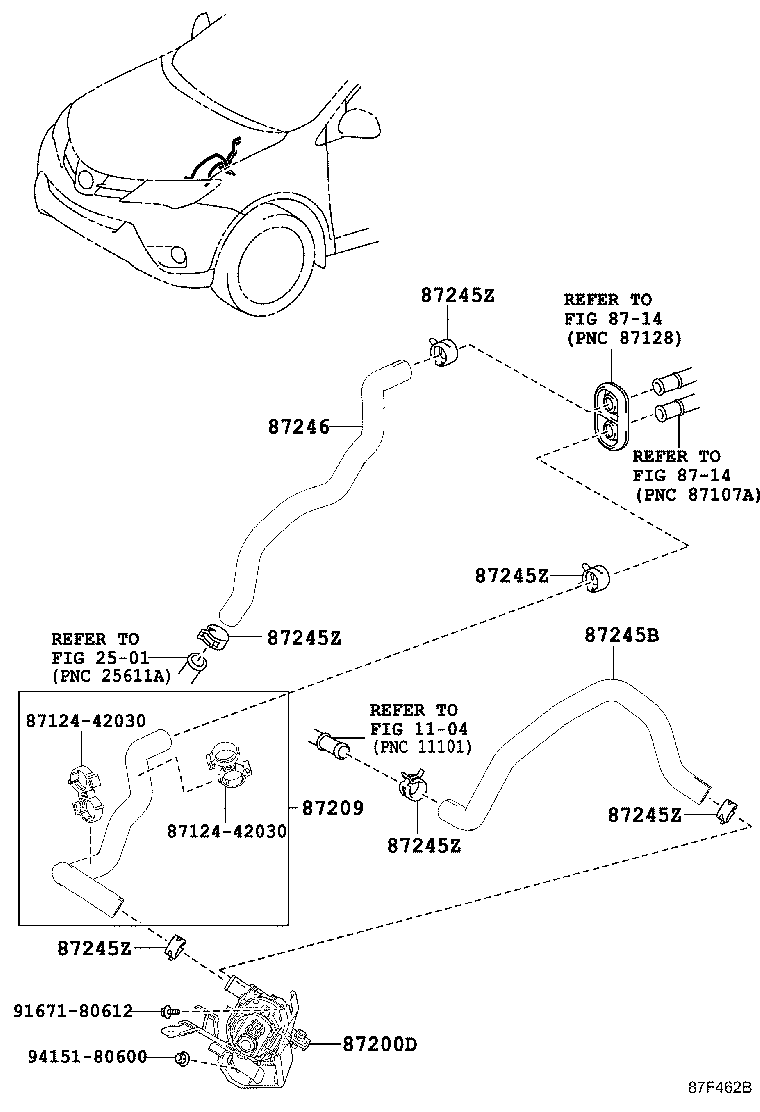

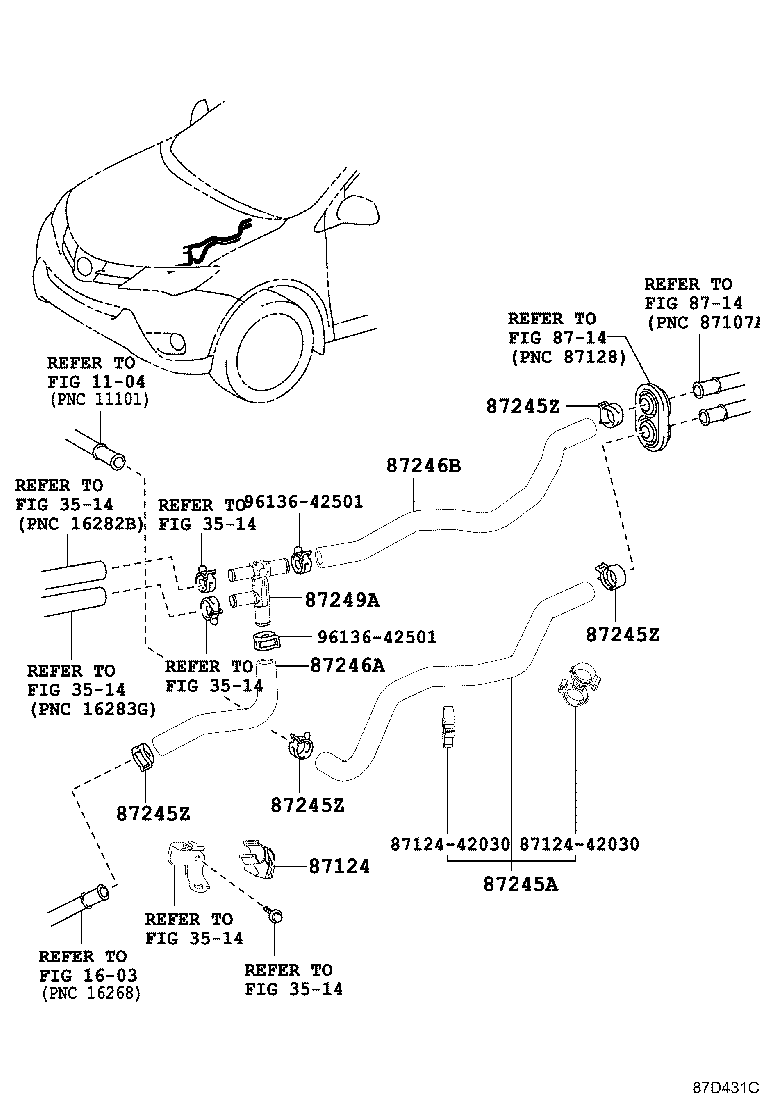

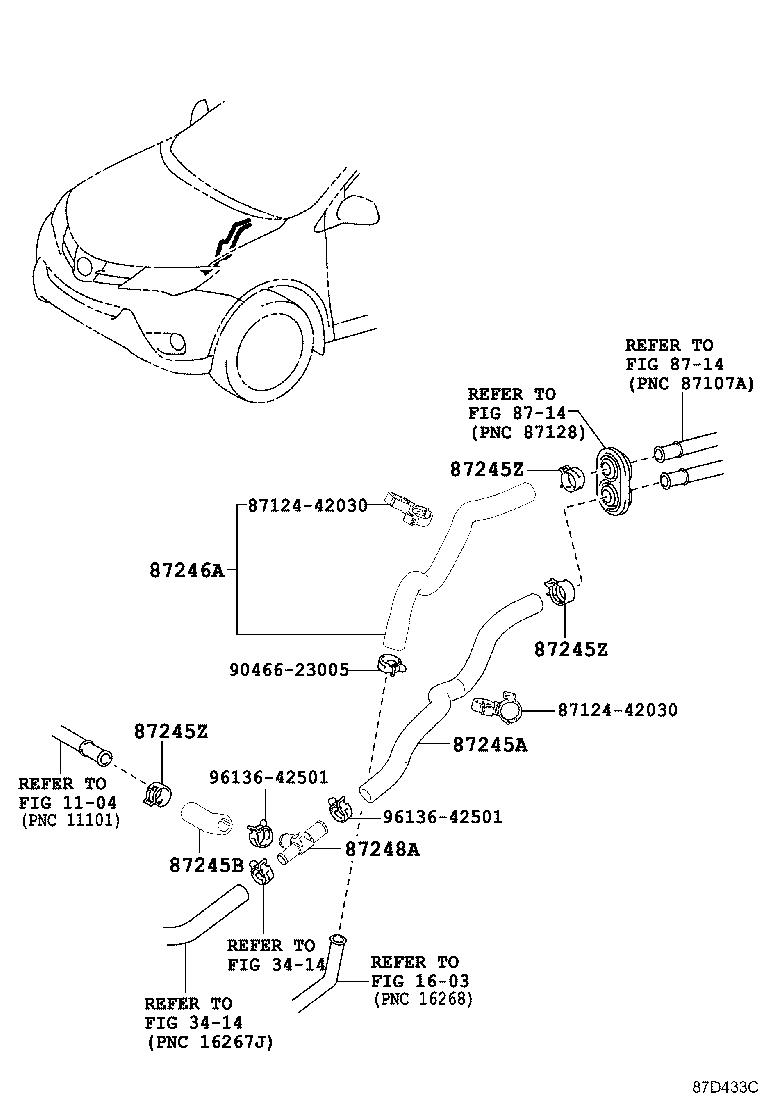

Figure 87D430B 87D430B 2012-12 → — Figure 87D430B 87D430B 2015-10 → — Figure 87D430B 87D430B 2015-10 → — Figure 87D431C 87D431C 2012-12 → — Figure 87D431C 87D431C 2015-10 → — Figure 87D431C 87D431C 2015-10 → — Figure 87D432B 87D432B 2012-12 → — Figure 87D432B 87D432B 2015-10 → — Figure 87D432B 87D432B 2015-10 → — Figure 87D433C 87D433C 2012-12 → — Figure 87D433C 87D433C 2015-10 → — Figure 87D434B 87D434B 2015-10 → — Figure 87F462B 87F462B 2015-10 → —

Part groups

PNCDescription
87124 Clamp, Heater
87200D Accessory Assy, Heater
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
