Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

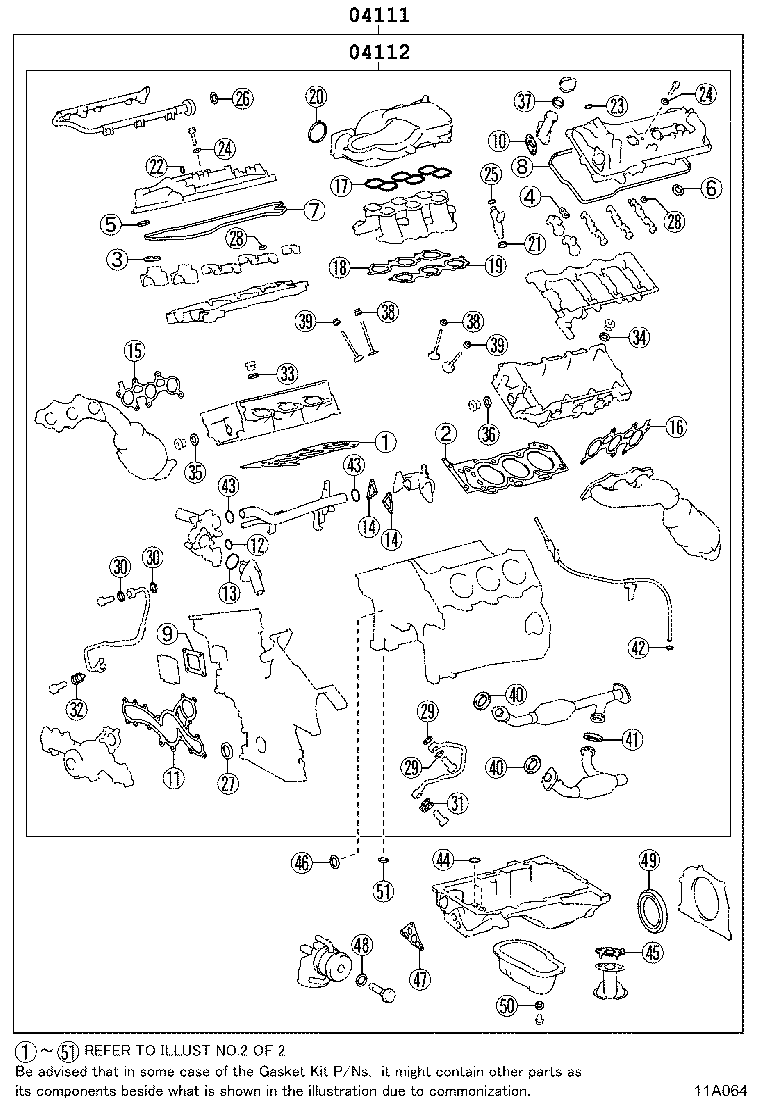

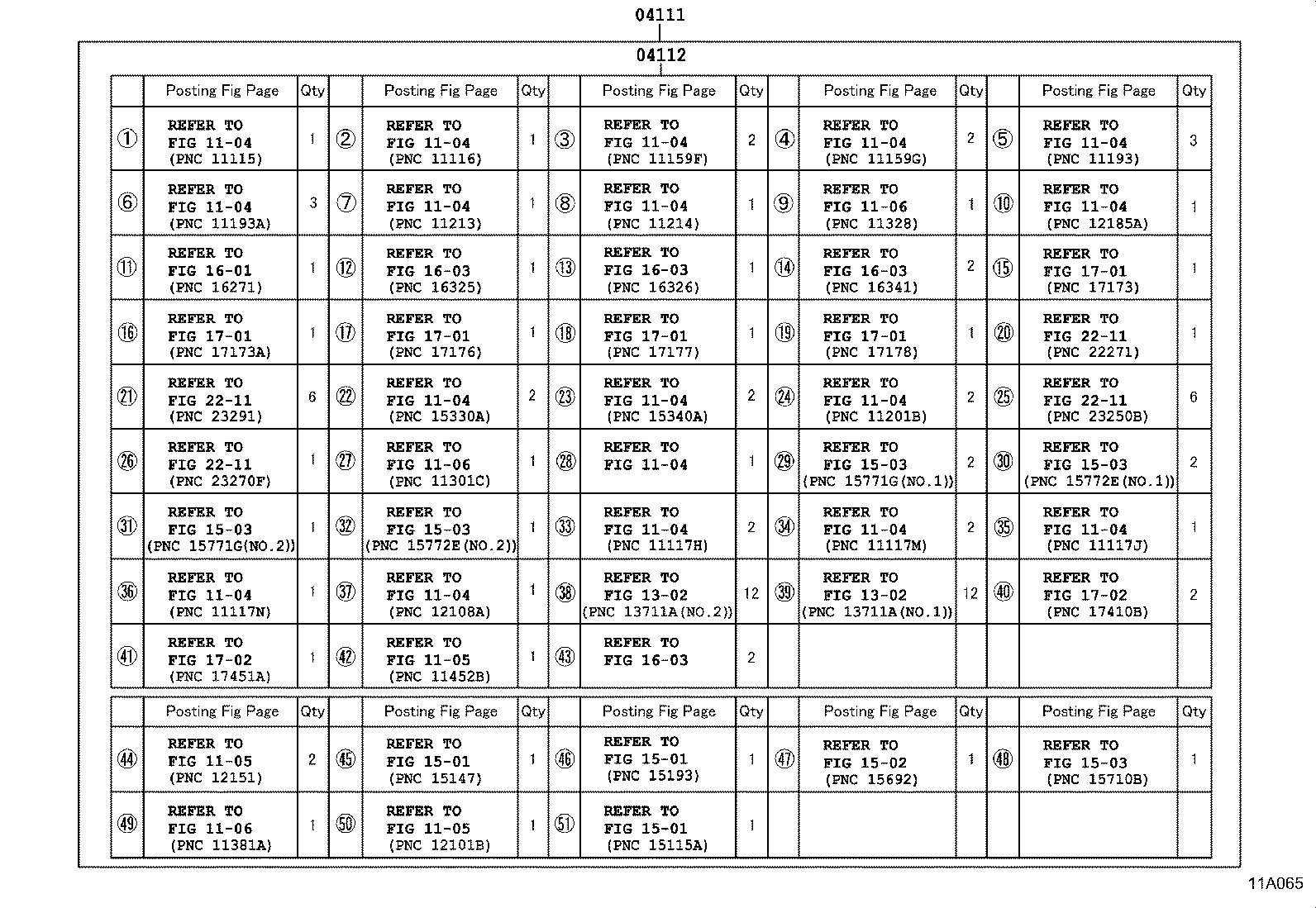

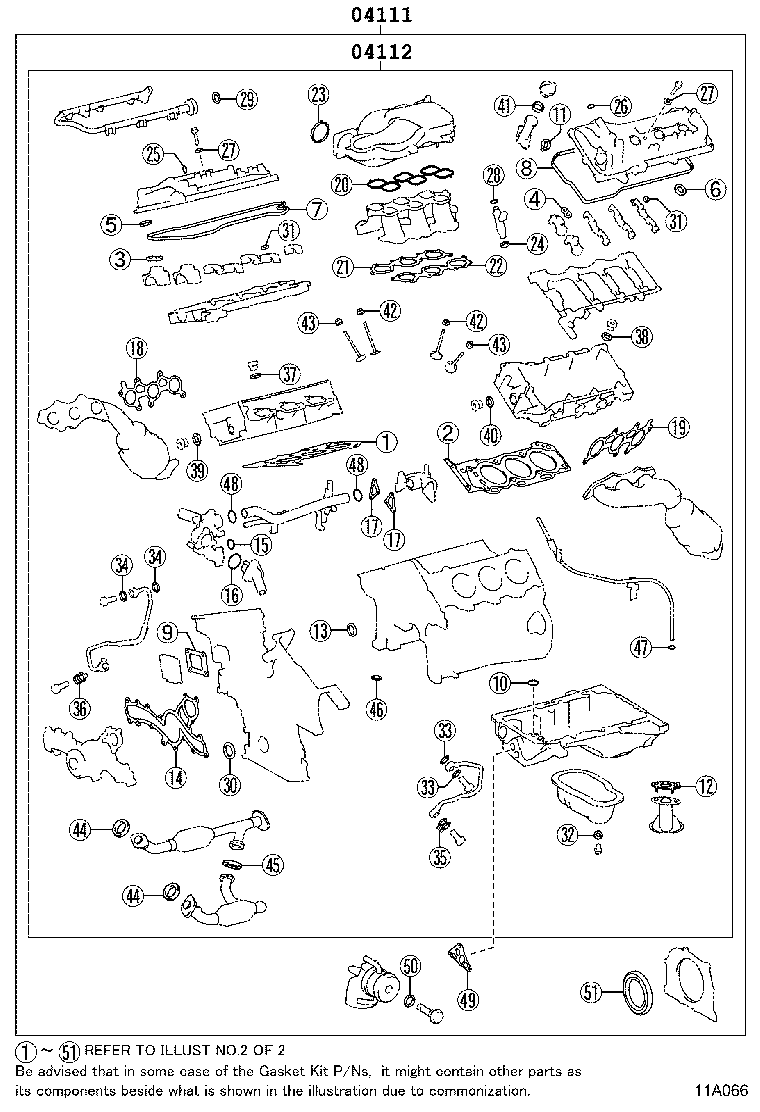

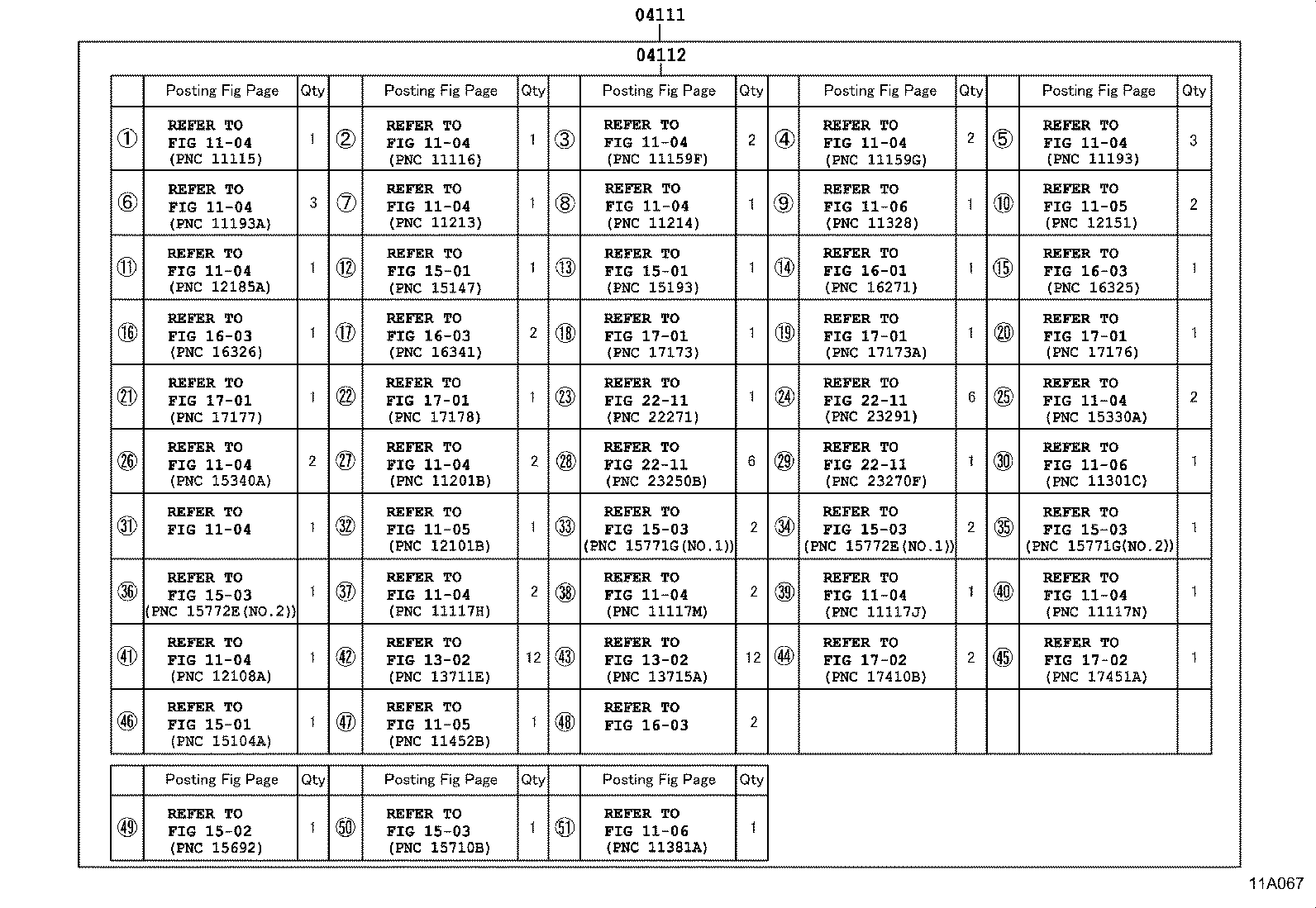

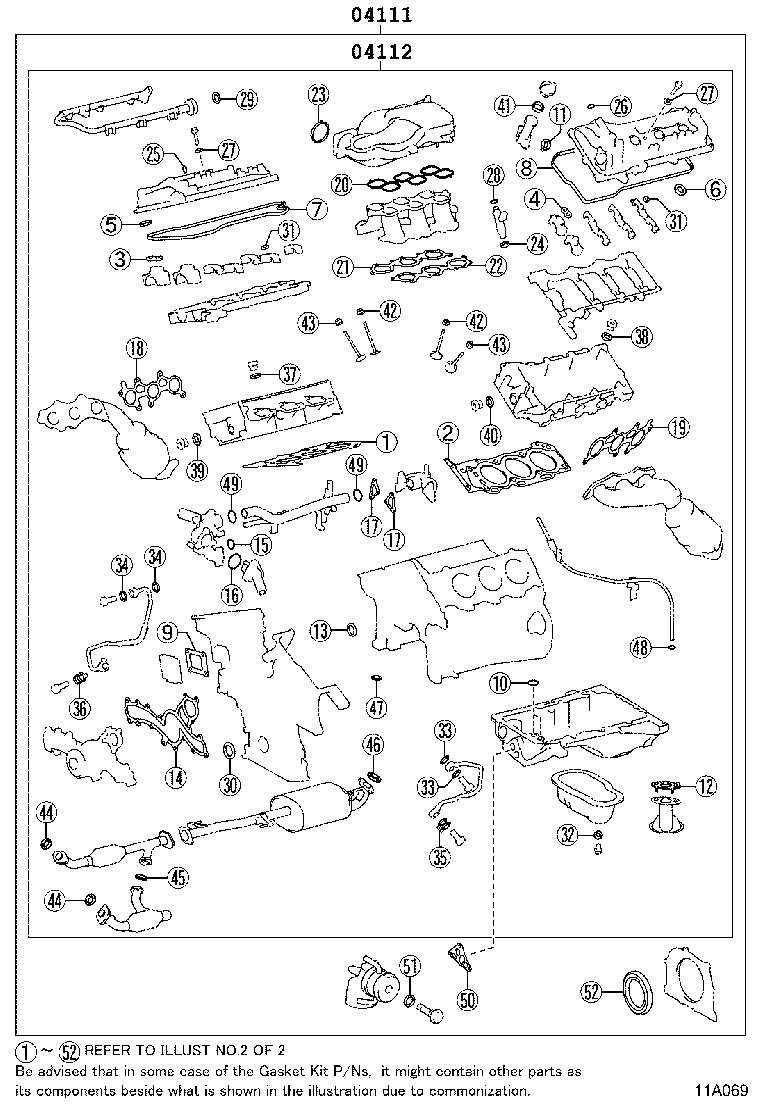

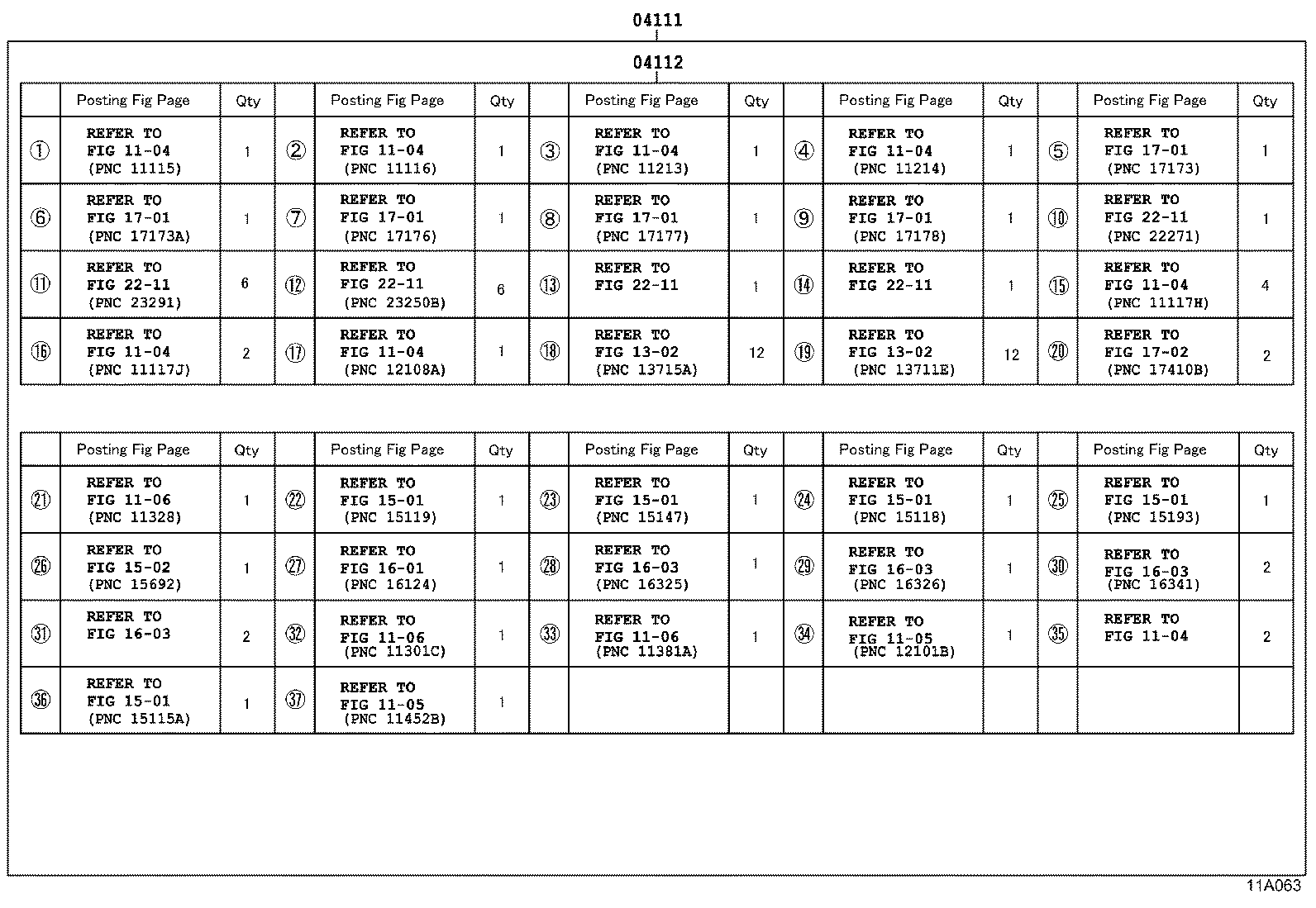

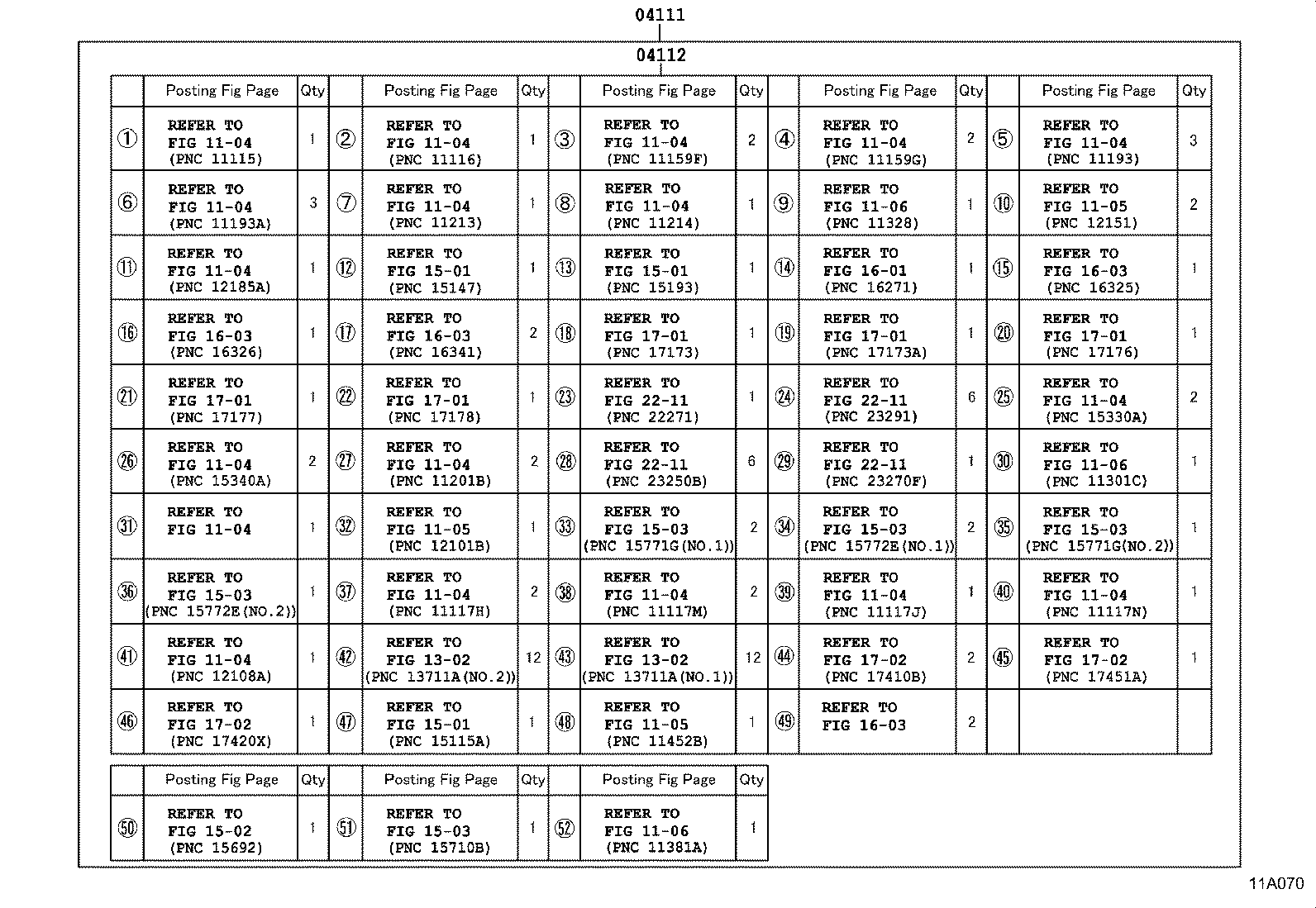

Figure 11A062 11A062 2007-07 → 2009-08 Figure 11A063 11A063 2007-07 → 2009-08 Figure 11A064 11A064 2009-08 → 2010-05 Figure 11A064 11A064 2010-12 → 2011-03 Figure 11A065 11A065 2009-08 → 2010-05 Figure 11A065 11A065 2010-12 → 2011-03 Figure 11A066 11A066 2010-05 → 2010-12 Figure 11A067 11A067 2010-05 → 2010-12 Figure 11A069 11A069 2011-03 → — Figure 11A070 11A070 2011-03 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
