Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

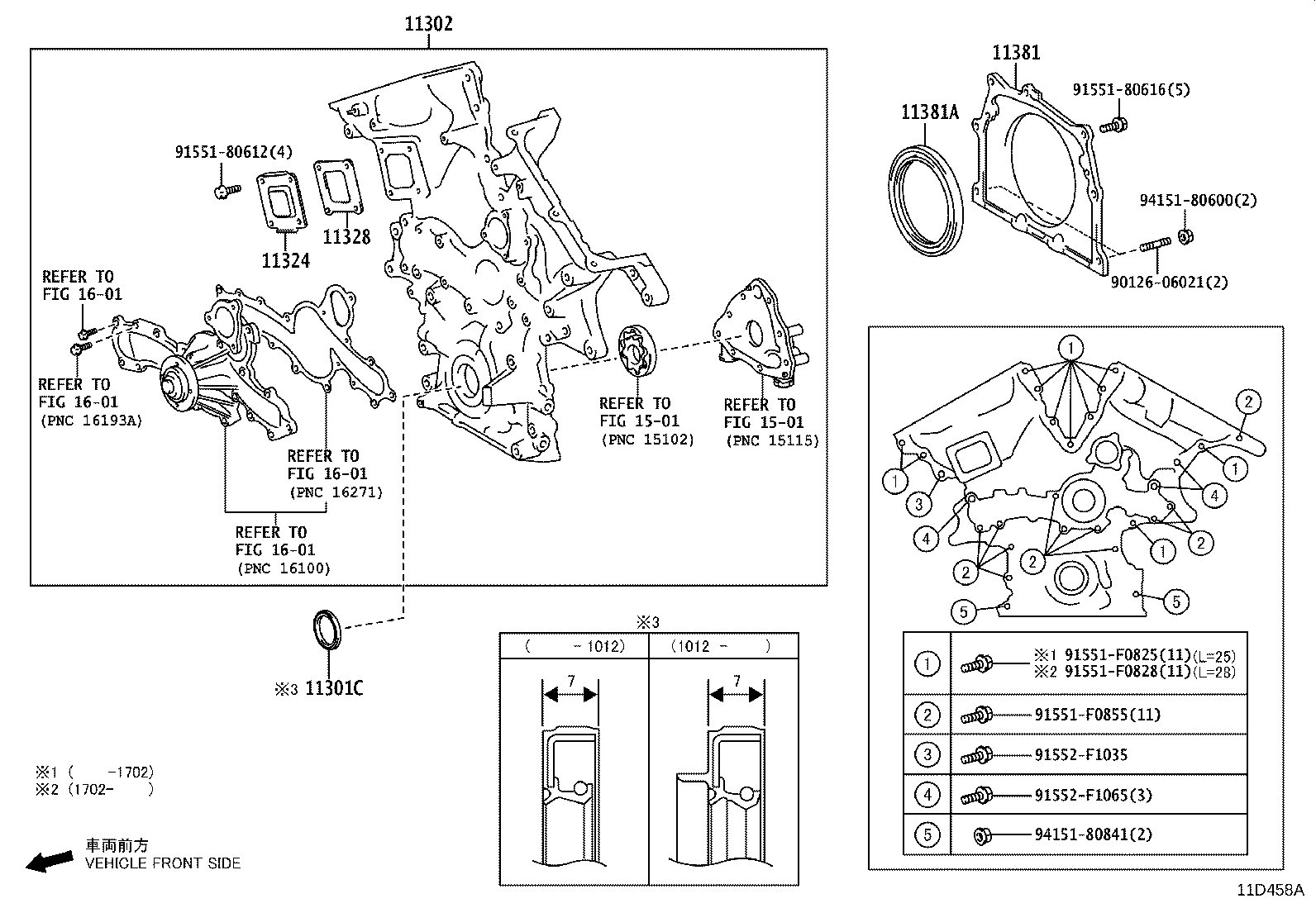

Timing Gear Cover & Rear End Plate
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301M | Sensor, Cam Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
