Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

12 part groups · 9 illustrations

Illustrations

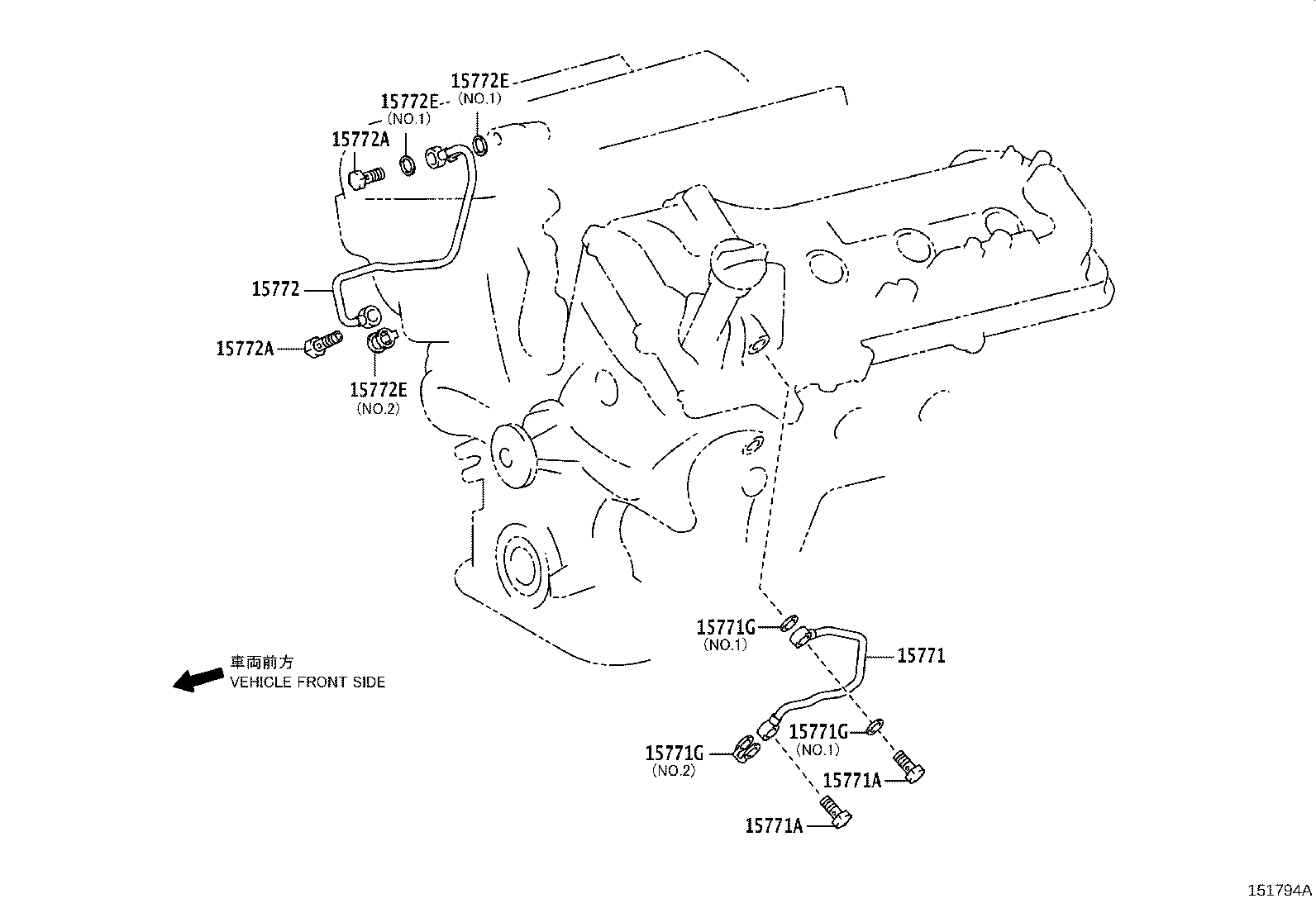

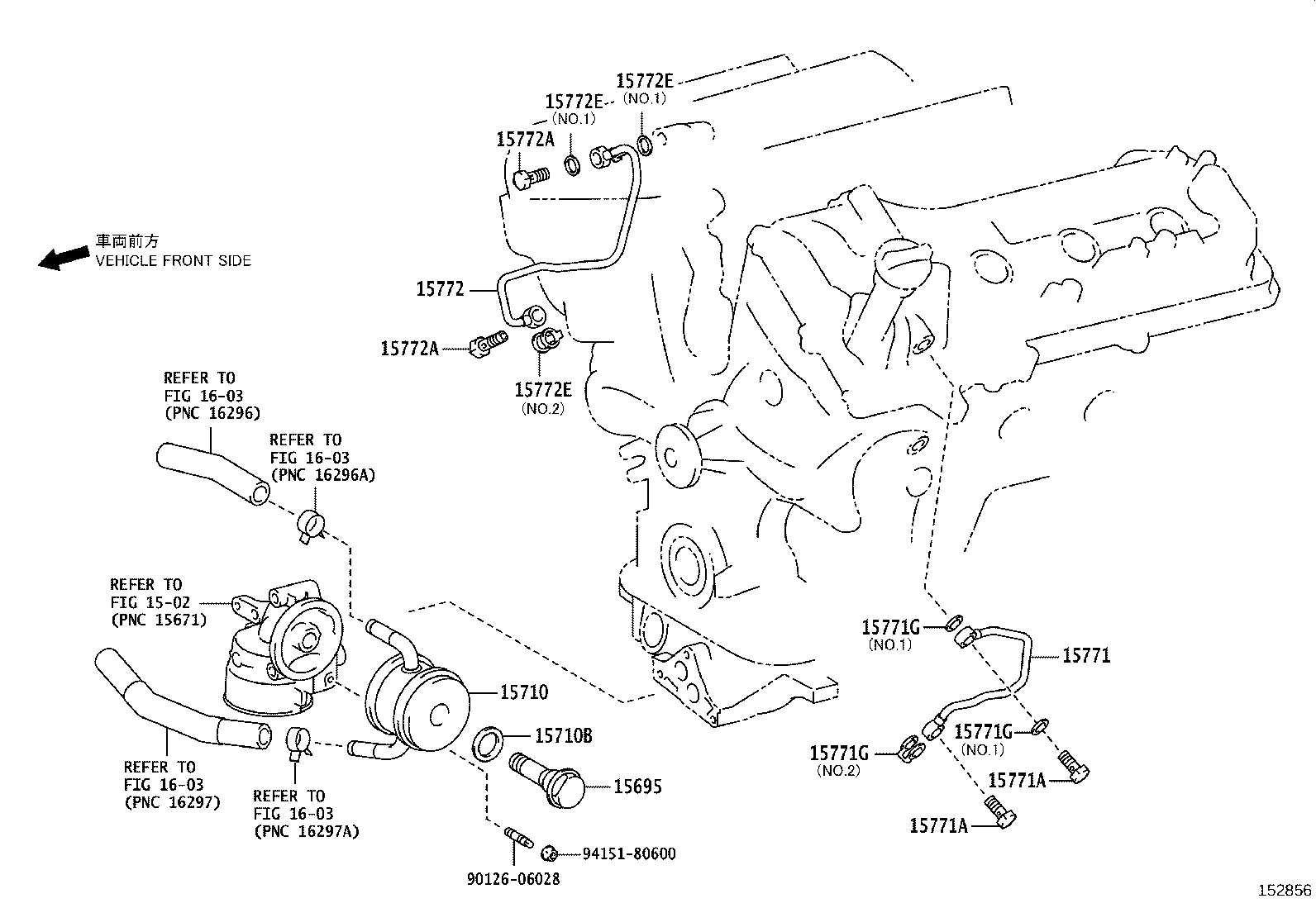

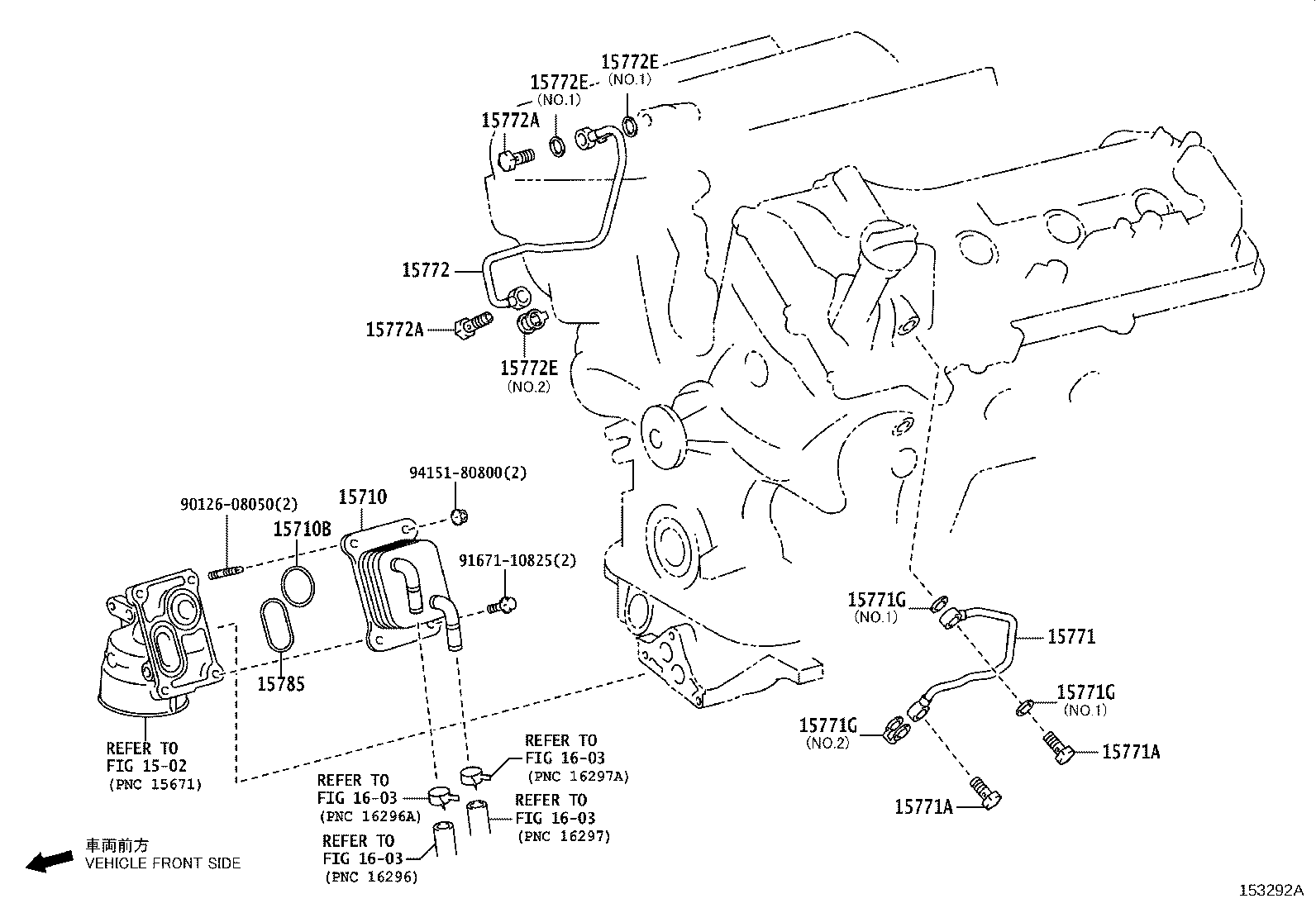

Figure 152855 152855 2007-07 → 2009-08 Figure 151794A 151794A 2009-08 → 2010-11 Figure 151794A 151794A 2010-11 → — Figure 152856 152856 2009-08 → 2010-11 Figure 152856 152856 2010-11 → 2020-11 Figure 152856 152856 2010-11 → 2021-09 Figure 152856 152856 2011-08 → 2021-09 Figure 153292A 153292A 2020-11 → 2021-09 Figure 153292A 153292A 2021-09 → —

Part groups

PNCDescription
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15778 Hose, Oil Cooler, NO.2
15785 Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
