Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

17 part groups · 4 illustrations

Illustrations

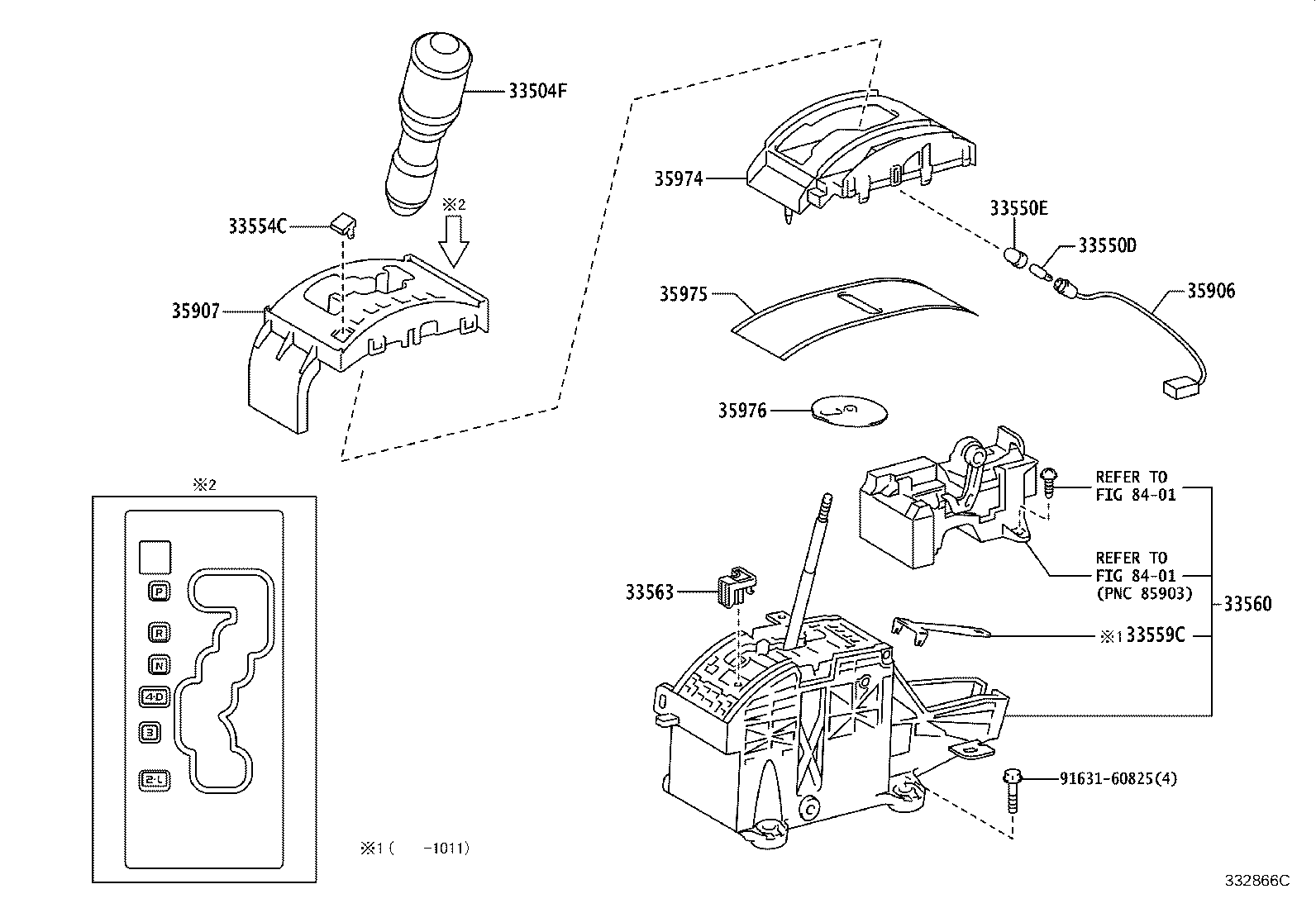

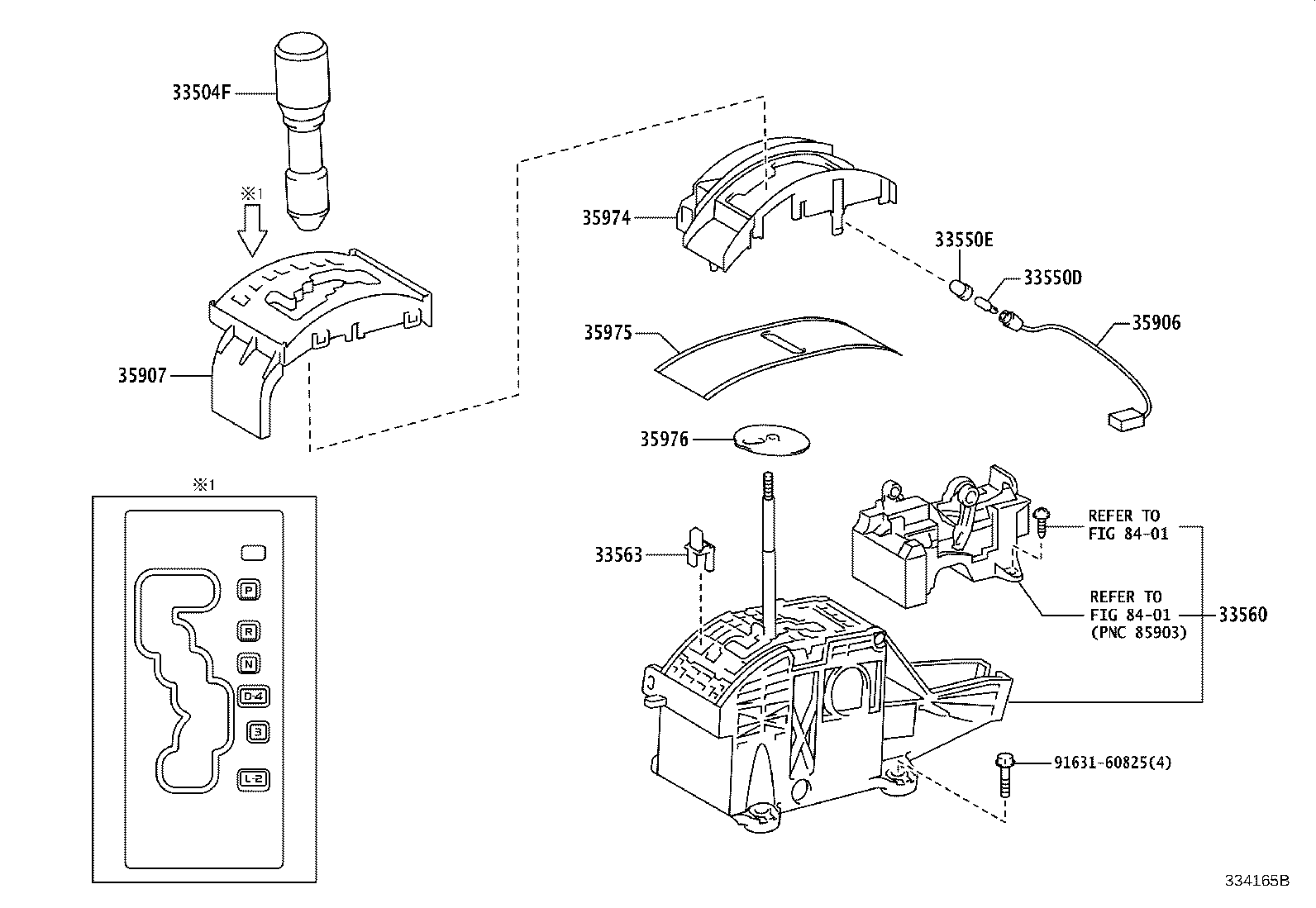

Figure 332865A 332865A 2007-07 → — Figure 332866C 332866C 2007-07 → — Figure 334165B 334165B 2010-11 → — Figure 332867B 332867B 2007-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33559C Damper, Shift Lever Spring
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
35906 Wire Sub-assy, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
