Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11

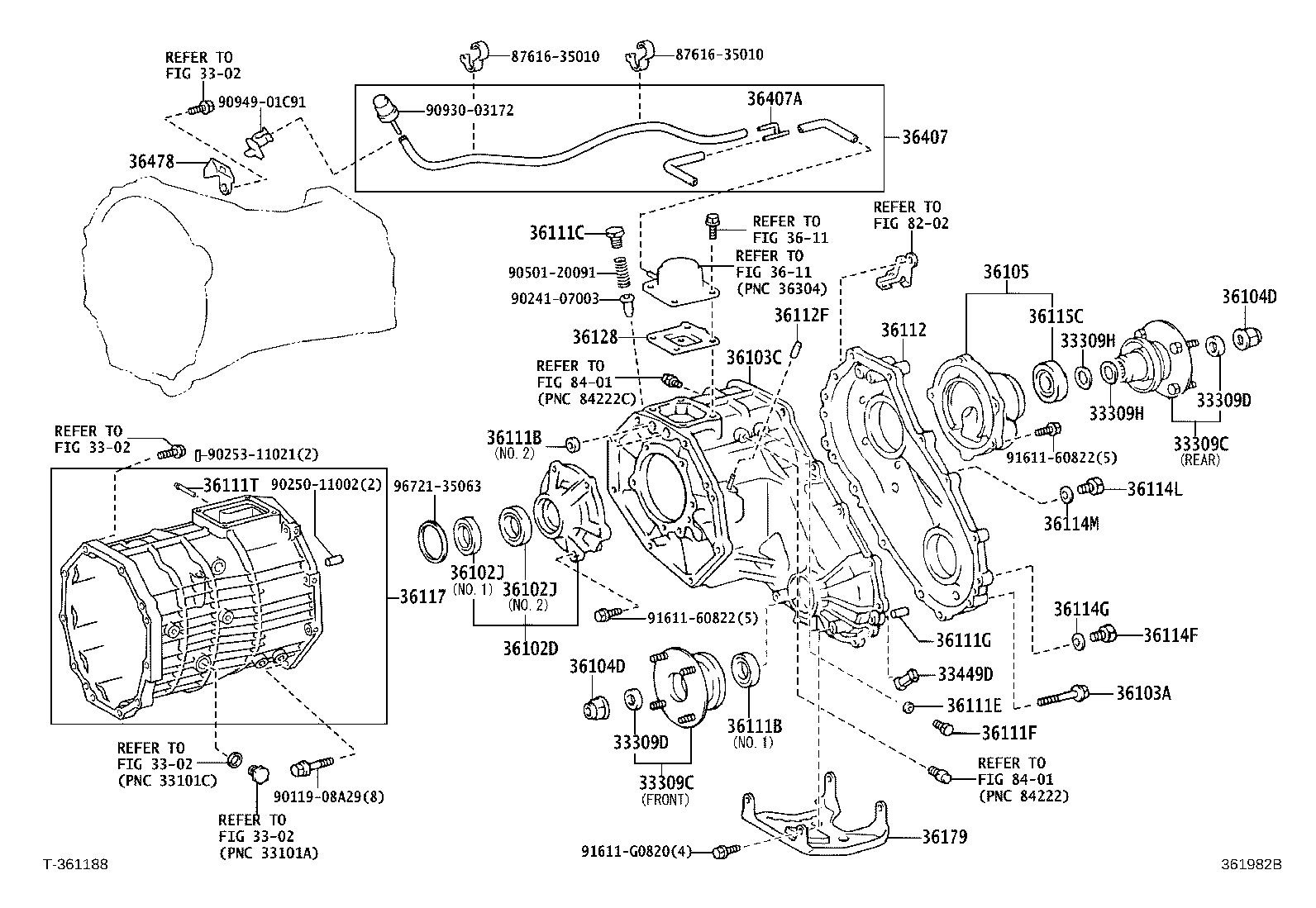

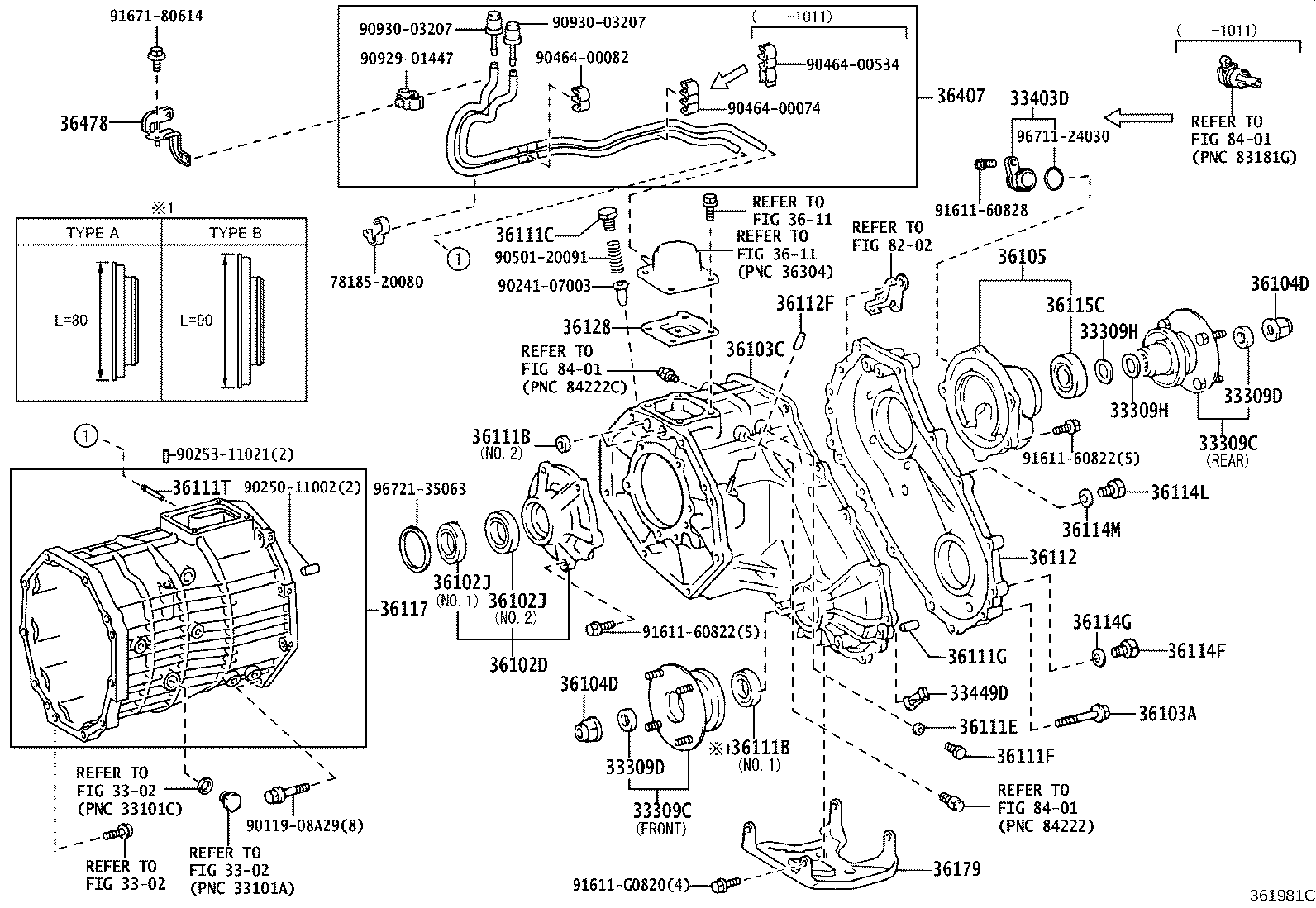

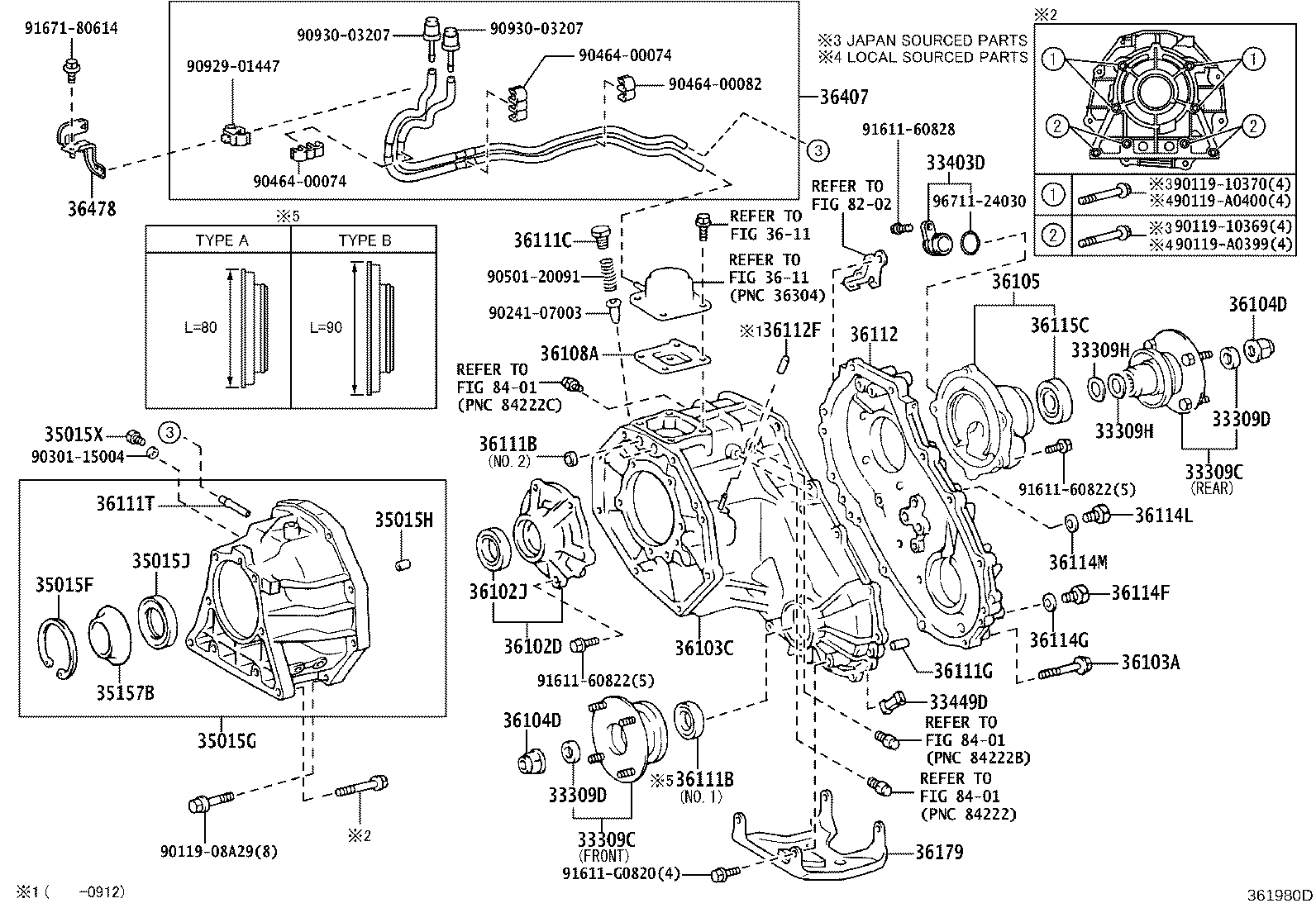

Transfer Case & Extension Housing

38 part groups · 4 illustrations

PNC	Description
33183	Damper, Transfer Dynamic
33309C	Flange Sub-assy, Output Shaft Companion
33309D	Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309H	Washer, Transfer Output Shaft
33403D	Cover Sub-assy, Speedometer Driven Hole
33449D	Magnet (FOR TRANSFER CASE)
35015F	Ring, Hole Snap(FOR TRANSFER ADAPTER)
35015G	Adapter, Transfer, Rear
35015H	Pin, Ring(FOR TRANSFER CASE)
35015J	Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
35015X	Plug, Refill(FOR TRANSMISSION CASE ADAPTER)
35157B	Receiver, Transfer Case Rear Adapter Oil
36102D	Retainer Sub-assy, Transfer RH Bearing
36102J	Seal, Type T Oil (FOR TRANSFER COVER)
36103A	Bolt (FOR TRANSFER CASE)
36103C	Case, Transfer, Front
36104D	Nut (FOR TRANSFER OUTPUT SHAFT)
36105	Housing Sub-assy, Transfer Extension, Front
36108A	Deflector Sub-assy, Breather Oil
36111B	Seal, Oil (FOR TRANSFER CASE)
36111C	Plug (FOR TRANSFER CASE)
36111E	Gasket (FOR TRANSFER CASE)
36111F	Plug (FOR TRANSFER CASE)
36111G	Pin, Straight (FOR TRANSFER CASE)
36111T	Tube (FOR TRANSFER CASE)
36112	Case, Transfer, Rear
36112F	Cap, Transfer, Rear Case
36114F	Plug (FOR TRANSFER DRAIN)
36114G	Gasket (FOR TRANSFER DRAIN PLUG)
36114L	Plug, Filler(FOR TRANSFER)
36114M	Gasket (FOR TRANSFER FILLER PLUG)
36115C	Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
36117	Adapter, Transfer
36128	Deflector, Breather Oil
36179	Protector, Transfer Case Lower
36407	Hose Sub-assy, Transfer Breather
36407A	Way, 3(FOR TRANSFER BREATHER HOSE)
36478	Bracket, Transfer Breather

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
