Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 6 illustrations

Illustrations

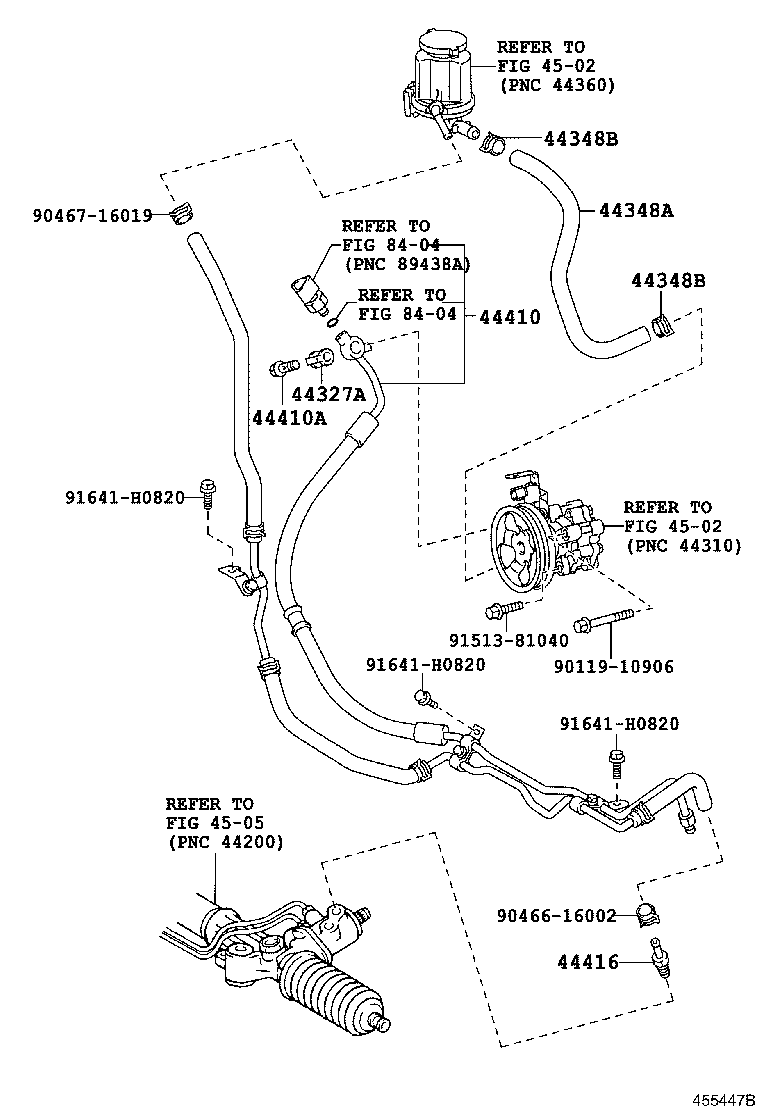

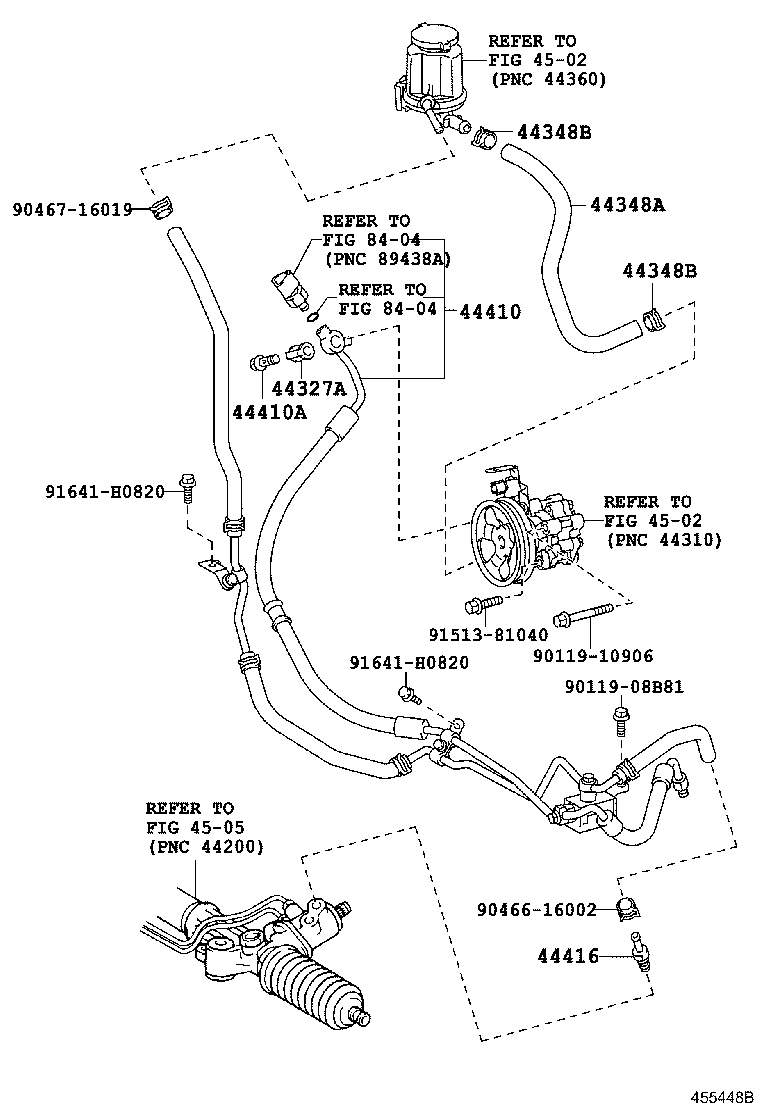

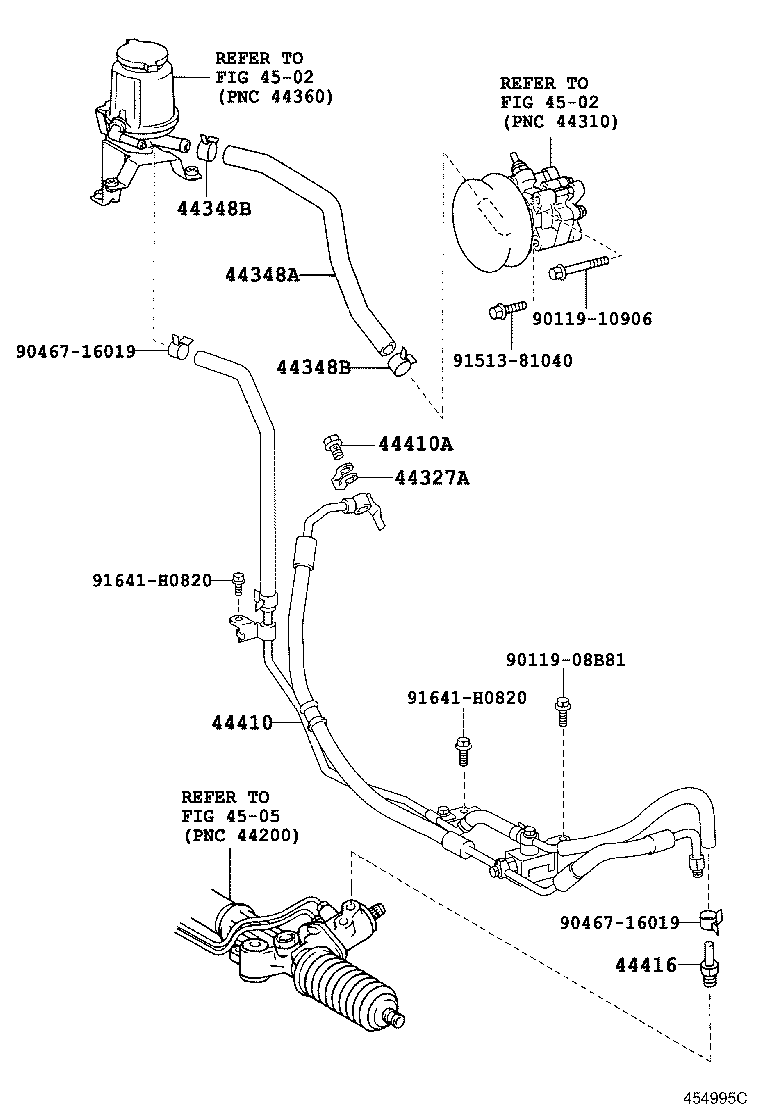

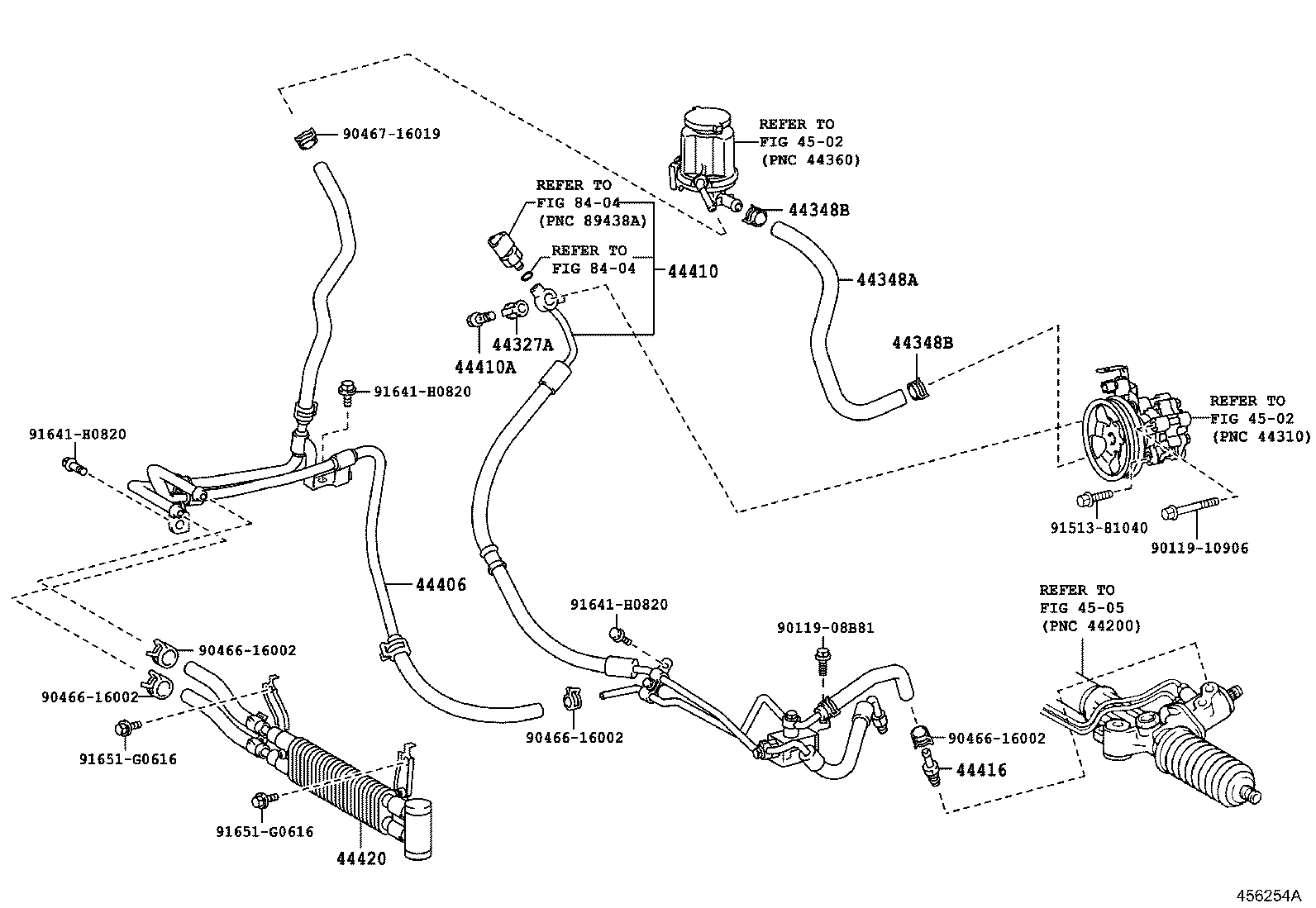

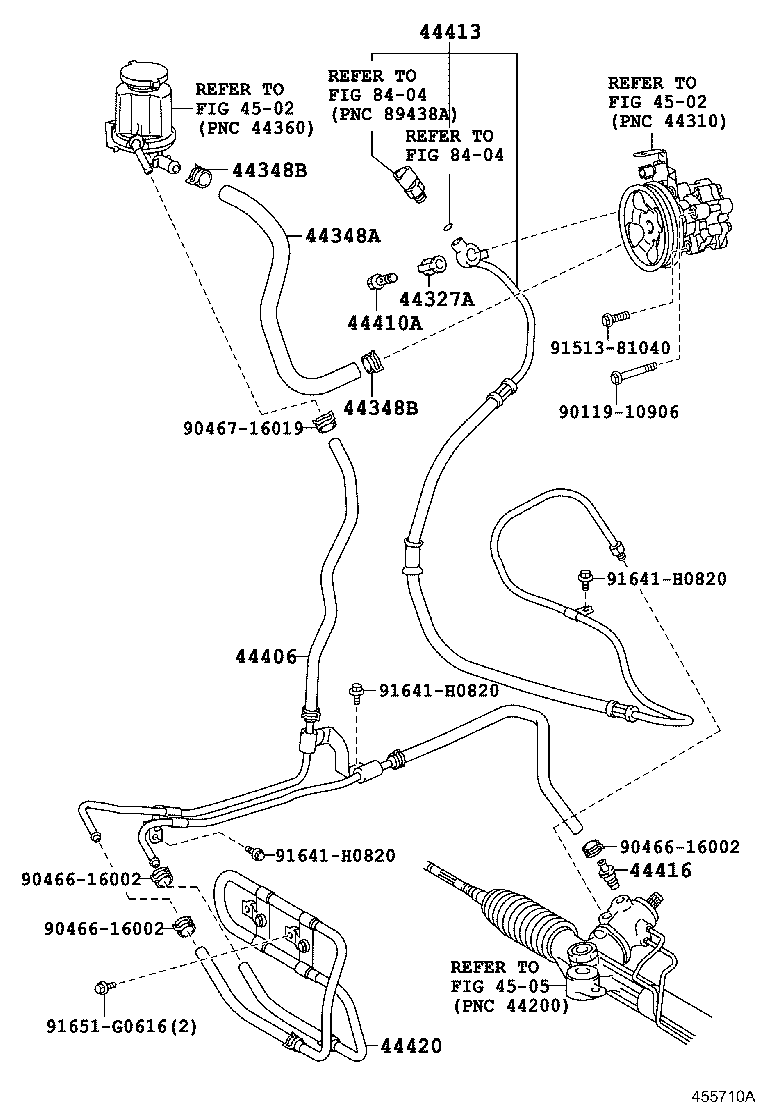

Figure 455133A 455133A 2007-07 → 2009-08 Figure 454995C 454995C 2007-07 → 2009-08 Figure 455447B 455447B 2009-08 → — Figure 455448B 455448B 2009-08 → 2012-08 Figure 455710A 455710A 2010-11 → — Figure 456254A 456254A 2012-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
