Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 2 illustrations

Illustrations

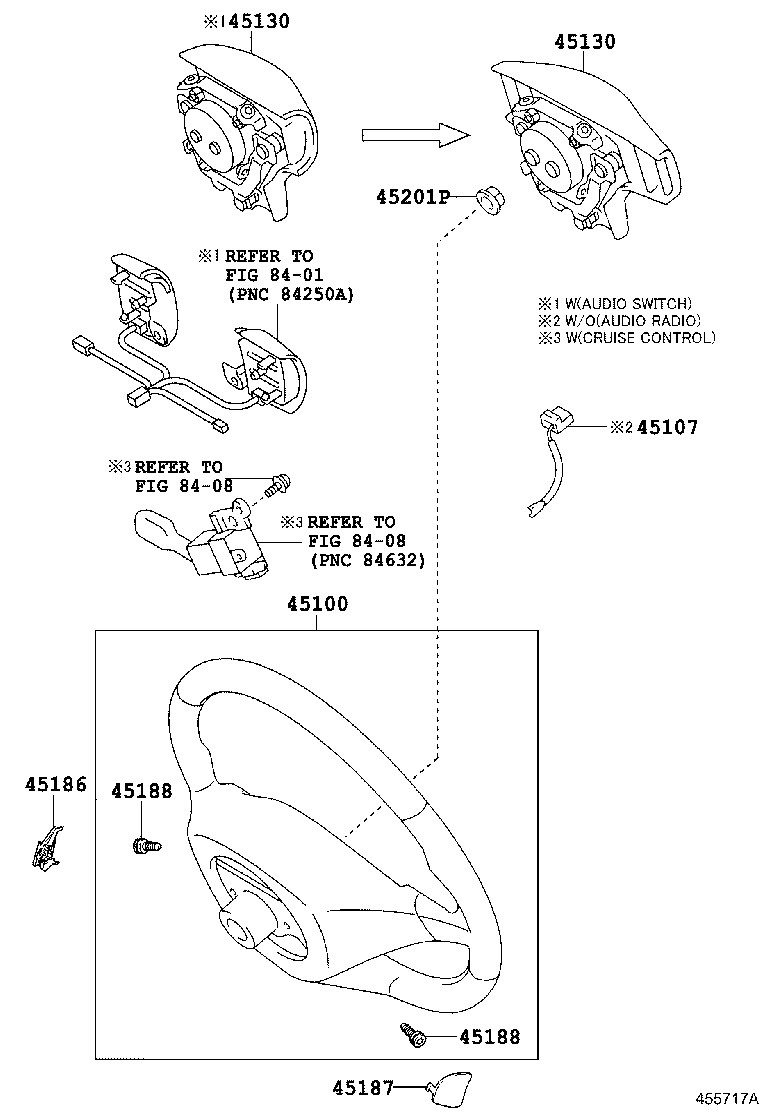

Figure 454994A 454994A 2007-07 → 2010-11 Figure 455717A 455717A 2010-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
