Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

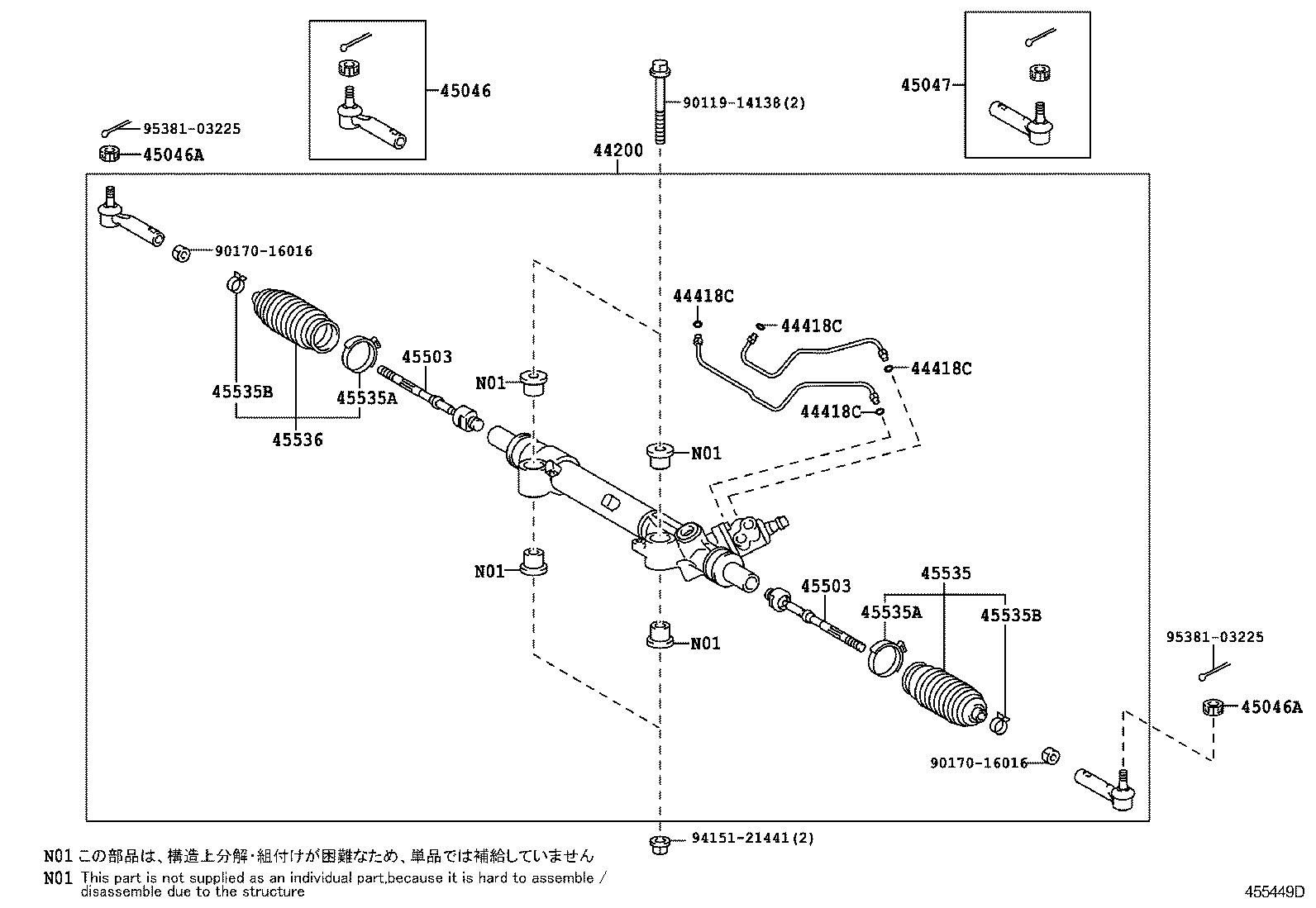

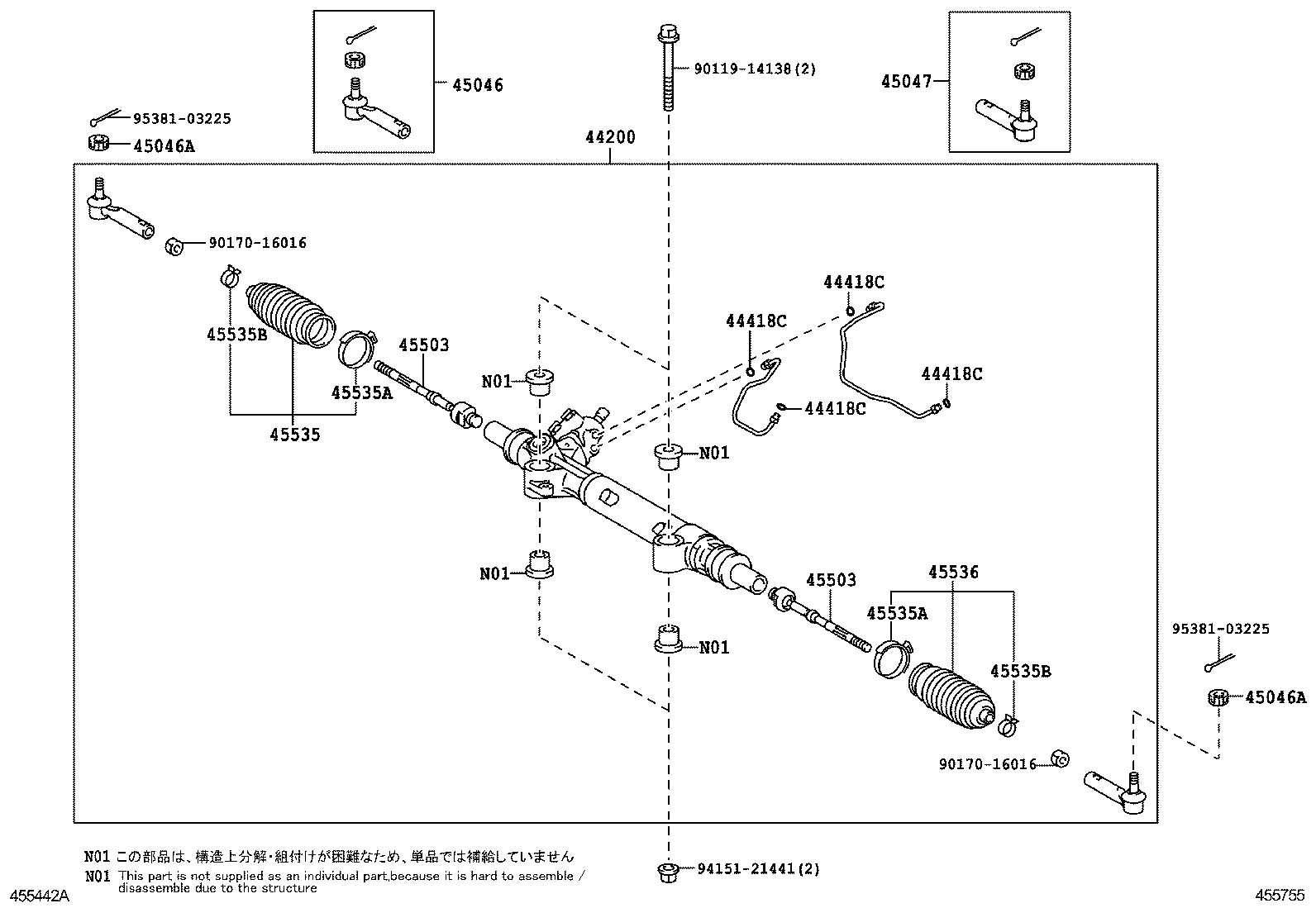

Front Steering Gear & Link
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44200 | Link Assy, Power Steering |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44418C | Ring, O(FOR STEERING TURN PRESSURE TUBE) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
