Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

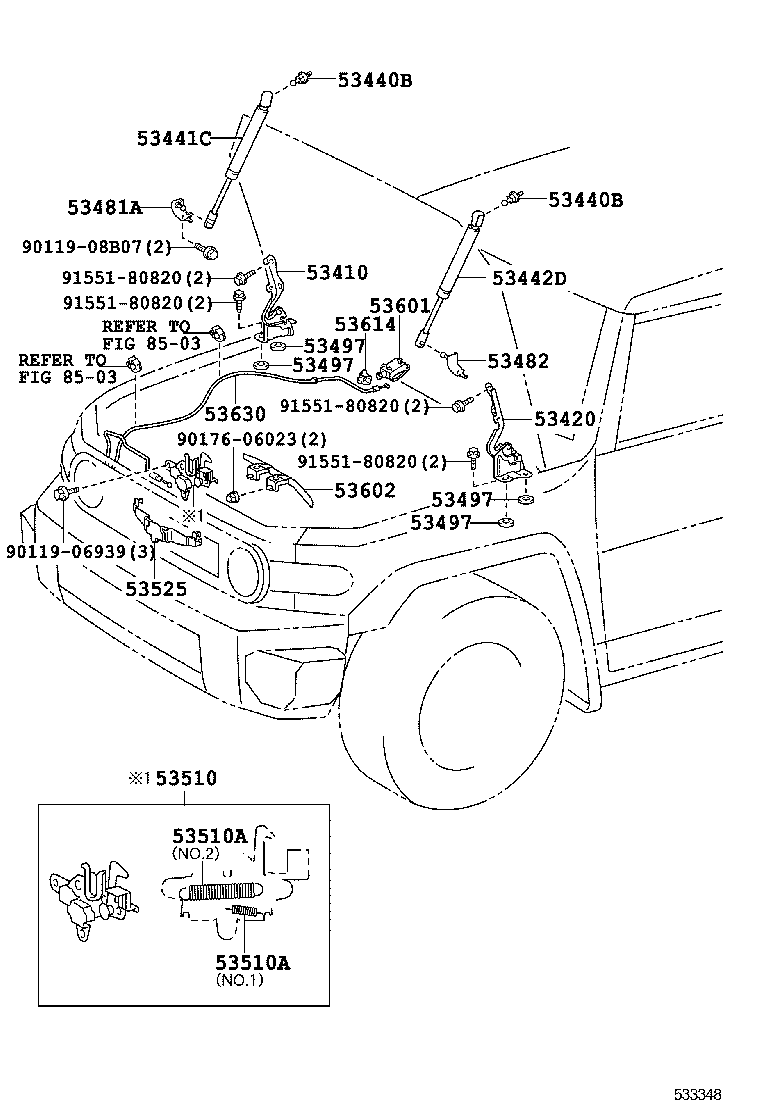

Hood Lock & Hinge
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440B | Bolt, Hood Support, NO.1 |
| 53441C | Support, Hood, RH |
| 53442D | Support, Hood, LH |
| 53481A | Bracket, Hood Support, RH |
| 53482 | Bracket, Hood Support, LH |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53525 | Protector, Hood Lock Release Lever |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53602 | Protector Sub-assy, Hood Lock Control Cable |
| 53614 | Clamp, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
