Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

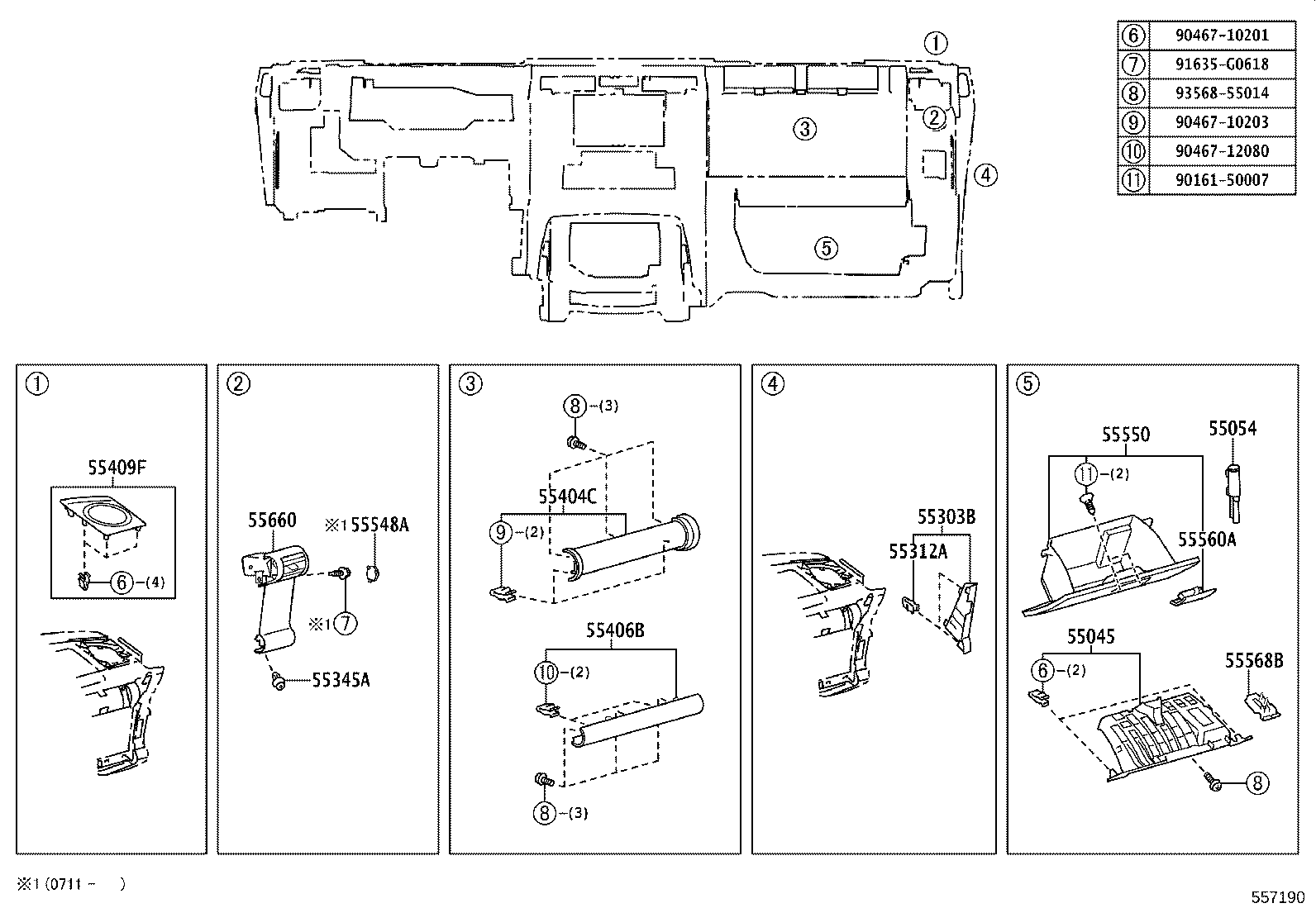

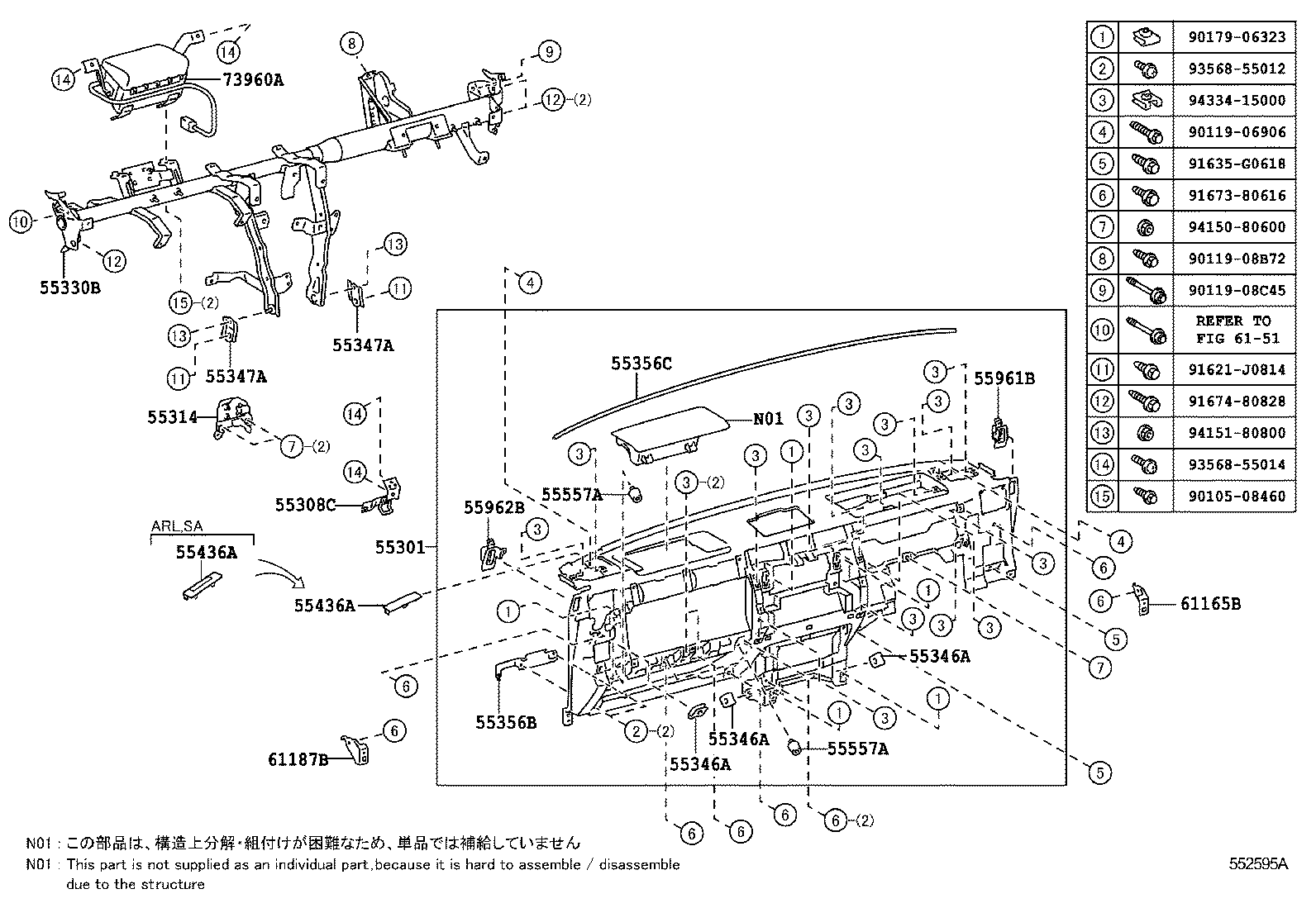

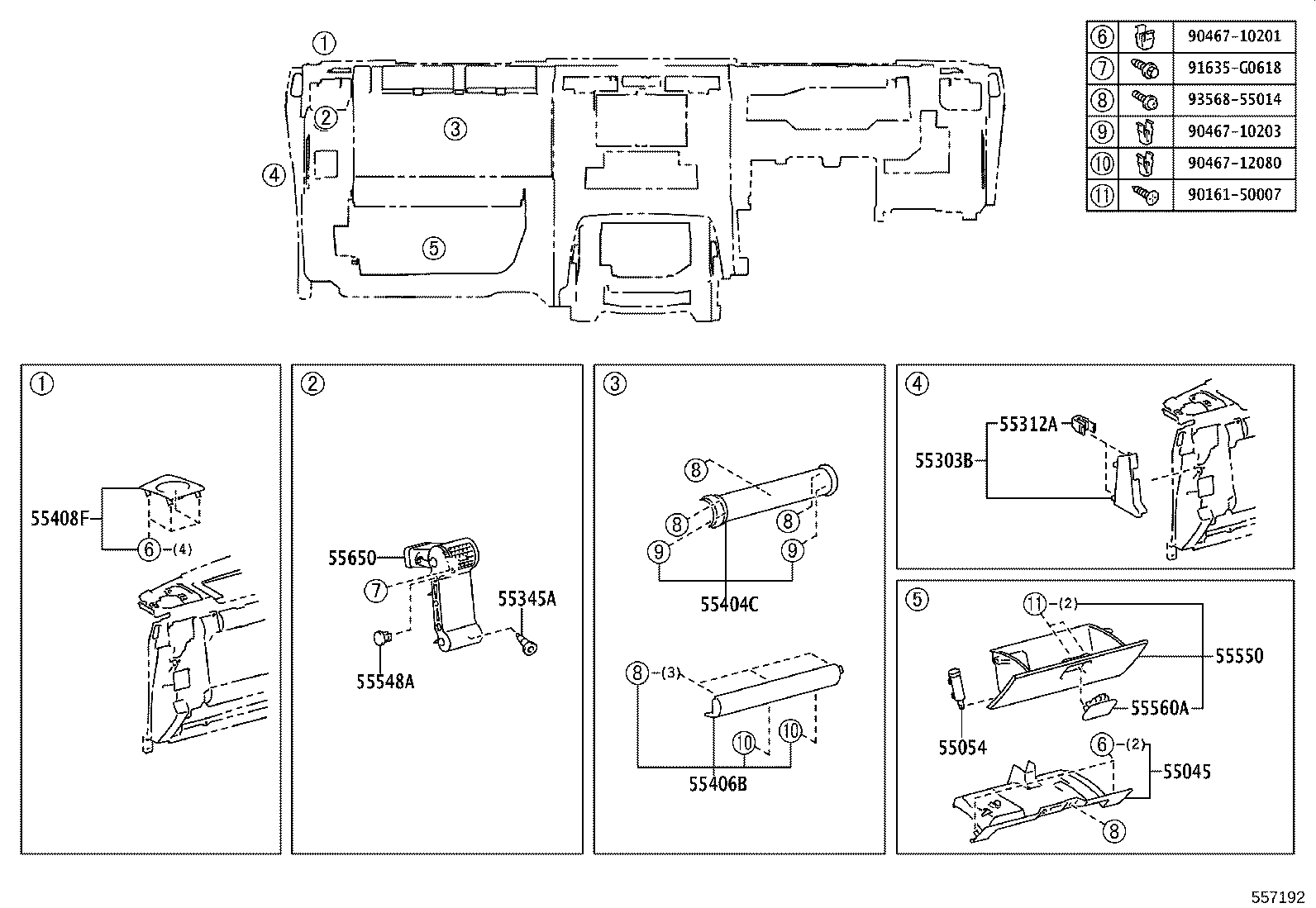

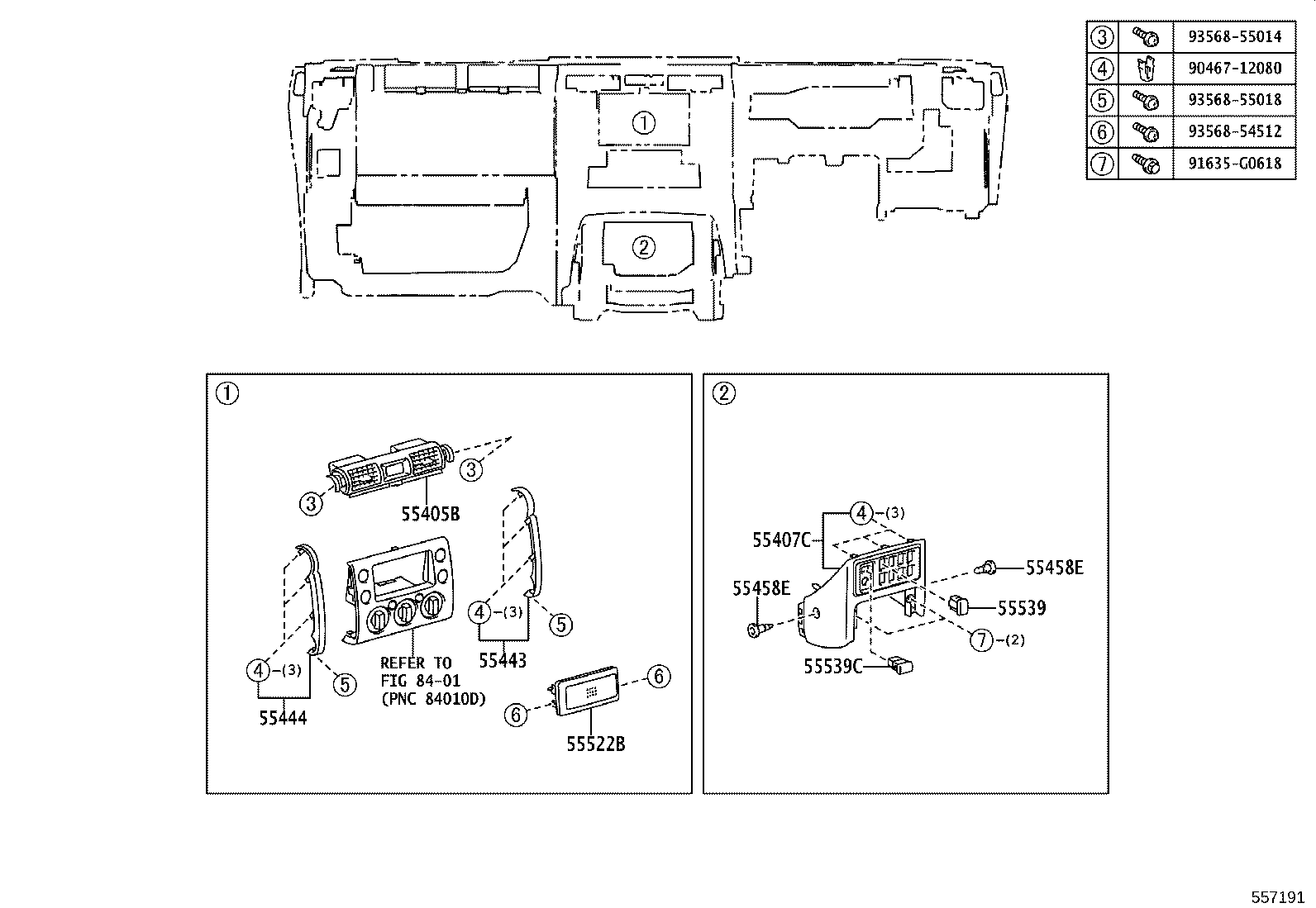

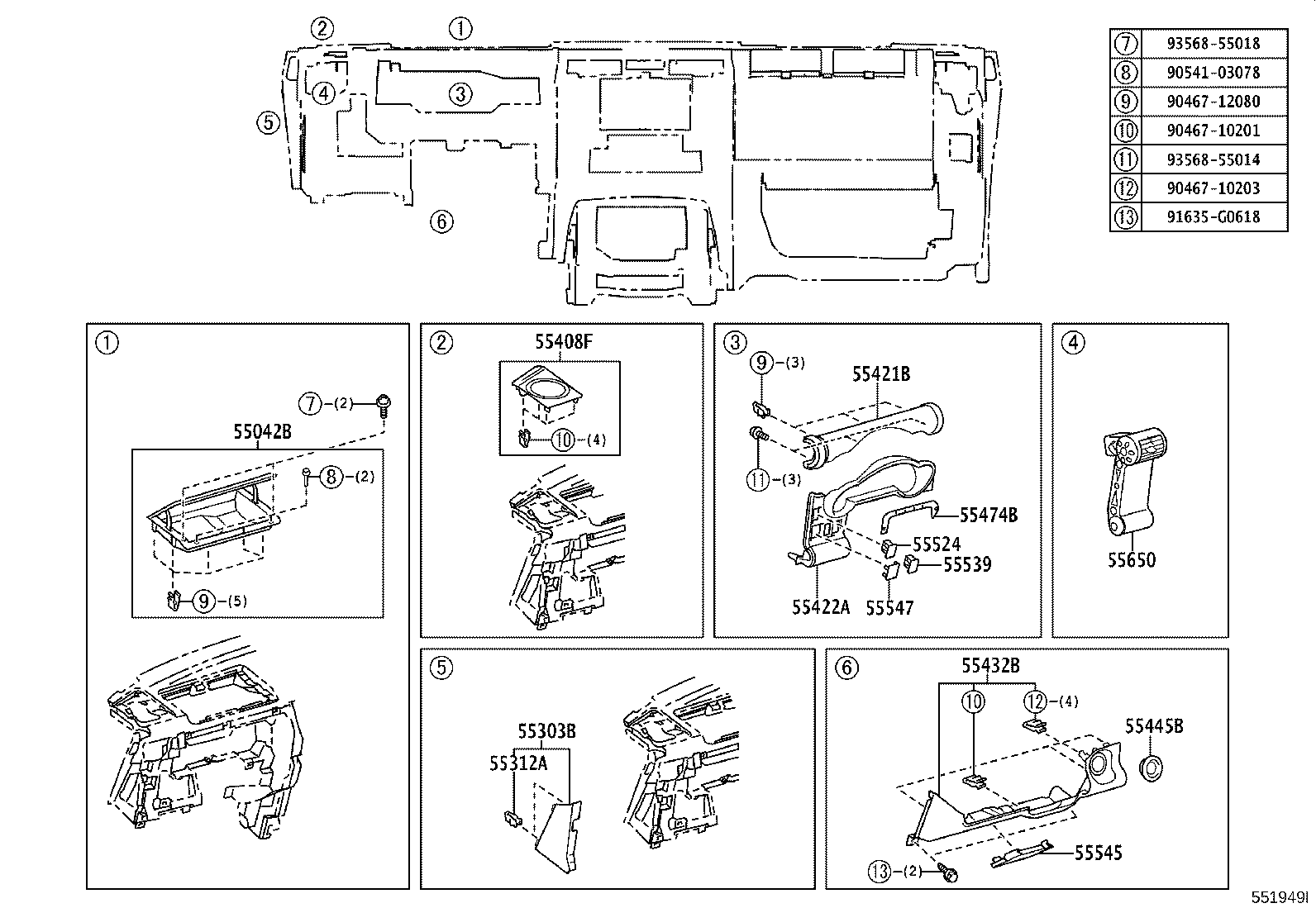

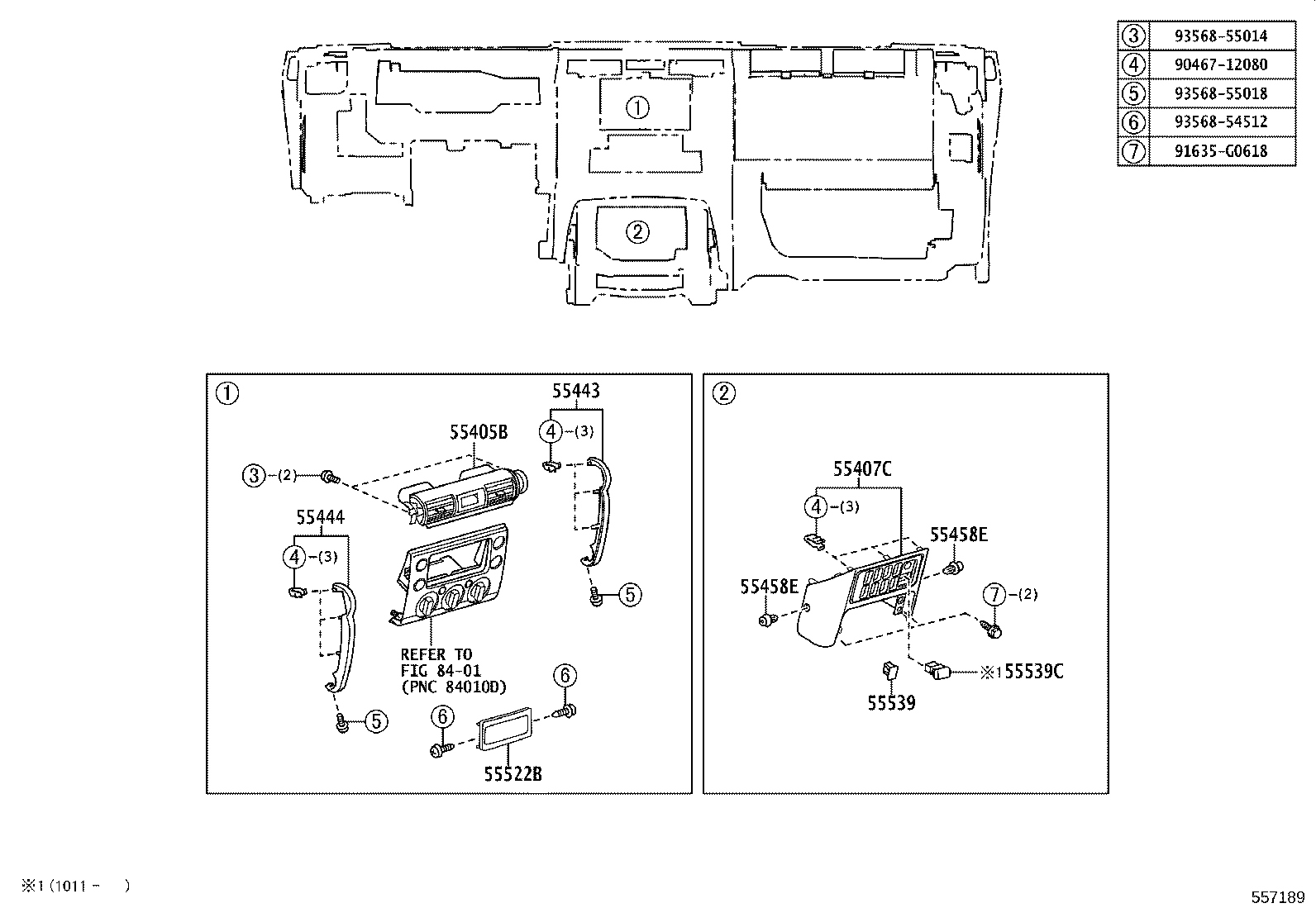

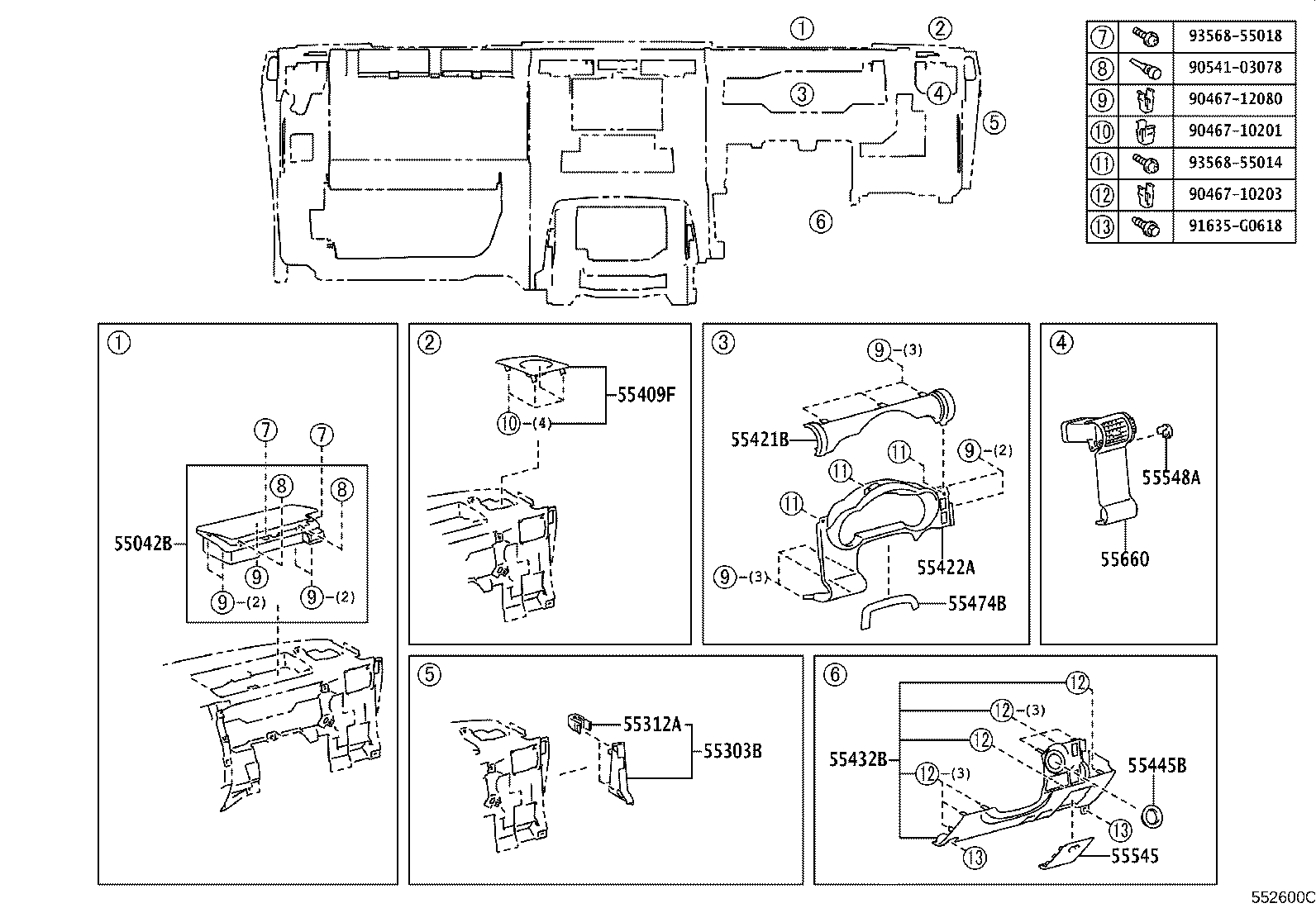

Instrument Panel & Glove Compartment
50 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55042B | Door Sub-assy, Instrument Panel Box, NO.2 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306C | Reinforcement Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55314 | Retainer, Instrument Panel Side |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55347A | Bracket, Instrument Panel Brace Mounting, NO.1 |
| 55355B | Plate, Instrument Panel, RH |
| 55356B | Plate, Instrument Panel, LH |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55443 | Garnish, Instrument Panel, RH |
| 55444 | Garnish, Instrument Panel, LH |
| 55445B | Plate, Instrument Panel Finish |
| 55458E | Clip(FOR INSTRUMENT LOWER COVER) |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55961B | Nozzle, Side Defroster, NO.1 |
| 55962B | Nozzle, Side Defroster, LH |
| 61165B | Bracket, Instrument Panel TO Cowl Side, RH |
| 61181 | Bracket, Instrument Panel Side |
| 61187B | Bracket, Instrument Panel Side, NO.4 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
