Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

9 part groups · 2 illustrations

Illustrations

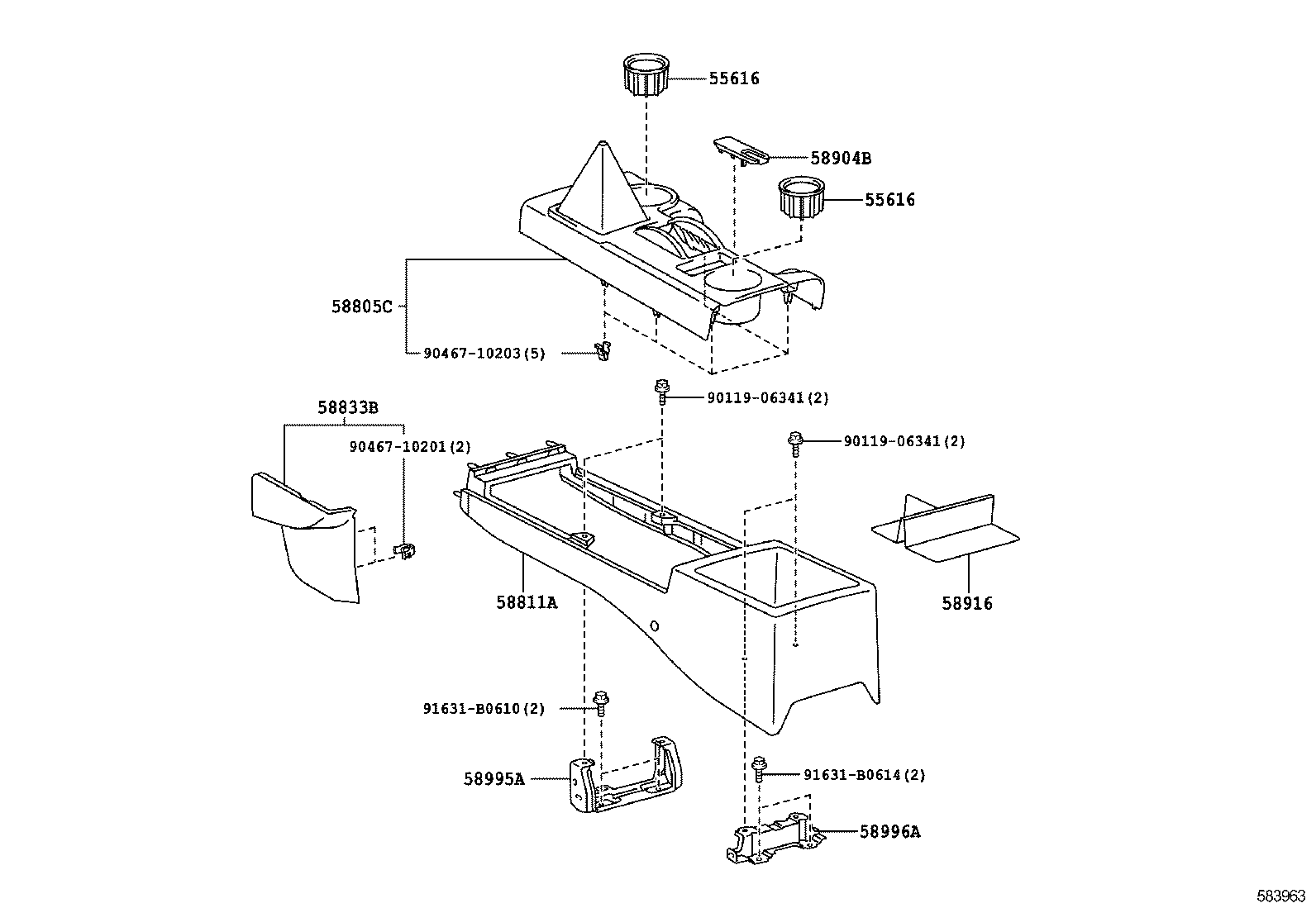

Figure 583092B 583092B 2007-07 → — Figure 583963 583963 2010-11 → —

Part groups

PNCDescription
55616 Damper, Instrument Panel Cup Holder
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58833B Garnish, Console Upper Panel, NO.1
58904B Cover Sub-assy, Parking Brake Hole
58916 Mat, Box Bottom
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
