Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11

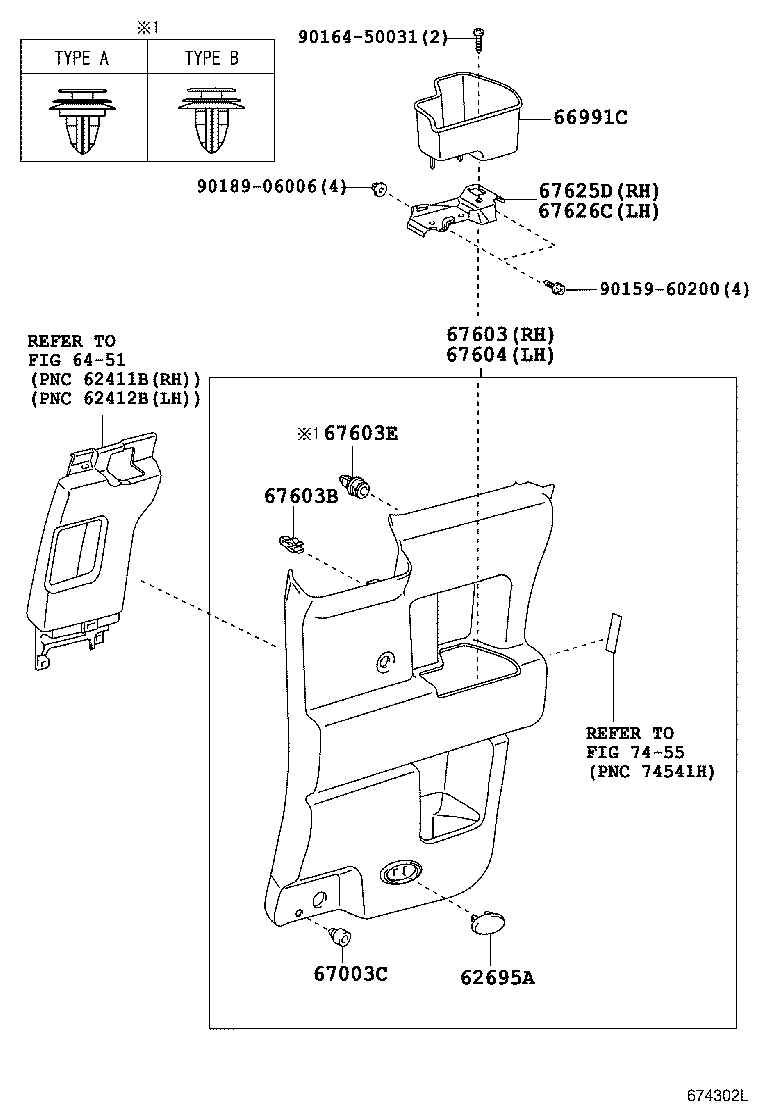

Rear Door Panel & Glass

39 part groups · 2 illustrations

PNC	Description
62695A	Stopper, Side Trim Cover
66991C	Holder, Cup, NO.1
67003	Panel Sub-assy, Rear Door, RH
67003C	Cushion, Rear Door Panel
67004	Panel Sub-assy, Rear Door, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67603	Board Sub-assy, Rear Door Trim, RH
67603B	Clip(FOR REAR DOOR TRIM BOARD)
67603E	Clip(FOR REAR DOOR TRIM BOARD)
67604	Board Sub-assy, Rear Door Trim, LH
67625D	Bracket, Rear Door Trim
67626C	Bracket, Rear Door Trim, NO.2
67715B	Pad, Rear Door Trim
67857B	Protector, Rear Door Panel, RH
67858B	Protector, Rear Door Panel, LH
67867B	Clip, Door Weatherstrip(FOR REAR DOOR)
67867D	Retainer, Rear Door Weatherstrip, RH
67867J	Clip, Door Weatherstrip, RH(FOR REAR DOOR)
67867K	Clip, Door Weatherstrip, LH(FOR REAR DOOR)
67868D	Retainer, Rear Door Weatherstrip, LH
67869L	Clip, Rear Door Weatherstrip
67871A	Retainer(FOR REAR DOOR WEATHERSTRIP)
67871F	Weatherstrip, Access Panel, RH
67872F	Weatherstrip, Access Panel, LH
67873D	Weatherstrip, Access Panel, Rear RH
67874D	Weatherstrip, Access Panel, Rear LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68163H	Weatherstrip, Rear Door Glass, Outer RH
68164A	Weatherstrip, Rear Door Glass, Outer LH
68630E	Check Assy, Access Panel, RH
68640E	Check Assy, Access Panel, LH
75931A	Tape, Black Out, Outer Upper RH
75932A	Tape, Black Out, Outer Upper LH
75933B	Tape, Black Out, Outer Front RH
75934B	Tape, Black Out, Outer Front LH
75935B	Tape, Black Out, Outer Rear RH
75936B	Tape, Black Out, Outer Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
