Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 3 illustrations

Illustrations

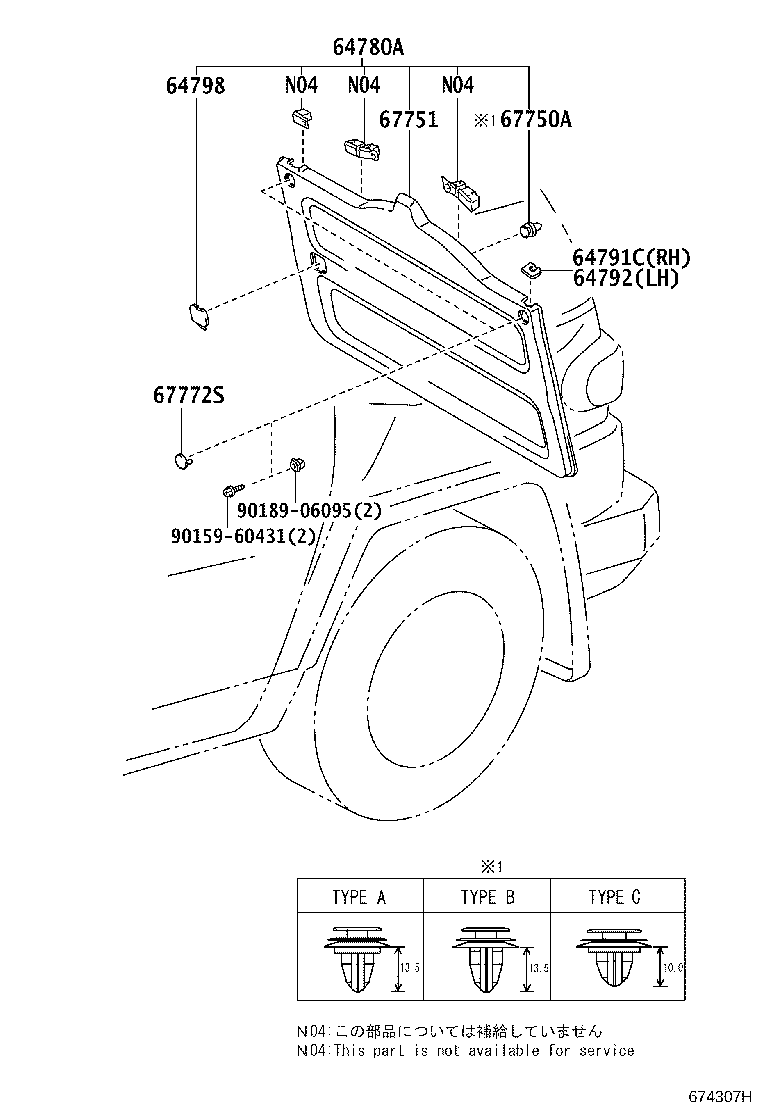

Figure 674308L 674308L 2007-07 → — Figure 674354C 674354C 2007-07 → — Figure 674307H 674307H 2007-07 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64798 Cover, Back Door Lock
67005 Panel Sub-assy, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67772S Cap, Door Trim Retainer
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67882C Weatherstrip, Back Door, NO.2
68131 Glass, Back Door
75397F Clip, Outside Moulding, NO.3
75495D Clip, Outside Moulding, NO.4
76801 Garnish Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
